Wired motorisation kit for roller shutter 20 kg - OCTO tube Ø 40 mm - 10 Nm

Warning: Switch not included in the kit.

This complete renovation kit is designed for the motorisation of a roller shutter with a maximum weight of 20 kg.

The wired motor, placed inside a 40 mm diameter telescopic octagonal tube, drives the curtain thanks to the clip-on fasteners for 8 mm slats provided in the kit.

The end stop adjustments, very easy, are done manually.

Safety, silence, and comfort are ensured.

We recommend using the WKH138 stops.

Calculation of curtain weight:
- Curtain weight = width x (height + 20 cm) x weight of slats per m²
- Weight of 8 mm slats: PVC = 4 kg/m², Foamed ALU = 4.5 kg/m², Extruded ALU = 7 kg/m², WOOD = 11 kg/m²

Dimensional limits:
• Traditional installation:
- Tube 1 only = opening width from 840 mm to 1,220 mm
- Tube 1 + tube 2 + tube 3 = opening width from 1,220 mm to 2,900 mm
• Renovation installation:
- Tube 1 only = opening width from 650 mm to 1,220 mm
- Tube 1 + tube 2 + tube 3 = opening width from 1,220 mm to 2,900 mm

Choice of fasteners:

- An 8 mm slat corresponds to a slat height of 30 to 45 mm (fasteners provided in the kit).
- A 14 mm slat corresponds to a slat height of 50 to 60 mm (use the WKH883C screw-on fasteners. Short screws provided in the kit).

Choice of switch:
- Surface-mounted wired switch = reference C0013200
- Recessed wired switch = reference C0013205

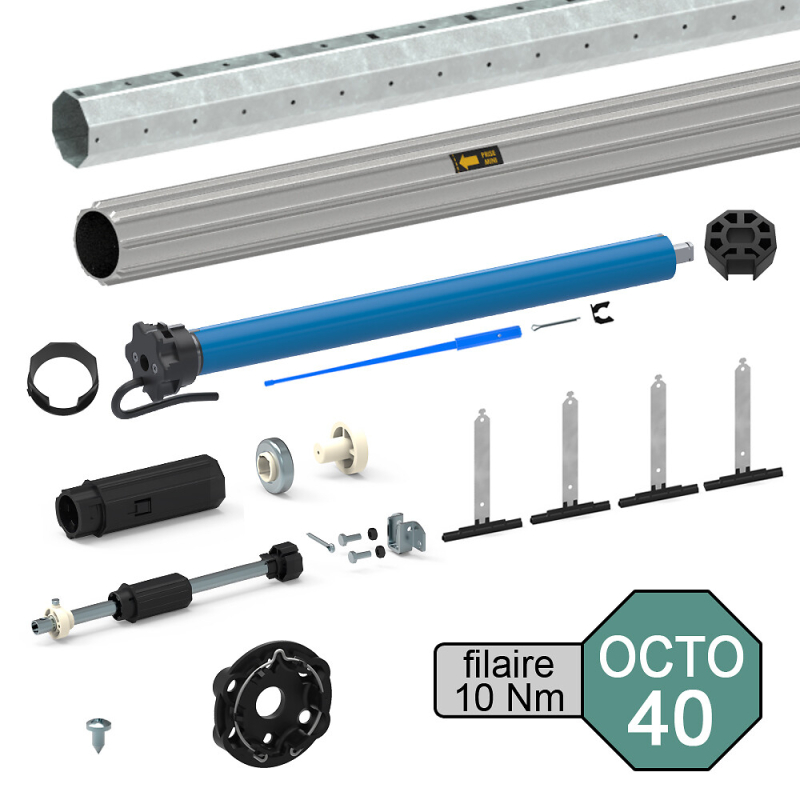

Kit contents:
- 1 wired motor Ø 35 mm 10 Nm (for roller shutters up to 20 kg)
- 1 cuttable telescopic octagonal tube Ø 40 mm
- 1 Ø 35 mm motor adapter kit for Ø 40 mm octagonal tube
- 1 wall bracket for star-head motor
- 4 clip-on fasteners for 8 mm slats (for 14 mm slats, use the WKH883C screw-on fasteners)
- 1 traditional type shaft end for Ø 40 mm octagonal tube + bracket
- 1 renovation type shaft end for Ø 40 mm octagonal tube female dog clutch + bearing
