Wired motorisation kit for roller shutter 20 kg - OCTO tube Ø 60 mm - 10 Nm

Attention: Switch not included in the kit.

This complete renovation kit is intended for the motorisation of a roller shutter with a maximum weight of 20 kg.

The wired motor, placed in a 60 mm diameter telescopic octagonal tube, drives the curtain thanks to the clip-on attachments for 8 mm slats provided in the kit.

The end-of-travel adjustments, very easy to make, are done manually.

Safety, silence and comfort are ensured.

We recommend using the WKH138 stops.

Calculation of the curtain weight:
- Curtain weight = width x (height + 20 cm) x weight of the slats per m²
- Weight of 8 mm slats: PVC = 4 kg/m², Foamed ALU = 4.5 kg/m², Extruded ALU = 7 kg/m², WOOD = 11 kg/m²

Dimensional limits:
• Traditional assembly:
- Tube 1 only = opening width from 680 mm to 1,600 mm
- Tube 1 + tube 2 = opening width from 1,600 mm to 2,900 mm
• Renovation assembly:
- Tube 1 only = opening width from 680 mm to 1,560 mm
- Tube 1 + tube 2 = opening width from 1,560 mm to 2,860 mm

Choice of attachments:

- An 8 mm slat corresponds to a slat height of 30 to 45 mm (attachments provided in the kit).
- A 14 mm slat corresponds to a slat height of 50 to 60 mm (use the WKH883C screw-on attachments. Short screws provided in the kit).

Choice of switch:
- Wired surface-mounted switch = reference C0013200
- Wired flush-mounted switch = reference C0013205

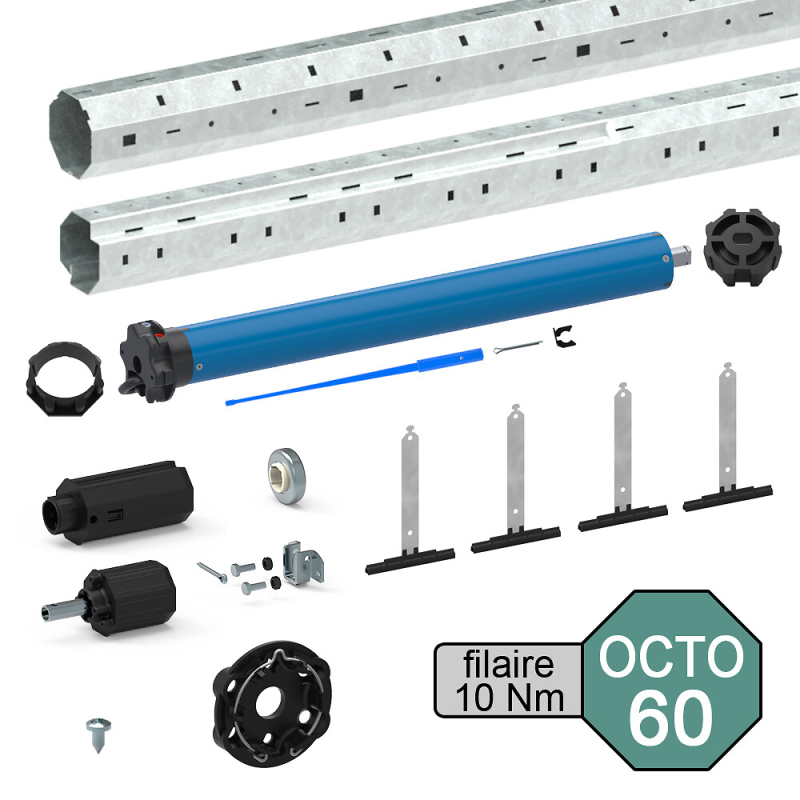

Kit contents:
- 1 wired motor Ø 45 mm 10 Nm (for roller shutters up to 20 kg max)
- 1 cuttable telescopic octagonal tube Ø 60 mm
- 1 Ø 45 mm motor adapter kit for Ø 60 mm octagonal tube
- 1 wall bracket for star-head motor
- 4 clip-on attachments for 8 mm slats (for 14 mm slats, use the WKH883C screw-on attachments. Short screws provided in the kit).
- 1 traditional type axle end for Ø 60 mm octagonal tube + bracket
- 1 renovation type axle end for Ø 60 mm octagonal tube female dog clutch + bearing
