Wired motorisation kit for roller shutter 20 kg - ZF tube Ø 54 mm - 10 Nm
Reference : W0002750
- Motorisation kit with ZF tube Ø 54 mm
- Wired motorisation (without switch)
- Surface-mounted or flush-mounted switch optional
- Motor torque: 10 Nm
- Shutter lifting capacity: max 20 kg
- Bay width: from 602 mm to 1,600 mm
- Limit switch adjustment: manual
- Warranty: 2 years
In stock
Delivery in 3 to 5 days
€123.81
Tax included
€105.24
Tax included
Description
Warning: Switch not included in the kit.
This complete renovation kit is designed for the motorisation of a roller shutter weighing up to 20 kg.
The wired motor, placed inside a 54 mm diameter ZF tube, drives the curtain thanks to the clip-on attachments for 8 mm slats included in the kit.
The adjustment of the end stops, which is very easy, is done manually.
Safety, silence, and comfort are ensured.
We recommend using the WKH138 stops.
Calculation of the curtain weight:
- Curtain weight = width x (height + 20 cm) x weight of slats per m²
- Weight of 8 mm slats: PVC = 4 kg/m², Foamed ALU = 4.5 kg/m², Extruded ALU = 7 kg/m², WOOD = 11 kg/m²
Dimensional limits:
• Traditional installation:
- Tube 1 only = bay width from 602 mm to 1,600 mm
• Renovation installation:
- Tube 1 only = bay width from 642 mm to 1,570 mm
Choice of attachments:
- An 8 mm slat corresponds to a slat height of 30 to 45 mm (attachments included in the kit).
- A 14 mm slat corresponds to a slat height of 50 to 60 mm (use WKH881A attachments).
Choice of switch:
- Wired surface-mounted switch = reference C0013200
- Wired flush-mounted switch = reference C0013205

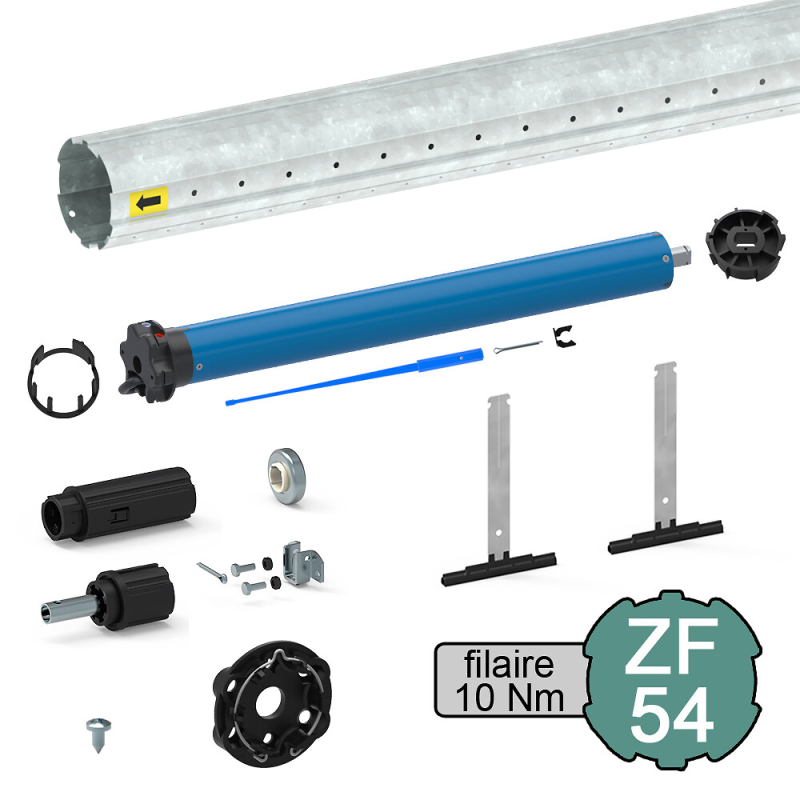

Kit contents:
- 1 wired motor Ø 45 mm 10 Nm (for roller shutters up to 20 kg)
- 1 steel ZF tube Ø 54 mm
- 1 motor adapter kit Ø 45 mm for ZF tube Ø 54 mm
- 1 wall mount for star-head motor
- 2 clip-on attachments for 8 mm slats (for 14 mm slats, use WKH881A attachments)
- 1 traditional type shaft end for ZF tube Ø 54 mm + support
- 1 renovation type shaft end for ZF tube Ø 54 mm with female dog clutch + bearing
This complete renovation kit is designed for the motorisation of a roller shutter weighing up to 20 kg.
The wired motor, placed inside a 54 mm diameter ZF tube, drives the curtain thanks to the clip-on attachments for 8 mm slats included in the kit.
The adjustment of the end stops, which is very easy, is done manually.
Safety, silence, and comfort are ensured.
We recommend using the WKH138 stops.
Calculation of the curtain weight:
- Curtain weight = width x (height + 20 cm) x weight of slats per m²
- Weight of 8 mm slats: PVC = 4 kg/m², Foamed ALU = 4.5 kg/m², Extruded ALU = 7 kg/m², WOOD = 11 kg/m²
Dimensional limits:
• Traditional installation:
- Tube 1 only = bay width from 602 mm to 1,600 mm
• Renovation installation:
- Tube 1 only = bay width from 642 mm to 1,570 mm
Choice of attachments:
- An 8 mm slat corresponds to a slat height of 30 to 45 mm (attachments included in the kit).
- A 14 mm slat corresponds to a slat height of 50 to 60 mm (use WKH881A attachments).
Choice of switch:
- Wired surface-mounted switch = reference C0013200
- Wired flush-mounted switch = reference C0013205
Kit contents:
- 1 wired motor Ø 45 mm 10 Nm (for roller shutters up to 20 kg)
- 1 steel ZF tube Ø 54 mm
- 1 motor adapter kit Ø 45 mm for ZF tube Ø 54 mm
- 1 wall mount for star-head motor
- 2 clip-on attachments for 8 mm slats (for 14 mm slats, use WKH881A attachments)
- 1 traditional type shaft end for ZF tube Ø 54 mm + support
- 1 renovation type shaft end for ZF tube Ø 54 mm with female dog clutch + bearing
Technical documentation
Installation instructions
Made for you
From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.
Brand
Data Sheet
| Use / Application | Rolling shutter |
|---|---|
| B2B guarantee | 2 ans |
| B2C warranty | 2 years |
| Blade thickness | 8 mm |
| Activity | Doors |
| Control type | Wired |
| Material | Galvanized steel |
| Maximum power | 112 W |
| Maximum roller shutter weight | 20 kg |
| Motor torque | 10 Nm |
| Motor type | Tubular |
| Motor voltage | 230 V CC |
| Mounting type |
Renovation Traditional |
| Made in | France |
| Product family | Motorization kit |
| Protection class | IP44 |
| Rotation speed | 15 rpm |
| Supply voltage | 230 V CA |
| Type of tube | ZF - 54 mm |
| Type of tube (mm) - Motor torque (Nm) | ZF 54 - 10 Nm |
| Brand | SLID'UP by Mantion |
