Wired motorisation kit for roller shutter 40 kg - ZF tube Ø 54 mm - 20 Nm
Reference : W0002760
- Motorisation kit with ZF Ø 54 mm tube
- Wired motorisation (without switch)
- Surface-mounted or flush switch optional
- Motor torque: 20 Nm
- Slat lifting capacity: max 40 kg
- Opening width: from 1,600 mm to 2,400 mm
- End stop adjustment: manual
- Warranty: 2 years
In stock
Delivery in 3 to 5 days
€156.65
Tax included
€133.15
Tax included
Description
Attention: Switch not included in the kit.
This complete renovation kit is designed for the motorisation of a roller shutter of 40 kg maximum.
The wired motor, placed in a 54 mm diameter telescopic ZF tube, drives the curtain thanks to the clip-on fasteners for 8 mm slats provided in the kit.
The adjustment of the end stops, very easy, is done manually.
Safety, silence and comfort are ensured.
We recommend using the WKH138 stops.
Calculation of the curtain weight:
- Curtain weight = width x (height + 20 cm) x weight of the slats per m²
- Weight of 8 mm slats: PVC = 4 kg/m², Foamed ALU = 4.5 kg/m², Extruded ALU = 7 kg/m², WOOD = 11 kg/m²
Dimensional limits:
• Traditional assembly:
- Tube 1 + tube 2 = bay width from 1,600 mm to 2,400 mm
• Renovation assembly:
- Tube 1 + tube 2 = bay width from 1,560 mm to 2,360 mm
Choice of fasteners:
- An 8 mm slat corresponds to a slat height of 30 to 45 mm (fasteners provided in the kit).
- A 14 mm slat corresponds to a slat height of 50 to 60 mm (use the WKH881A fasteners).
Choice of switch:
- Surface-mounted wired switch = reference C0013200
- Flush-mounted wired switch = reference C0013205

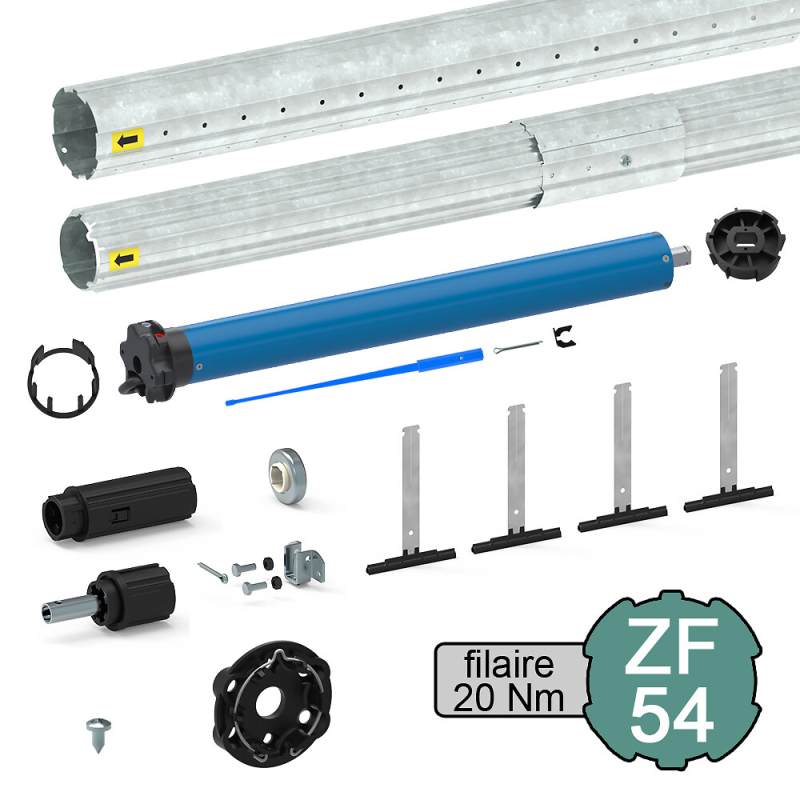

Kit contents:
- 1 wired motor Ø 45 mm 20 Nm (for roller shutter up to 40 kg)
- 1 cuttable telescopic ZF tube Ø 54 mm
- 1 motor adapter kit Ø 45 mm for ZF tube Ø 54 mm
- 1 wall bracket for star-head motor
- 4 clip-on fasteners for 8 mm slats (for 14 mm slats, use the WKH881A fasteners)
- 1 traditional type shaft end for ZF tube Ø 54 mm + bracket
- 1 renovation type shaft end for ZF tube Ø 54 mm female dog clutch + bearing
This complete renovation kit is designed for the motorisation of a roller shutter of 40 kg maximum.
The wired motor, placed in a 54 mm diameter telescopic ZF tube, drives the curtain thanks to the clip-on fasteners for 8 mm slats provided in the kit.
The adjustment of the end stops, very easy, is done manually.
Safety, silence and comfort are ensured.
We recommend using the WKH138 stops.
Calculation of the curtain weight:
- Curtain weight = width x (height + 20 cm) x weight of the slats per m²
- Weight of 8 mm slats: PVC = 4 kg/m², Foamed ALU = 4.5 kg/m², Extruded ALU = 7 kg/m², WOOD = 11 kg/m²
Dimensional limits:
• Traditional assembly:
- Tube 1 + tube 2 = bay width from 1,600 mm to 2,400 mm
• Renovation assembly:
- Tube 1 + tube 2 = bay width from 1,560 mm to 2,360 mm
Choice of fasteners:
- An 8 mm slat corresponds to a slat height of 30 to 45 mm (fasteners provided in the kit).
- A 14 mm slat corresponds to a slat height of 50 to 60 mm (use the WKH881A fasteners).
Choice of switch:
- Surface-mounted wired switch = reference C0013200
- Flush-mounted wired switch = reference C0013205
Kit contents:
- 1 wired motor Ø 45 mm 20 Nm (for roller shutter up to 40 kg)
- 1 cuttable telescopic ZF tube Ø 54 mm
- 1 motor adapter kit Ø 45 mm for ZF tube Ø 54 mm
- 1 wall bracket for star-head motor
- 4 clip-on fasteners for 8 mm slats (for 14 mm slats, use the WKH881A fasteners)
- 1 traditional type shaft end for ZF tube Ø 54 mm + bracket
- 1 renovation type shaft end for ZF tube Ø 54 mm female dog clutch + bearing
Technical documentation
Installation instructions
Made for you
From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.
Brand
Data Sheet
| Use / Application | Rolling shutter |
|---|---|
| B2B guarantee | 2 ans |
| B2C warranty | 2 years |
| Blade thickness | 8 mm |
| Activity | Doors |
| Control type | Wired |
| Material | Galvanized steel |
| Maximum power | 145 W |
| Maximum roller shutter weight | 40 kg |
| Motor torque | 20 Nm |
| Motor type | Tubular |
| Motor voltage | 230 V CC |
| Mounting type |
Renovation Traditional |
| Made in | France |
| Product family | Motorization kit |
| Protection class | IP44 |
| Rotation speed | 15 rpm |
| Supply voltage | 230 V CA |
| Type of tube | ZF - 54 mm |
| Type of tube (mm) - Motor torque (Nm) | ZF 54 - 20 Nm |
| Brand | SLID'UP by Mantion |
