Universal repair kit for box-type roller shutter
Reference : WJ301MA
- Universal kit for block bay type roller shutter
- Allows repair of the tulipage of a block bay
- Allows repair of the shaft support
- Allows conversion of the manual shaft support to motorised
- Warranty: 2 years
- Quantity: 1
In stock
Delivery in 3 to 5 days
€51.23
Tax included
Description
Universal kit for repairing or modernising the majority of market-standard block-box type roller shutters. It is a solution for older installed block-boxes that are no longer sold.
Simplified installation:
✓ Few or no screws = held in the box by pressure.
✓ 4 independent adjustment feet that facilitate system integration in block-boxes that are not always straight (curved boards and no smooth surface inside).
✓ Depth system adjustment (adjustment screw).
✓ Elastomer feet that ensure system retention in the box.
✓ A versatile flange that can accommodate several interfaces (manual or motorised operation).
✓ Two-part tulip that can accommodate slats from 8 mm to 14 mm.
✓ An adaptor piece that can receive different supports (bearing or Ø28 roller).
Technical data:
- Height (internal box dimensions): from 140 to 195 mm
- Compatible motors: star-head motors
- Maximum slat weight: 20 kg max
- Recommended motor torque:
• 10 Nm max with mechanical end stops
• 20 Nm max with electronic end stops

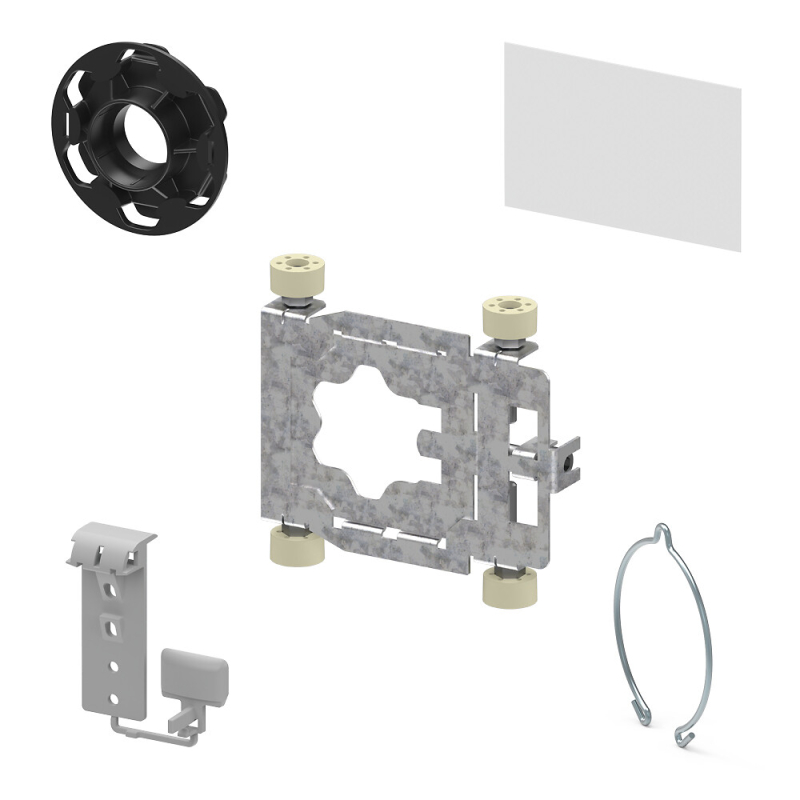

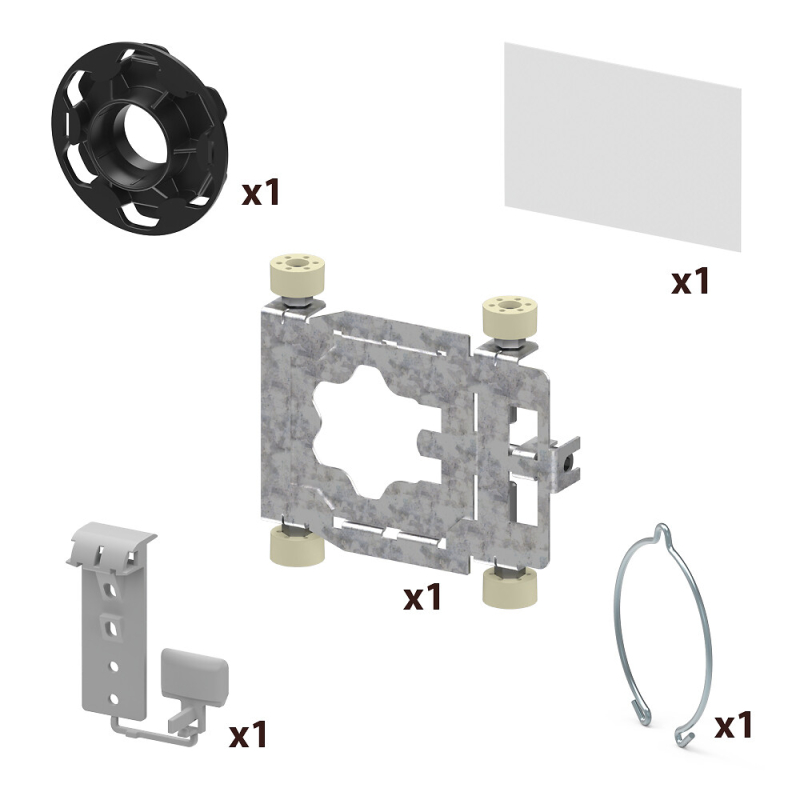

Kit contents:
- 1 versatile universal bracket
- 1 reversible universal tulip
- 1 clip-on bearing support
- 1 stop ring for support and motor
- 1 adhesive pad
Interactive video:
Video presentation
Made for you
En partenariat avec SLID'UP by Mantion, le fabricant Français ZF vous propose un large choix de pièces détachées pour volet roulant.
Brand
Data Sheet
| Use / Application | Rolling shutter |
|---|---|
| B2B guarantee | 2 ans |
| B2C warranty | 2 years |
| Activity | Doors |
| Made in | France |
| Product family | Support |
| Brand | ZF |
Guaranteed quality
SLID'UP by Mantion guarantees all its sliding systems for 5 years and its motors for 2 years.
Fast delivery
Delivery of in-stock products is guaranteed within 3 to 5 days to your home. Shipping is carried out from our company located in France.
Secure payment
Online payment for your orders is fully secured by credit card, 4x installment with no fees, PayPal, check, or bank transfer.
