Radio motorisation kit for roller shutter 20 kg - OCTO tube Ø 60 mm - 10 Nm

This complete renovation kit is designed for motorising a roller shutter of up to 20 kg.

The radio motor, placed in a 60 mm diameter telescopic octagonal tube, drives the curtain thanks to the clip-on fasteners for 8 mm or 14 mm slats supplied in the kit.

It is controlled by a 3-button radio remote control also included in the kit.

The limit switches are adjusted automatically by learning.

Safety, silence and comfort are ensured.

We recommend using the WKH138 stops.

Calculation of the curtain weight:
- Curtain weight = width x (height + 20 cm) x weight of slats per m²
- Weight of 8 mm slats: PVC = 4 kg/m², Foamed ALU = 4.5 kg/m², Extruded ALU = 7 kg/m², WOOD = 11 kg/m²

Dimensional limits:
• Traditional assembly:
- Tube 1 only = opening width from 740 mm to 1,600 mm
- Tube 1 + tube 2 = opening width from 1,600 mm to 2,890 mm
• Renovation assembly:
- Tube 1 only = opening width from 740 mm to 1,560 mm
- Tube 1 + tube 2 = opening width from 1,560 mm to 2,858 mm

Choice of fasteners:

- An 8 mm slat corresponds to a slat height of 30 to 45 mm (fasteners supplied in the kit).
- A 14 mm slat corresponds to a slat height of 50 to 60 mm (removable profiles supplied in the kit).

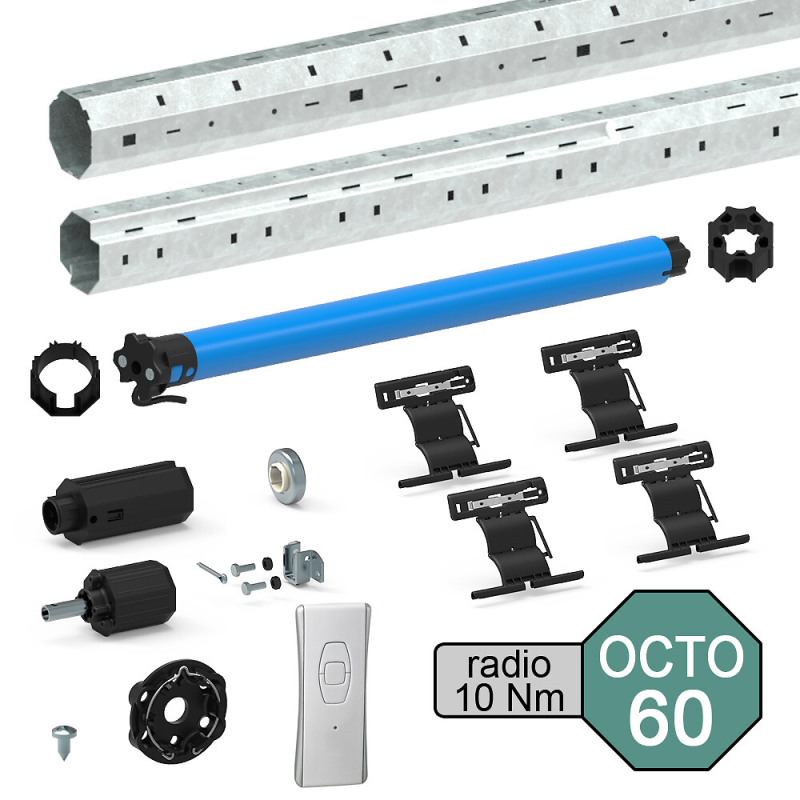

Kit contents:
- 1 radio motor Ø 45 mm 10 Nm (for roller shutters up to 20 kg)
- 1 cuttable telescopic octagonal tube Ø 60 mm
- 1 Ø 45 mm motor adapter kit for Ø 60 mm octagonal tube
- 1 clip-on Somfy bracket for radio motor up to 30 Nm
- 1 3-button radio remote control
- 4 clip-on fasteners for 8 mm slats (for 14 mm slats, use the removable profiles supplied in the kit)
- 1 traditional type shaft end for Ø 60 mm octagonal tube + bracket
- 1 renovation type shaft end for Ø 60 mm octagonal tube female dog clutch + bearing
