Radio motorisation kit for roller shutter 20 kg - OCTO tube Ø 40 mm - 9 Nm

This complete renovation kit is designed for the motorisation of a roller shutter weighing up to 20 kg.

The radio motor, placed inside a 40 mm diameter telescopic octagonal tube, drives the curtain using the clip-on attachments for 8 mm or 14 mm slats provided in the kit.

For 14 mm slats, use the removable profiles supplied in the kit.

It is controlled by a 3-button radio remote control also included in the kit.

The end stops are set automatically by learning.

Safety, silence, and comfort are ensured.

We recommend using the WKH138 stops.

Calculation of the curtain weight:
- Curtain weight = width x (height + 20 cm) x weight of slats per m²
- Weight of 8 mm slats: PVC = 4 kg/m², Foamed ALU = 4.5 kg/m², Extruded ALU = 7 kg/m², WOOD = 11 kg/m²

Dimensional limits:
• Traditional assembly:
- Tube 1 only = opening width from 840 mm to 1,220 mm
- Tube 1 + tube 2 + tube 3 = opening width from 1,220 mm to 2,900 mm
• Renovation assembly:
- Tube 1 only = opening width from 650 mm to 1,220 mm
- Tube 1 + tube 2 + tube 3 = opening width from 1,220 mm to 2,900 mm

Choice of attachments:

- An 8 mm slat corresponds to a slat height of 30 to 45 mm (attachments provided in the kit).
- A 14 mm slat corresponds to a slat height of 50 to 60 mm (removable profiles provided in the kit).

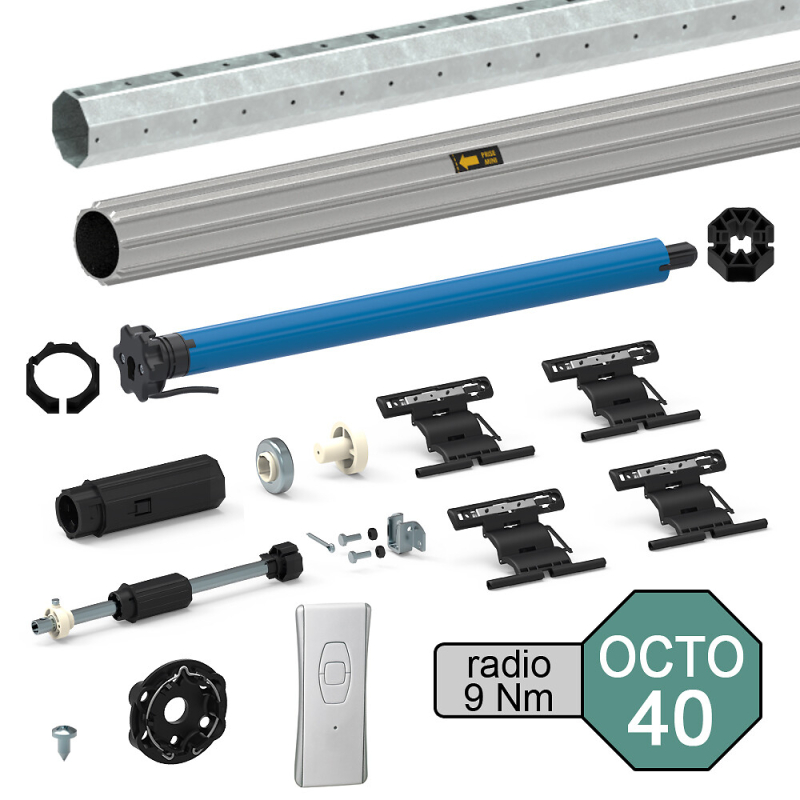

Kit contents:
- 1 radio motor Ø 35 mm 9 Nm (for roller shutters up to 20 kg)
- 1 cuttable telescopic octagonal tube Ø 40 mm
- 1 motor adapter kit Ø 35 mm for octagonal tube Ø 40 mm
- 1 clip-on Somfy bracket for radio motors up to 30 Nm
- 1 3-button radio remote control
- 4 clip-on attachments for 8 mm slats (for 14 mm slats, use the removable profiles provided in the kit)
- 1 reinforced traditional type shaft end for octagonal tube Ø 40 mm + bracket
- 1 reinforced renovation type shaft end for octagonal tube Ø 40 mm female dog clutch + bearing
