Radio motorisation kit for roller shutter 40 kg - OCTO tube Ø 60 mm - 20 Nm

This complete renovation kit is designed for the motorisation of a roller shutter with a maximum weight of 40 kg.

The radio motor, placed inside a 60 mm diameter telescopic octagonal tube, drives the curtain thanks to the clip-on attachments for 8 mm or 14 mm slats provided in the kit.

For 14 mm slats, use the removable profiles supplied in the kit.

It is controlled by a 3-button radio remote control also supplied in the kit.

The limit switches are set automatically by learning.

Safety, silence, and comfort are ensured.

We recommend using the WKH138 stops.

Calculation of the curtain weight:
- Curtain weight = width x (height + 20 cm) x weight of slats per m²
- Weight of 8 mm slats: PVC = 4 kg/m², Foamed ALU = 4.5 kg/m², Extruded ALU = 7 kg/m², WOOD = 11 kg/m²

Dimensional limits:
• Traditional installation:
- Tube 1 only = bay width from 790 mm to 1,600 mm
- Tube 1 + tube 2 = bay width from 1,600 mm to 2,890 mm
• Renovation installation:
- Tube 1 only = bay width from 790 mm to 1,560 mm
- Tube 1 + tube 2 = bay width from 1,560 mm to 2,858 mm

Choice of attachments:

- An 8 mm slat corresponds to a slat height of 30 to 45 mm (attachments provided in the kit).
- A 14 mm slat corresponds to a slat height of 50 to 60 mm (removable profiles provided in the kit).

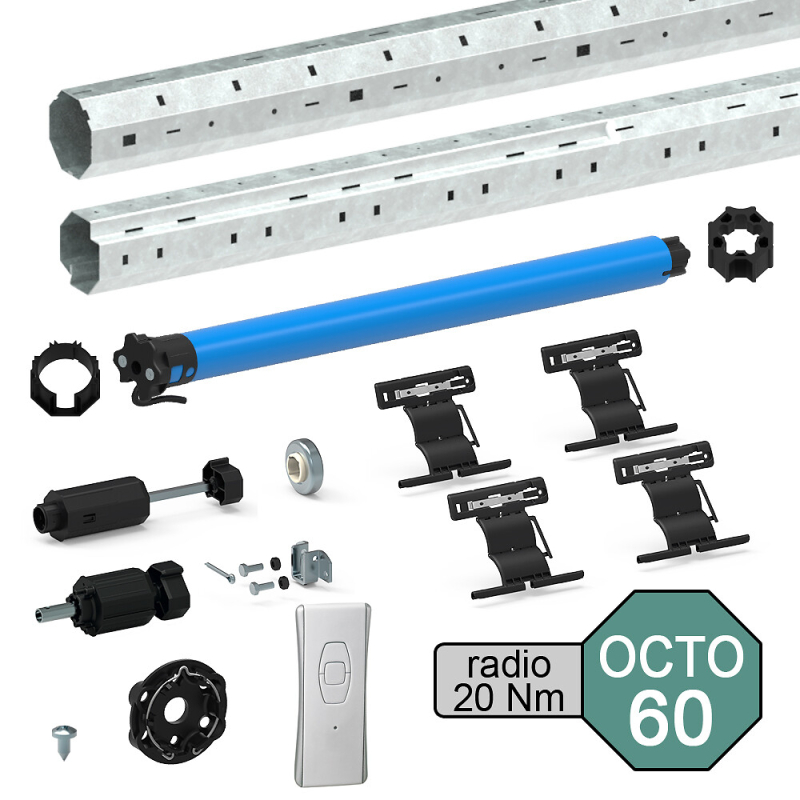

Kit contents:
- 1 radio motor Ø 45 mm 20 Nm (for roller shutters up to 40 kg max)
- 1 cuttable telescopic octagonal tube Ø 60 mm
- 1 Ø 45 mm motor adapter kit for Ø 60 mm octagonal tube
- 1 clip-on Somfy bracket for radio motor up to 30 Nm
- 1 3-button radio remote control
- 4 clip-on attachments for 8 mm slats (for 14 mm slats, use the removable profiles provided in the kit)
- 1 reinforced traditional type shaft end for Ø 60 mm octagonal tube + bracket
- 1 reinforced renovation type shaft end for Ø 60 mm octagonal tube female dog clutch + bearing
