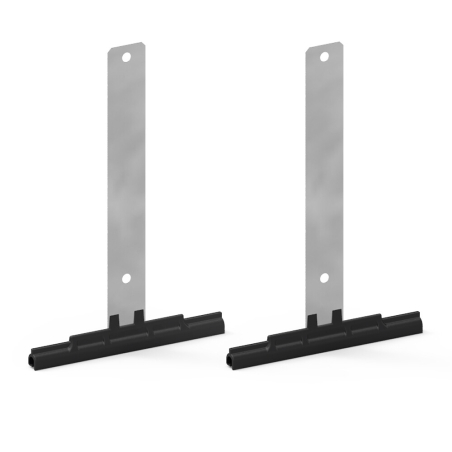

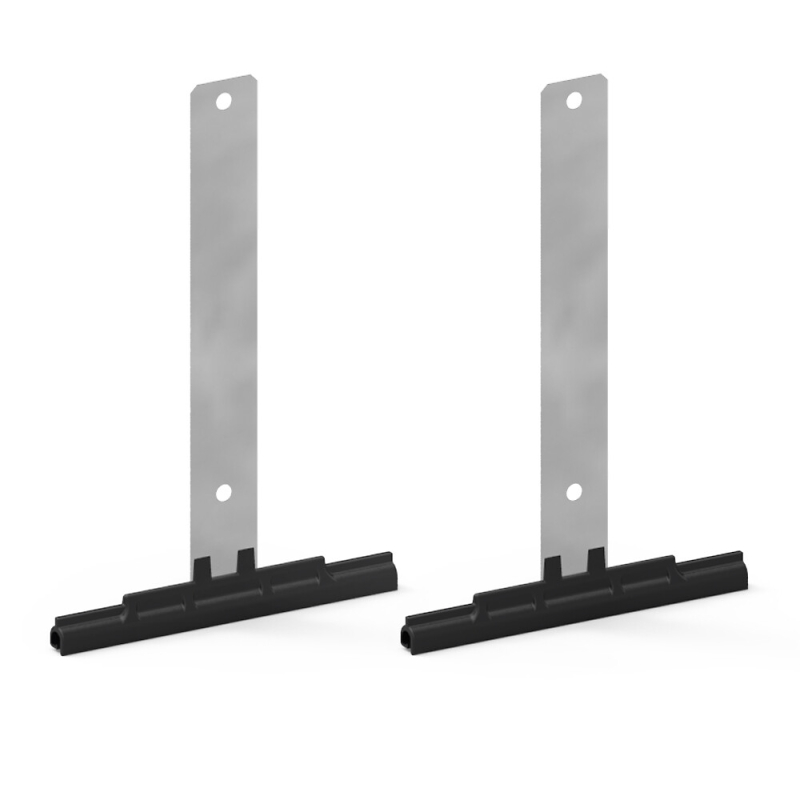

Screw-on apron clip for 14 mm blade
Reference : WKH883C
- Flexible apron clip to screw on
- For 14 mm slat
- For all types of tubes
- Lifting capacity: 5 kg per clip
- Quantity: 2
In stock
Delivery in 3 to 5 days
€4.60
Tax included
Description
Warning: There are many different sizes. Please carefully check your measurements using the diagrams before placing your order.
This flexible attachment allows the curtain to connect to the winding tube.
Universal fixing by screw.
Attachment suitable for 14 mm slats.
Plan for one attachment every 50 cm (minimum two attachments).
Lifting capacity: 5 kg per attachment.
=> Choose the curtain attachment according to the slat:
- An 8 mm slat corresponds to a slat height of 30 to 45 mm.
- A 14 mm slat corresponds to a slat height of 50 to 60 mm.
=> Usage recommendations:
- Locks and attachments fixed on the shaft should always be positioned at the ends closest to the guides (maximum 20 cm).
- It is recommended to have at least two curtain attachments: one attachment every 50 cm.
Technical documentation
Installation instructions
Made for you
En partenariat avec SLID'UP by Mantion, le fabricant Français ZF vous propose un large choix de pièces détachées pour volet roulant.
Brand
Data Sheet
| Use / Application | Rolling shutter |
|---|---|
| B2B guarantee | 2 ans |
| B2C warranty | 2 years |
| Blade thickness | 14 mm |
| Activity | Doors |
| Installation type | To screw |
| Lifting capacity / piece | 5 kg |
| Locking | Non |
| Made in | France |
| Type of tube |
OCTO - 40 mm OCTO - 60 mm OCTO - 70 mm ZF - 45 mm ZF - 54 mm ZF - 64 mm ZF - 80 mm |
| Brand | ZF |
