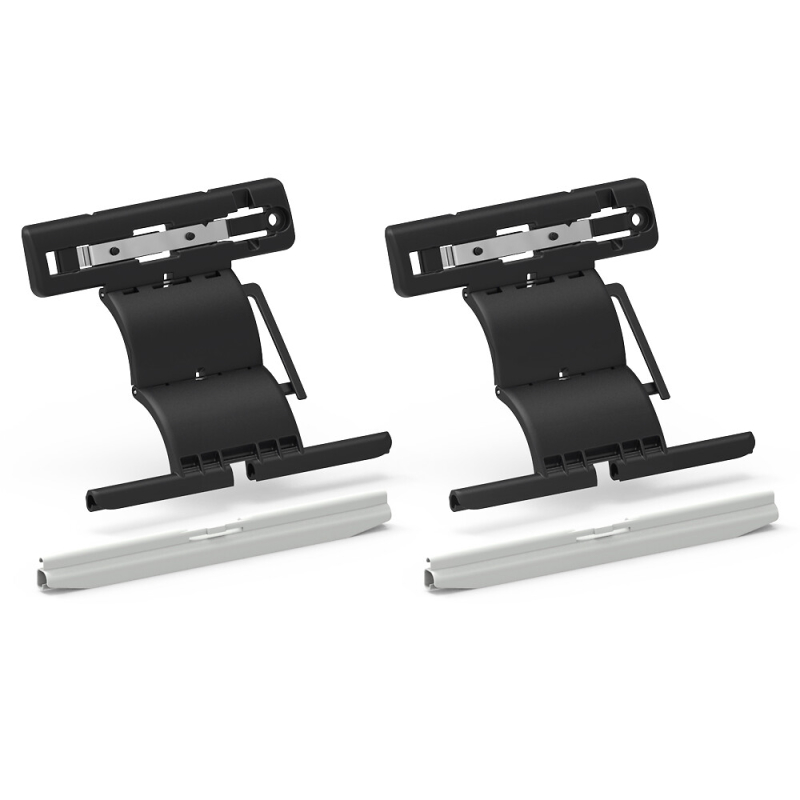

Clip-on locking fastener for octagonal tube, 2 links

Warning: There are many different sizes available. Please carefully check your measurements using the diagrams before placing your order.

Rigid 2-link attachment allowing the connection of the curtain to the octagonal tubes.
Ensures locking of the curtain in the lowered position with certain usage limits.
Suitable for box sizes up to 205 mm.
Clip-on fixing for octagonal tubes, other tubes fixed with screws or rivets.
Attachment suitable for 8 and 14 mm slats via the removable profile.
Provide one attachment every 80 cm (minimum two attachments).
The two end locks must be placed about 200 mm from the guide.
Lifting capacity: 7 kg per attachment.

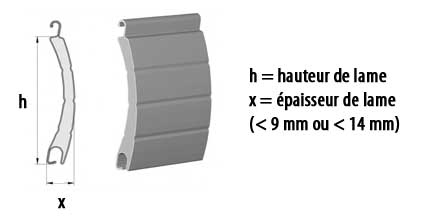

=> Choose the locking attachment according to the slat:



- An 8 mm slat corresponds to a slat height of 30 to 45 mm.
- A 14 mm slat corresponds to a slat height of 50 to 60 mm.

=> Usage recommendations:

- Locks and attachments fixed on the axis must always be positioned at the ends closest to the guides (maximum 20 cm).
- It is recommended to provide at least two locks on the curtain: one lock every 80 cm.
- Lock attachments are recommended for winch and motor operations.

In the case of motor operation: the use of motors with automatic limit switches is recommended.
Why? If the limit switches are poorly adjusted and depending on the motor power, this could cause the locks to break.
