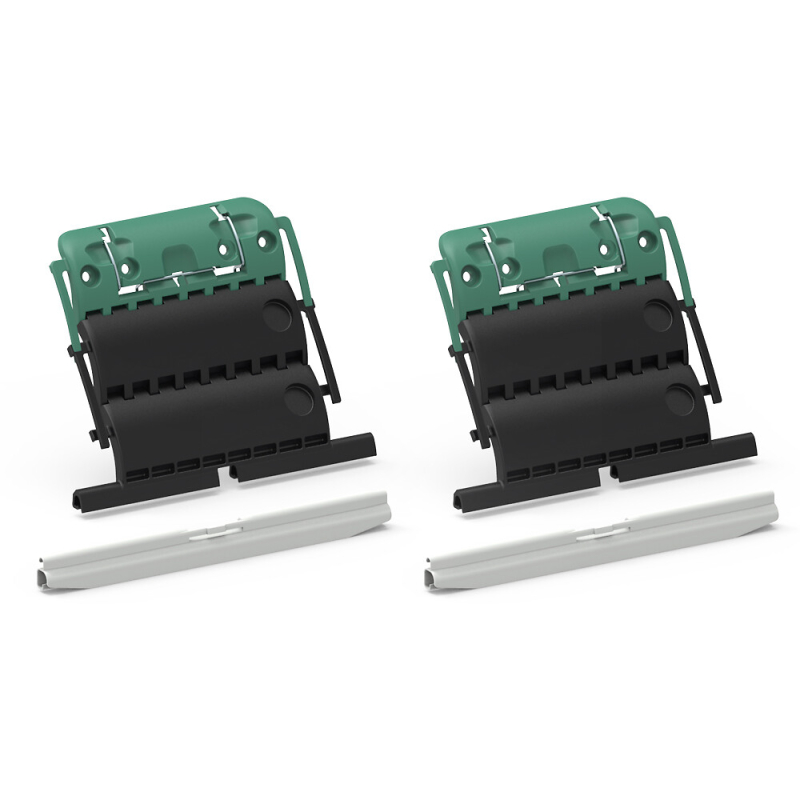

Locking clip for ZF 2-link tube

Warning: There are many different sizes. Please carefully check your measurements using the diagrams before placing your order.

Clicksur lock attachment with 2 links allowing the connection of the shutter curtain to the winding tube.
Ensures the locking of the curtain in the lowered position within certain usage limits.
Suitable for box sizes up to 230 mm.
Clip-on fixing for ZF tubes, other tubes fixed by screws or rivets.
Attachment suitable for roller shutter slats of 8 and 14 mm via the removable profile.
Plan for one attachment every 80 cm (minimum two attachments).
The two end locks must be placed approximately 200 mm from the guide.
Lifting capacity: 7 kg per attachment.

=> Choose the lock attachment according to the slat:



- An 8 mm slat corresponds to a slat height of 30 to 45 mm.
- A 14 mm slat corresponds to a slat height of 50 to 60 mm.

=> Usage recommendations:

- Locks and attachments fixed on the shaft should always be positioned at the ends closest to the guides (maximum 20 cm).
- It is recommended to provide a minimum of two curtain locks: one lock every 80 cm.
- Lock attachments are recommended for winch and motor operations.

In the case of motor operation: the use of motors with automatic limit switches is recommended.
Why? If the limit switches are poorly adjusted and depending on the motor's power, it could cause the locks to break.
