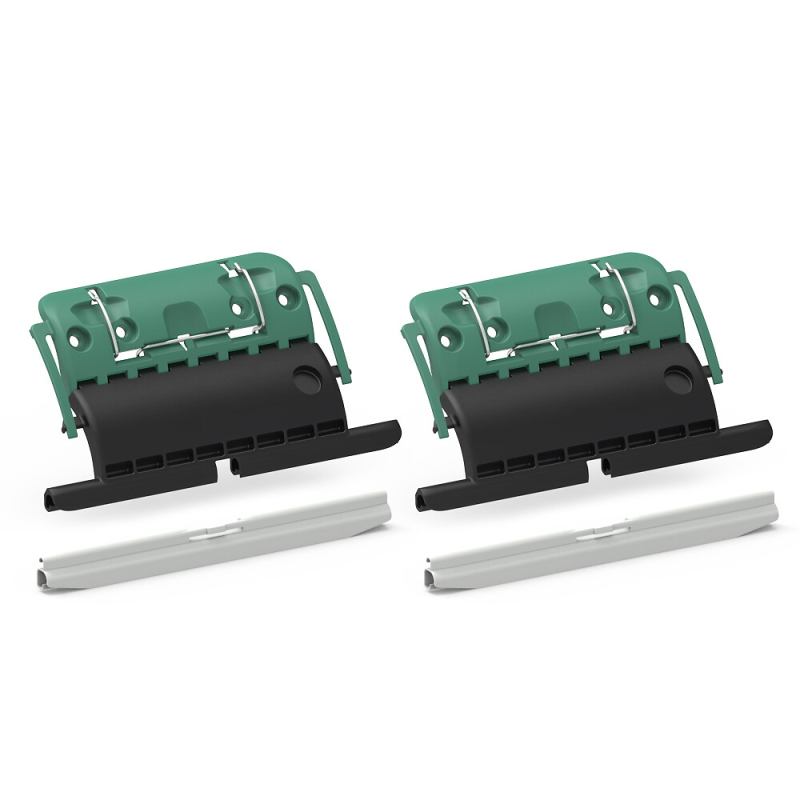

Locking clip for ZF 1 link tube

Warning: There are many different sizes. Please carefully check your measurements using the diagrams before placing your order.

Clicksur 1 link lock allowing the connection of the curtain to the winding tube.
Ensures locking of the curtain in the lowered position within certain usage limits.
Suitable for box sizes up to 150 mm.
Clip-on fastening for ZF tubes, other tubes fastened by screws or rivets.
Attachment suitable for roller shutter slats of 8 and 14 mm via the removable profile.
Provide one attachment every 80 cm (minimum two attachments).
The two end locks must be placed about 200 mm from the track.
Lifting capacity: 7 kg per attachment.

=> Choose the lock attachment according to the slat:



- An 8 mm slat corresponds to a slat height of 30 to 45 mm.
- A 14 mm slat corresponds to a slat height of 50 to 60 mm.

=> Usage recommendations:

- Locks and attachments fixed on the shaft must always be positioned at the ends closest to the tracks (maximum 20 cm).
- It is recommended to provide at least two locks on the curtain: one lock every 80 cm.
- Lock attachments are recommended for crank and motor operations.

In the case of motor operation: the use of motors with automatic end stops is recommended.
Why? If the end stops are poorly adjusted and depending on the motor power, it could cause the locks to break.
