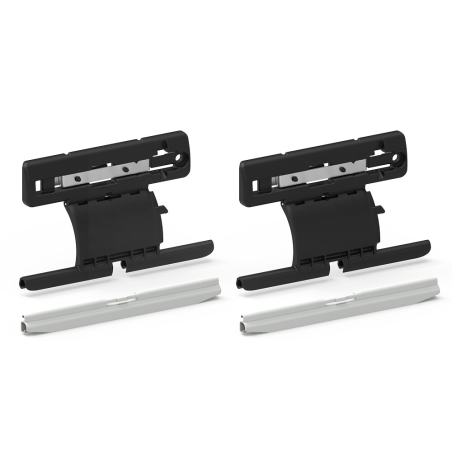

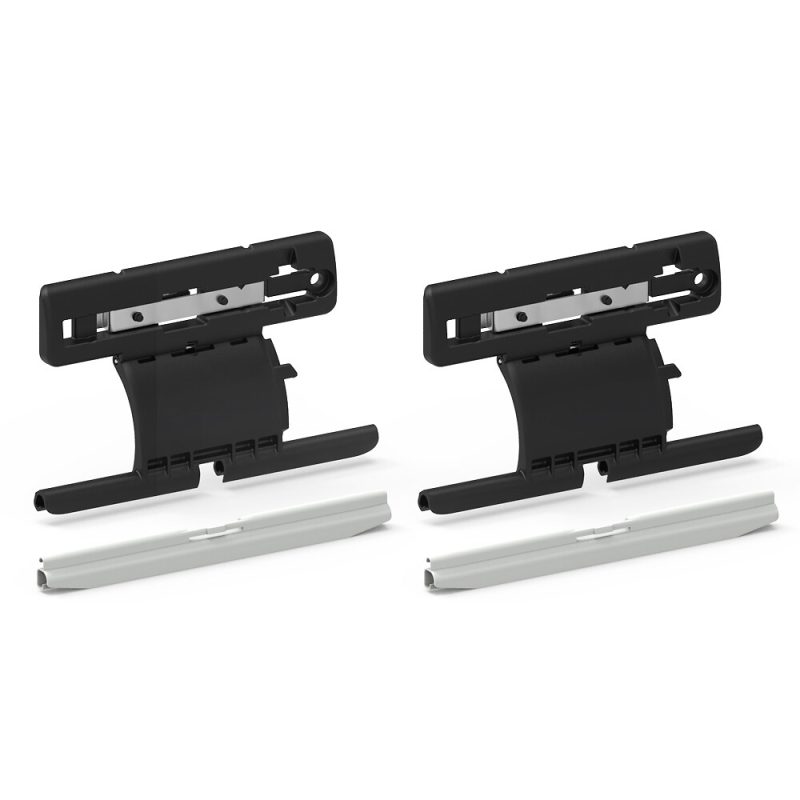

Clip-on locking attachment for 1-link octagonal tube

Warning: There are many different sizes available. Please carefully check your measurements using the diagrams before placing your order.

Rigid one-link attachment allowing the connection of the curtain to the octagonal tubes.
Ensures the locking of the curtain in the lowered position within certain usage limits.
Suitable for box sizes up to 165 mm.
Clip-on fixing for octagonal tubes, other tubes fixed by screws or rivets.
Attachment suitable for 8 and 14 mm slats via the removable profile.
Plan for one attachment every 80 cm (minimum two attachments).
The two end locks must be placed about 200 mm from the track.
Lifting capacity: 7 kg per attachment.

=> Choose the locking attachment according to the slat:



- An 8 mm slat corresponds to a slat height of 30 to 45 mm.
- A 14 mm slat corresponds to a slat height of 50 to 60 mm.

=> Usage recommendations:

- The locks and attachments fixed on the axis should always be positioned at the ends closest to the tracks (maximum 20 cm).
- It is recommended to have at least two locks on the curtain: one lock every 80 cm.
- Locking attachments are recommended for winch and motor operations.

In the case of motor operation: the use of motors with automatic end stops is recommended.
Why? If the end stops are poorly adjusted and depending on the motor power, it could cause the locks to break.
