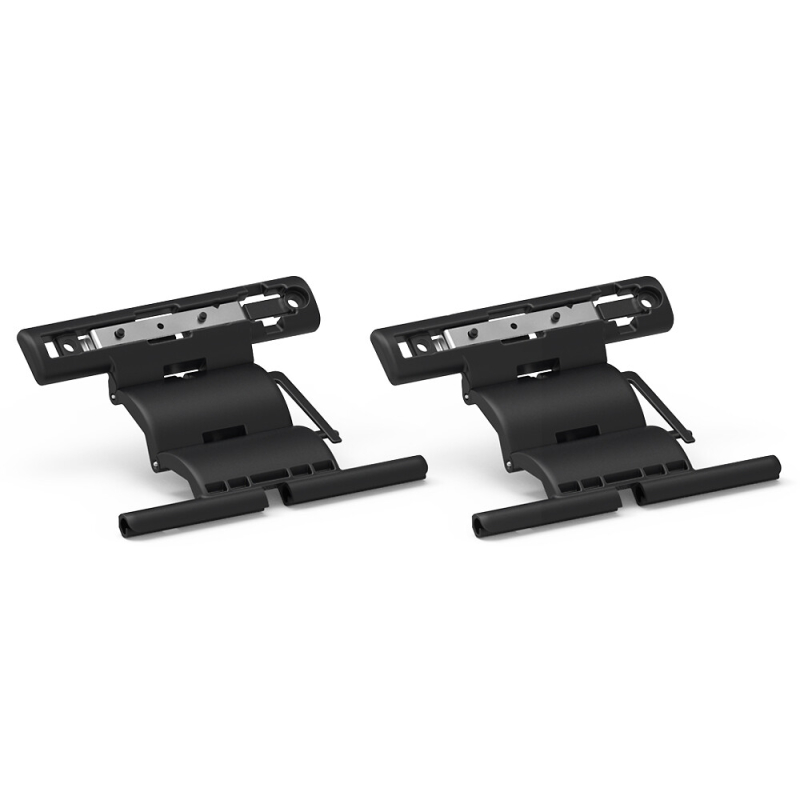

Clip-on locking attachment for 40 mm octagonal tube, 2 links

Warning: There are a multitude of different sizes. Please check your measurements carefully using the diagrams before placing your order.

Rigid 2-link attachment allowing the connection of the curtain to the 40 mm octagonal tracks.
Ensures locking of the curtain in the lowered position within certain usage limits.
Clip-on fastening for octagonal tracks, other tracks fastened by screws or rivets.
Attachment suitable for 8 mm slats.
Allow one attachment every 80 cm (minimum two attachments).
The two end locks must be placed approximately 200 mm from the track.
Lifting capacity: 7 kg per attachment.

=> Choose the lock attachment according to the slat:



- An 8 mm slat corresponds to a slat height of 30 to 45 mm.
- A 14 mm slat corresponds to a slat height of 50 to 60 mm.

=> Usage recommendations:

- Locks and attachments fixed on the axle must always be positioned at the ends closest to the tracks (maximum 20 cm).
- It is recommended to have at least two locks on the curtain: one lock every 80 cm.
- Lock attachments are recommended for winch and motor operations.

In the case of motor operation: the use of motors with automatic end stops is recommended.
Why? If the end stops are poorly adjusted and depending on the motor power, it could cause the locks to break.
