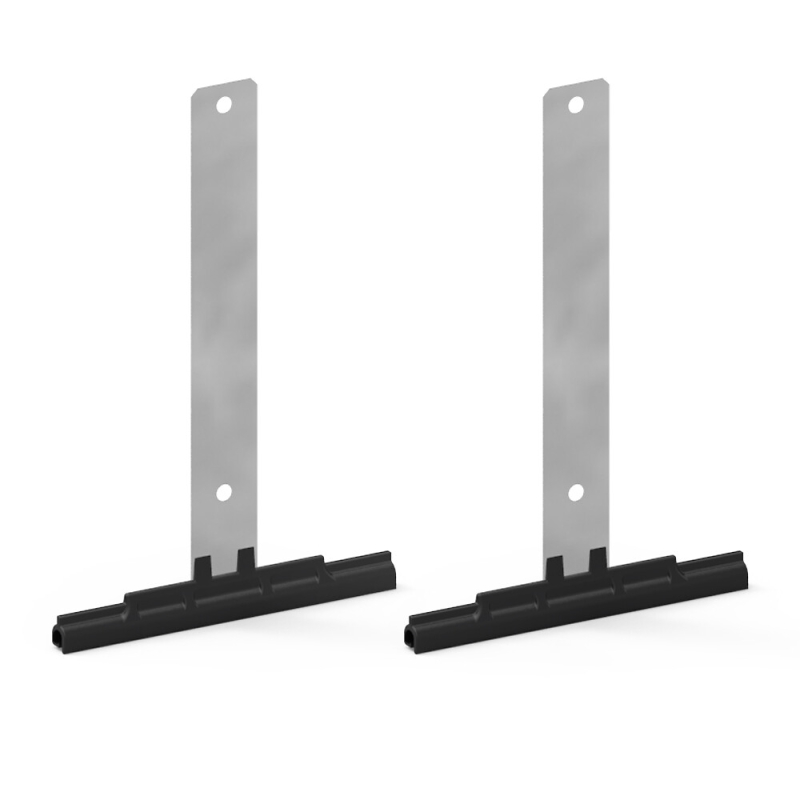

Screw-on apron clip for 8 mm blade
Reference : WKH880C
- Flexible apron fastener to screw on
- For 8 mm slat
- For all types of tubes
- Lifting capacity: 5 kg per fastener
- Quantity: 2
In stock
Delivery in 3 to 5 days
€3.98
Tax included
Description
Warning: There are many different sizes. Please make sure to check your measurements using the diagrams before placing your order.
This flexible attachment allows the slat curtain to connect to the winding tube.
Universal fixing by screw.
Attachment suitable for 8 mm slats.
Plan for one attachment every 50 cm (minimum two attachments).
Lifting capacity: 5 kg per attachment.
=> Choose the slat curtain attachment according to the slat:
- An 8 mm slat corresponds to a slat height of 30 to 45 mm.
- A 14 mm slat corresponds to a slat height of 50 to 60 mm.
=> Usage recommendations:
- Locks and attachments fixed on the shaft must always be positioned at the ends closest to the guides (maximum 20 cm).
- It is recommended to have at least two slat curtain attachments: one attachment every 50 cm.
Technical documentation
Installation instructions
Made for you
En partenariat avec SLID'UP by Mantion, le fabricant Français ZF vous propose un large choix de pièces détachées pour volet roulant.
Brand
Data Sheet
| Use / Application | Rolling shutter |
|---|---|
| B2B guarantee | 2 ans |
| B2C warranty | 2 years |
| Blade thickness | 8 mm |
| Activity | Doors |
| Installation type | To screw |
| Lifting capacity / piece | 5 kg |
| Locking | Non |
| Made in | France |
| Type of tube |
OCTO - 40 mm OCTO - 60 mm OCTO - 70 mm ZF - 45 mm ZF - 54 mm ZF - 64 mm ZF - 80 mm |
| Brand | ZF |
