Solar radio motorisation kit for roller shutter 40 kg - 20 Nm
Reference : SU9205
- Solar radio motorisation kit Ø 45 mm for roller shutters
- Motor torque: 20 Nm
- Slat lifting capacity: max 40 kg
- Diameter: 45 mm
- Adapter for octagonal tube Ø 60 mm included in the kit
- Adapters for ZF54 or ZF64 tubes available as an option
- End stop adjustment: manual via remote control
- Warranty: 2 years
In stock
Delivery in 3 to 5 days
€321.09
Tax included
€272.92
Tax included
Ou 3x 90.97 € sans frais
Description
This Ø 45 mm solar radio motor is designed to operate a roller shutter weighing up to 40 kg.
Radio motors are intended for operation via a remote control or a radio switch (unlike wired motors which are operated via a wired switch).
The limit switch settings, very easy to adjust, are done by remote control.
Safety, silence, and comfort are ensured.
For your roller shutters, we recommend the use of WKH138 stops.
The adapter supplied in the kit allows installation only in a Ø 60 mm octagonal tube.
For installation in a ZF tube, order the optional adapter available:
- WZFV310D for a Ø 45 mm solar motor in a ZF54 tube
- WZFV310E for a Ø 45 mm solar motor in a ZF64 tube
Calculation of the curtain weight:
- Curtain weight = width x (height + 20 cm) x weight of slats per m²
- Weight of 8 mm slats: PVC = 4 kg/m², Foamed ALU = 4.5 kg/m², Extruded ALU = 7 kg/m², WOOD = 11 kg/m²

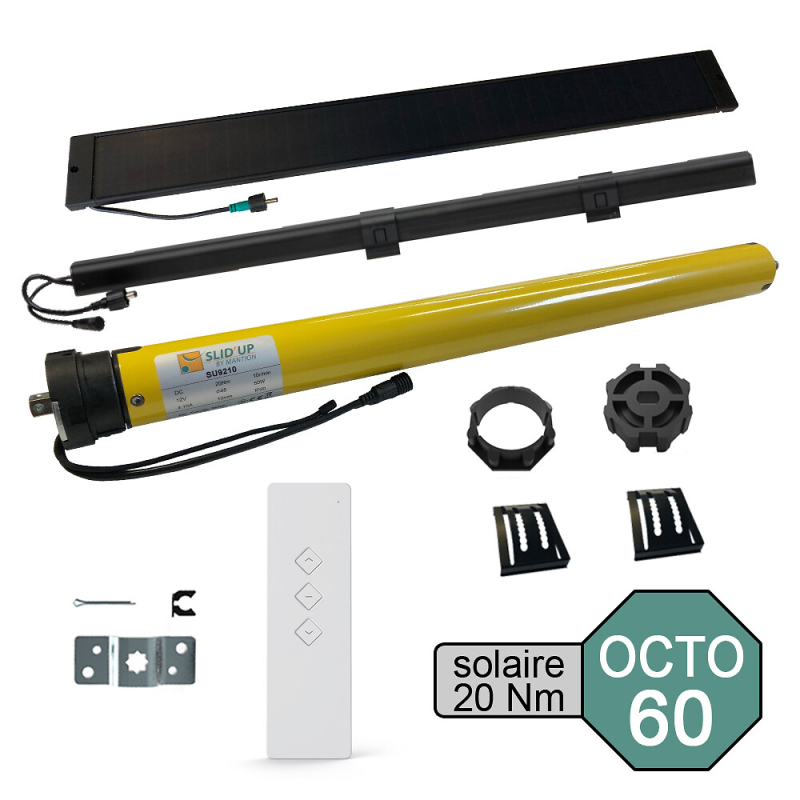

Kit contents:
- 1 Ø 45 mm 20 Nm solar radio motor (for roller shutters up to 40 kg)
- 1 Ø 45 mm adapter for Ø 60 mm octagonal tube
- 1 12 V 5100 mAh battery
- 1 external solar panel
- 1 3-button radio remote control (ref SU9240)
- 1 3 m extension cable for solar panel (ref SU9250)
- 1 motor bracket (ref SU9270)
Accessories:
Roller shutter slat fasteners and locks
End caps for octagonal and ZF tubes
Brackets and bearings
All accessories for roller shutters
Radio motors are intended for operation via a remote control or a radio switch (unlike wired motors which are operated via a wired switch).
The limit switch settings, very easy to adjust, are done by remote control.
Safety, silence, and comfort are ensured.
For your roller shutters, we recommend the use of WKH138 stops.
The adapter supplied in the kit allows installation only in a Ø 60 mm octagonal tube.
For installation in a ZF tube, order the optional adapter available:
- WZFV310D for a Ø 45 mm solar motor in a ZF54 tube
- WZFV310E for a Ø 45 mm solar motor in a ZF64 tube
Calculation of the curtain weight:
- Curtain weight = width x (height + 20 cm) x weight of slats per m²
- Weight of 8 mm slats: PVC = 4 kg/m², Foamed ALU = 4.5 kg/m², Extruded ALU = 7 kg/m², WOOD = 11 kg/m²
Kit contents:
- 1 Ø 45 mm 20 Nm solar radio motor (for roller shutters up to 40 kg)
- 1 Ø 45 mm adapter for Ø 60 mm octagonal tube
- 1 12 V 5100 mAh battery
- 1 external solar panel
- 1 3-button radio remote control (ref SU9240)
- 1 3 m extension cable for solar panel (ref SU9250)
- 1 motor bracket (ref SU9270)
Accessories:
Roller shutter slat fasteners and locks
End caps for octagonal and ZF tubes
Brackets and bearings
All accessories for roller shutters
Technical documentation
User manual
Video presentation
Made for you
From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.
Brand
Data Sheet
| Use / Application | Rolling shutter |
|---|---|
| B2B guarantee | 5 years |
| B2C warranty | 2 years |
| Activity | Doors |
| Control type | Radio |
| Diameter | 45 mm |
| Maximum power | 50 W |
| Maximum roller shutter weight | 40 kg |
| Motor torque | 20 Nm |
| Diameter - Motor torque (Nm) | 45 mm - 20 Nm |
| Motor type | Tubular |
| Motor voltage | 12 V CC |
| Mounting type |
Renovation Traditional |
| Product family | Motorization kit |
| Protection class | IP20 |
| Rotation speed | 10 rpm |
| Type of tube | OCTO - 60 mm |
| Brand | SLID'UP by Mantion |
