Solar radio motorisation kit for roller shutter 40 kg - OCTO tube Ø 60 mm - 20 Nm
Reference : SU9200
- Solar motorisation kit with octagonal tube Ø 60 mm
- Radio motorisation (with radio remote control provided)
- Motor torque: 20 Nm
- Shutter lifting capacity: max 40 kg
- Bay width: from 780 mm to 2,800 mm
- End-of-travel adjustment: manual by remote control
- Warranty: 2 years
In stock
Delivery in 3 to 5 days
€379.94
Tax included
€322.95
Tax included
Ou 3x 107.65 € sans frais
Description
This complete solar renovation kit is intended for the motorisation of a roller shutter weighing up to 40 kg.
The solar radio motor, placed inside a 60 mm diameter telescopic octagonal tube, drives the curtain thanks to the clip-on attachments for 8 mm slats provided in the kit.
For 14 mm slats, use the screw-on WKH883C attachments (not included in the kit).
It is controlled by a 3-button radio remote control, also included in the kit.
The limit switch adjustment, which is very easy, is done manually via the remote control.
Safety, silence, and comfort are ensured.
We recommend using the WKH138 stops.
Calculation of the curtain weight:
- Curtain weight = width x (height + 20 cm) x weight of the slats per m²
- Weight of 8 mm slats: PVC = 4 kg/m², Foamed ALU = 4.5 kg/m², Extruded ALU = 7 kg/m², WOOD = 11 kg/m²
Dimensional limits:
• Traditional installation:
- Tube 1 only = bay width from 780 mm to 1,590 mm
- Tube 1 + tube 2 = bay width from 1,590 mm to 2,800 mm
• Renovation installation:
- Tube 1 only = bay width from 860 mm to 1,590 mm
- Tube 1 + tube 2 = bay width from 1,590 mm to 2,800 mm
Choice of attachments:
- An 8 mm slat corresponds to a slat height of 30 to 45 mm (attachments included in the kit).
- A 14 mm slat corresponds to a slat height of 50 to 60 mm (use the screw-on WKH883C attachments).

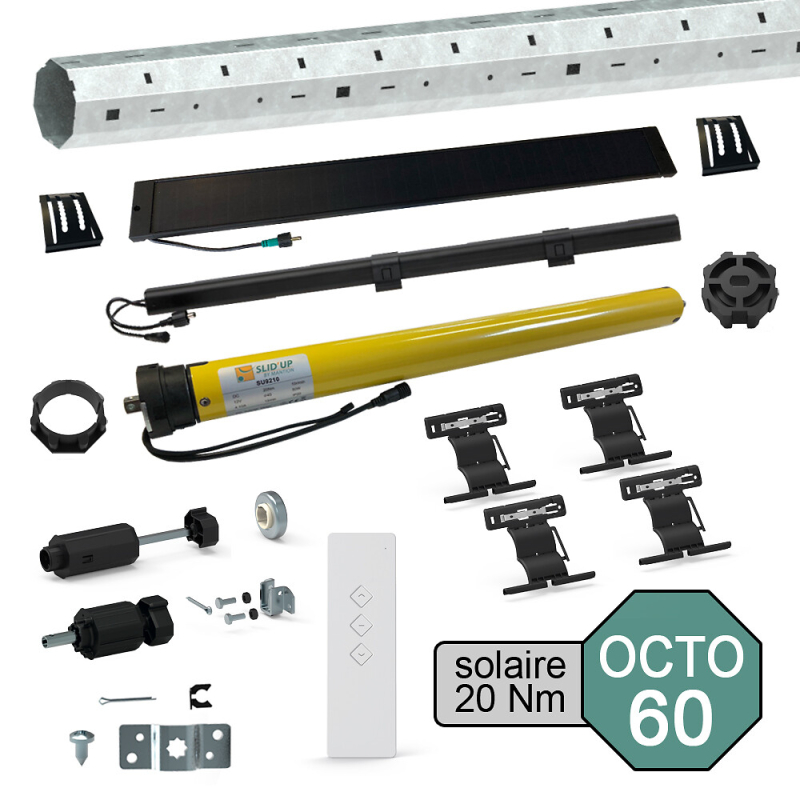

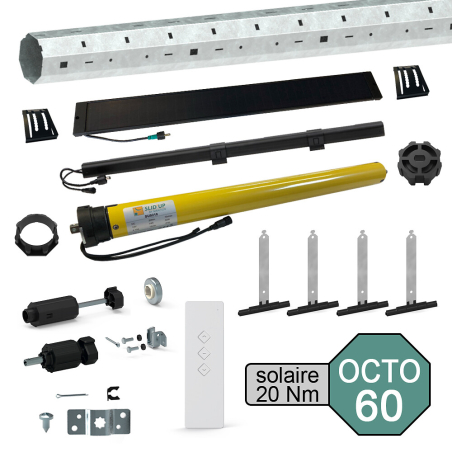

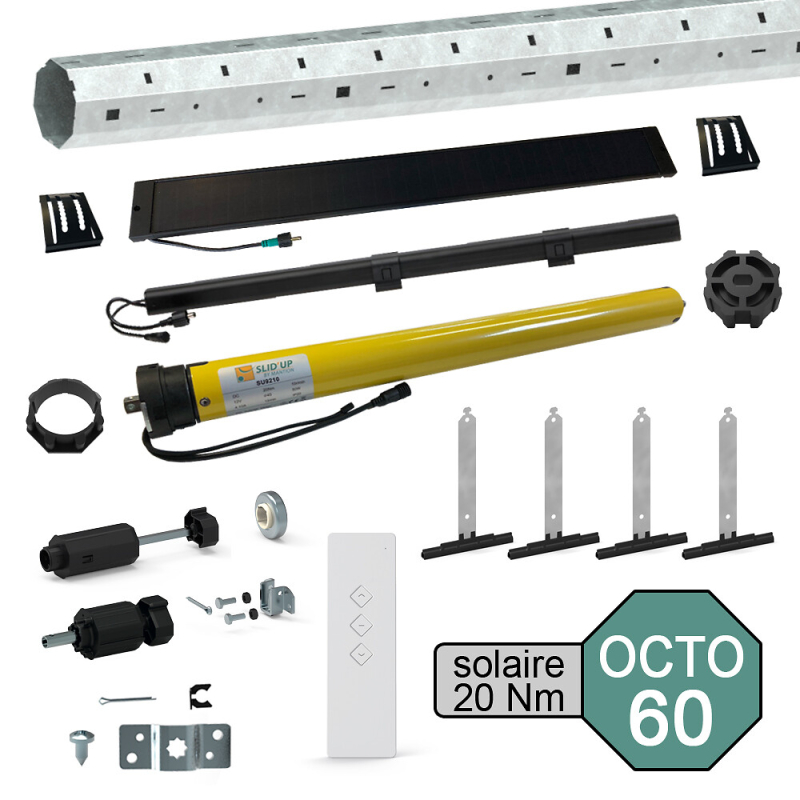

Kit contents:
- 1 solar radio motor Ø 45 mm 20 Nm (for roller shutters up to 40 kg)
- 1 cuttable telescopic octagonal tube Ø 60 mm
- 1 motor adapter kit Ø 45 mm for octagonal tube Ø 60 mm
- 1 battery 12 V 5100 mAh
- 1 external solar panel
- 1 3-button radio remote control (ref SU9240)
- 1 3 m extension cable for solar panel (ref SU9250)
- 1 motor support (ref SU9270)
- 4 clip-on attachments for 8 mm slats (ref WKH880G) (for 14 mm slats, use the screw-on WKH883C attachments)
- 1 reinforced traditional-type shaft end for octagonal tube Ø 60 mm + support
- 1 reinforced renovation-type shaft end for octagonal tube Ø 60 mm female ratchet + bearing
- 2 screws M3.5x13
The solar radio motor, placed inside a 60 mm diameter telescopic octagonal tube, drives the curtain thanks to the clip-on attachments for 8 mm slats provided in the kit.
For 14 mm slats, use the screw-on WKH883C attachments (not included in the kit).
It is controlled by a 3-button radio remote control, also included in the kit.
The limit switch adjustment, which is very easy, is done manually via the remote control.
Safety, silence, and comfort are ensured.
We recommend using the WKH138 stops.
Calculation of the curtain weight:
- Curtain weight = width x (height + 20 cm) x weight of the slats per m²
- Weight of 8 mm slats: PVC = 4 kg/m², Foamed ALU = 4.5 kg/m², Extruded ALU = 7 kg/m², WOOD = 11 kg/m²
Dimensional limits:
• Traditional installation:
- Tube 1 only = bay width from 780 mm to 1,590 mm
- Tube 1 + tube 2 = bay width from 1,590 mm to 2,800 mm
• Renovation installation:
- Tube 1 only = bay width from 860 mm to 1,590 mm
- Tube 1 + tube 2 = bay width from 1,590 mm to 2,800 mm
Choice of attachments:
- An 8 mm slat corresponds to a slat height of 30 to 45 mm (attachments included in the kit).
- A 14 mm slat corresponds to a slat height of 50 to 60 mm (use the screw-on WKH883C attachments).
Kit contents:
- 1 solar radio motor Ø 45 mm 20 Nm (for roller shutters up to 40 kg)
- 1 cuttable telescopic octagonal tube Ø 60 mm
- 1 motor adapter kit Ø 45 mm for octagonal tube Ø 60 mm
- 1 battery 12 V 5100 mAh
- 1 external solar panel
- 1 3-button radio remote control (ref SU9240)
- 1 3 m extension cable for solar panel (ref SU9250)
- 1 motor support (ref SU9270)
- 4 clip-on attachments for 8 mm slats (ref WKH880G) (for 14 mm slats, use the screw-on WKH883C attachments)
- 1 reinforced traditional-type shaft end for octagonal tube Ø 60 mm + support
- 1 reinforced renovation-type shaft end for octagonal tube Ø 60 mm female ratchet + bearing
- 2 screws M3.5x13
Technical documentation
Installation instructions
Video presentation
Made for you
From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.
Brand
Data Sheet
| Use / Application | Rolling shutter |
|---|---|
| B2B guarantee | 5 years |
| B2C warranty | 2 years |
| Activity | Doors |
| Can be recut | Oui |
| Control type | Radio |
| Diameter | 45 mm |
| Material | Galvanized steel |
| Maximum bay width | 2800 mm |
| Maximum power | 50 W |
| Maximum roller shutter weight | 40 kg |
| Minimum bay width | 780 mm |
| Motor torque | 20 Nm |
| Motor type | Tubular |
| Motor voltage | 12 V CC |
| Mounting type |
Renovation Traditional |
| Product family | Motorization kit |
| Protection class | IP20 |
| Rotation speed | 10 rpm |
| Type of tube | OCTO - 60 mm |
| Type of tube (mm) - Motor torque (Nm) | OCTO 60 - 20 Nm |
| Brand | SLID'UP by Mantion |
