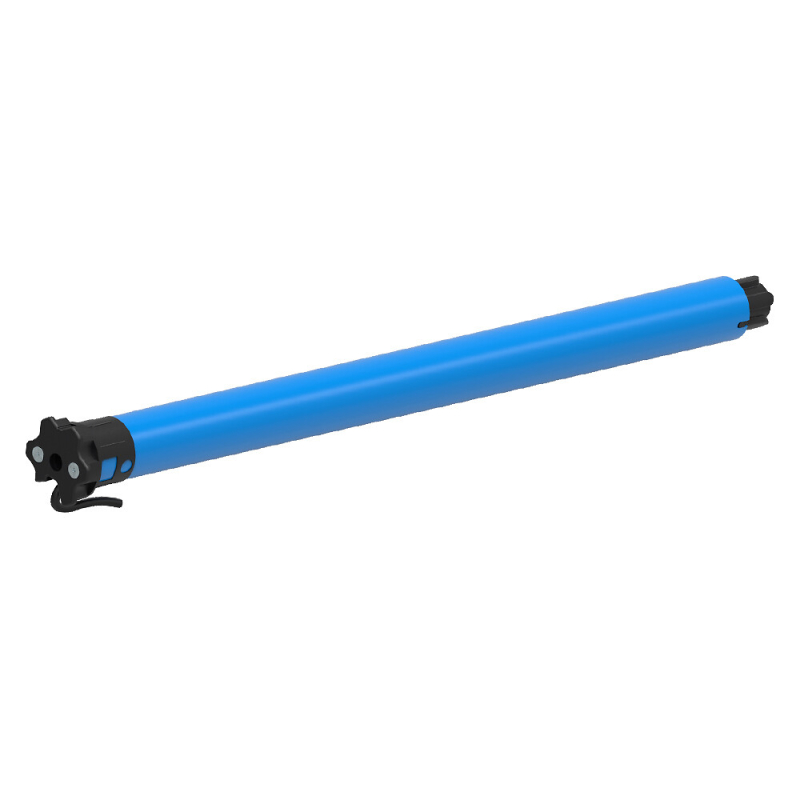

Radio motor Ø 45 mm for roller shutter 40 kg - 20 Nm
Reference : C0013301
- Radio motor Ø 45 mm for roller shutter
- Motor torque: 20 Nm
- Shutter lifting capacity: max 40 kg
- Diameter: 45 mm
- End-of-travel adjustment: automatic
- Adapter for OCTO or ZF tube optional
- Warranty: 2 years
In stock
Delivery in 3 to 5 days
€123.40
Tax included
€104.89
Tax included
Description
This Ø 45 mm wired motor is designed to drive a roller shutter of up to 40 kg.
The radio motors are intended for operation via a remote control or a radio switch (unlike wired motors which are operated via a wired switch).
The limit switch adjustment, by learning, is done automatically.
Safety, silence and comfort are ensured.
For your roller shutters, we recommend using the WKH138 stops.
Choice of wall bracket :
- C0013245 : wall bracket for motor with star head
Choice of adapter :
- WZFV311B for a Ø 45 mm radio motor in a OCTO 60 tube
- WZFV312D for a Ø 45 mm radio motor in a ZF 54 tube
- WZFV312E for a Ø 45 mm radio motor in a ZF 64 tube
Calculation of the curtain weight :
- Curtain weight = width x (height + 20 cm) x weight of slats per m²
- Weight of 8 mm slats: PVC = 4 kg/m², Foamed ALU = 4.5 kg/m², Extruded ALU = 7 kg/m², WOOD = 11 kg/m²
Kit contents :
- 1 Ø 45 mm 20 Nm star head radio motor (for roller shutter up to 40 kg)
- 1 user manual
Options :
Slat fasteners and locks
End caps for octagonal tubes and ZF tubes
Switches and remote controls for roller shutters
Brackets and bearings
All accessories for roller shutters
Technical documentation
User manual
Made for you
From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.
Brand
Data Sheet
| Use / Application | Rolling shutter |
|---|---|
| B2B guarantee | 2 ans |
| B2C warranty | 2 years |
| Activity | Doors |
| Control type | Radio |
| Diameter | 45 mm |
| Maximum power | 190 W |
| Maximum roller shutter weight | 40 kg |
| Motor torque | 20 Nm |
| Diameter - Motor torque (Nm) | 45 mm - 20 Nm |
| Motor type | Tubular |
| Motor voltage | 230 V CC |
| Product family | Engine only |
| Protection class | IP44 |
| Rotation speed | 17 rpm |
| Supply voltage | 230 V CA |
| Brand | SLID'UP by Mantion |
