Wired motor Ø 45 mm for 40 kg roller shutter - 20 Nm

This Ø 45 mm wired motor is designed to drive a roller shutter of up to 40 kg.

Wired motors are intended for operation via a switch (unlike radio motors which are operated via a wireless control point such as a remote control or radio switch).

A wired motor can be paired with any switch, regardless of the brand (it simply needs to be a model designed for automation, i.e. one that has the functions of lifting, lowering, and stopping). No constraints, you retain control over the aesthetic aspect of the control point and/or can keep those already in place when replacing the motor.

The adjustment of the limit switches, very easy, is done manually.

Safety, silence and comfort are ensured.

For your roller shutters, we recommend using the WKH138 stops.

Choice of wall bracket:
- C0013245: wall bracket for motor with star head
- SU9270: wall bracket for motor with square head

Choice of adapter:
- WZFV310B for a Ø 45 mm wired motor in a OCTO 60 tube
- WZFV310D for a Ø 45 mm wired motor in a ZF 54 tube
- WZFV310E for a Ø 45 mm wired motor in a ZF 64 tube

Calculation of the curtain weight:
- Curtain weight = width x (height + 20 cm) x weight of slats per m²
- Weight of 8 mm slats: PVC = 4 kg/m², foamed ALU = 4.5 kg/m², extruded ALU = 7 kg/m², WOOD = 11 kg/m²

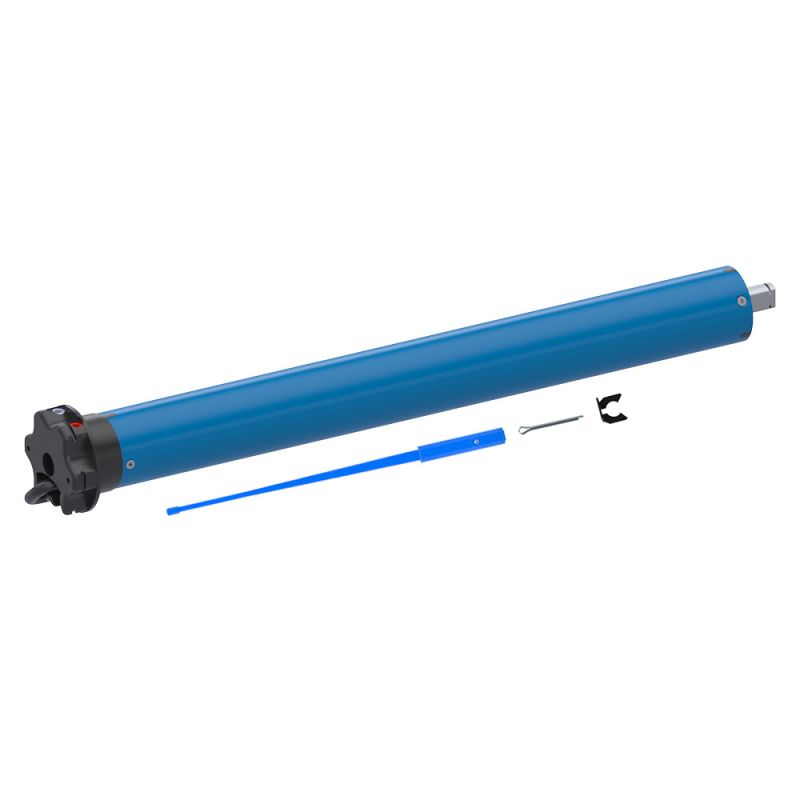

Kit contents:
- 1 wired motor with star head Ø 45 mm 20 Nm (for roller shutter up to 40 kg max)
- 1 square head 10 mm end piece for replacing the motor’s star head
- 1 stick for manual adjustment of the limit switches
