Wired motor Ø 35 mm for 20 kg roller shutter - 10 Nm

This Ø 35 mm wired motor is designed to drive a roller shutter of up to 20 kg.

Wired motors are intended for operation via a switch (unlike radio motors which are operated via a wireless control point such as a remote control or radio switch).

A wired motor can be paired with any switch, regardless of the brand (it simply needs to be a model designed for automation, meaning it has the functions of lifting, lowering, and stopping). No constraints, you retain control over the aesthetic aspect of the control point and/or can keep the existing ones when replacing a motor.

The adjustment of the end stops, which is very easy, is done manually.

Safety, silence, and comfort are ensured.

For your roller shutters, we recommend using the WKH138 stops.

Choice of wall bracket:
- C0013245: wall bracket for motor with star head
- SU9270: wall bracket for motor with square head

Choice of adapter:
- WZFV310A for a Ø 35 mm wired motor in a OCTO 40 tube
- WZFV310B for a Ø 45 mm wired motor in a OCTO 60 tube
- WZFV310D for a Ø 45 mm wired motor in a ZF 54 tube
- WZFV310E for a Ø 45 mm wired motor in a ZF 64 tube

Calculation of the curtain weight:
- Curtain weight = width x (height + 20 cm) x weight of slats per m²
- Weight of 8 mm slats: PVC = 4 kg/m², Foamed ALU = 4.5 kg/m², Extruded ALU = 7 kg/m², WOOD = 11 kg/m²

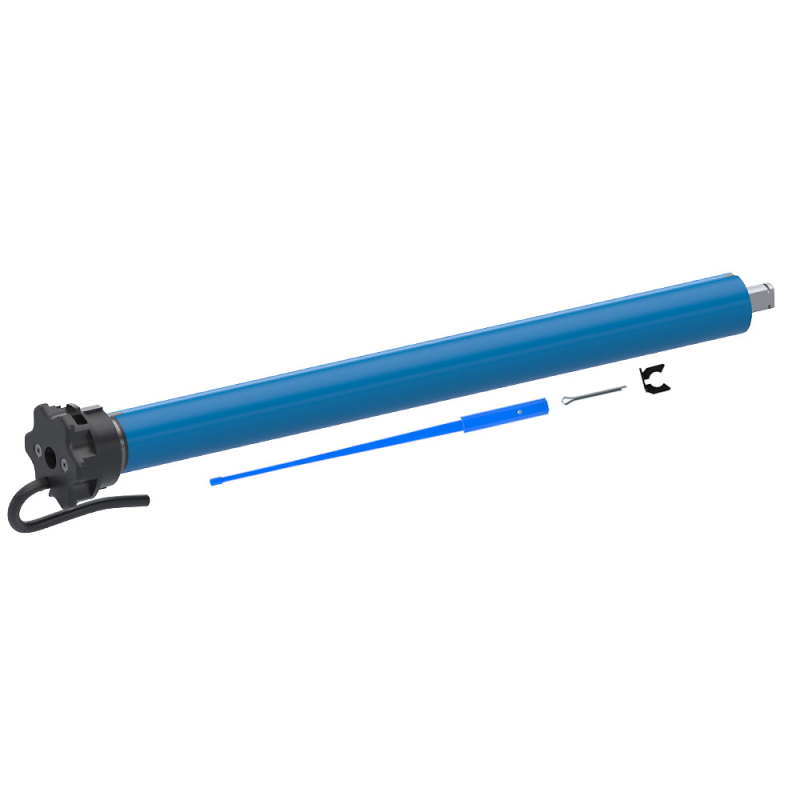

Kit contents:
- 1 Ø 35 mm star head wired motor 10 Nm (for roller shutters up to 20 kg)
- 1 10 mm square head tip for replacing the motor star head
- 1 Ø 45 mm adapter ring for Ø 35 mm motor
- 1 stick for manual adjustment of end stops

Options:
Slat fasteners and locks
End caps for octagonal tubes and ZF tubes
Switches and remote controls for roller shutters
Brackets and bearings
All accessories for roller shutters
