Wired motor Ø 45 mm for roller shutter 60 kg - 30 Nm

This wired motor Ø 45 mm is designed to drive a roller shutter with a maximum weight of 60 kg.

Wired motors are intended for operation via a switch (unlike radio motors which are operated via a wireless control point such as a remote control or radio switch).

A wired motor can be paired with any switch, regardless of the brand (it simply needs to be a model designed for automation, meaning it has the functions of lifting, lowering and stopping). No constraints, you retain control over the aesthetic aspect of the control point and/or can keep the existing ones when replacing the motor.

The adjustment of the end stops, which is very easy, is done manually.

Safety, silence and comfort are ensured.

For your roller shutters, we recommend the use of WKH138 stops.

Choice of wall bracket :
- C0013245 : wall bracket for motor with star head
- SU9270 : wall bracket for motor with square head

Choice of adapter :
- WZFV310B for a wired motor Ø 45 mm in a OCTO 60 tube
- WZFV310D for a wired motor Ø 45 mm in a ZF 54 tube
- WZFV310E for a wired motor Ø 45 mm in a ZF 64 tube

Calculation of the curtain weight :
- Curtain weight = width x (height + 20 cm) x weight of slats per m²
- Weight of 8 mm slats: PVC = 4 kg/m², Foamed ALU = 4.5 kg/m², Extruded ALU = 7 kg/m², WOOD = 11 kg/m²

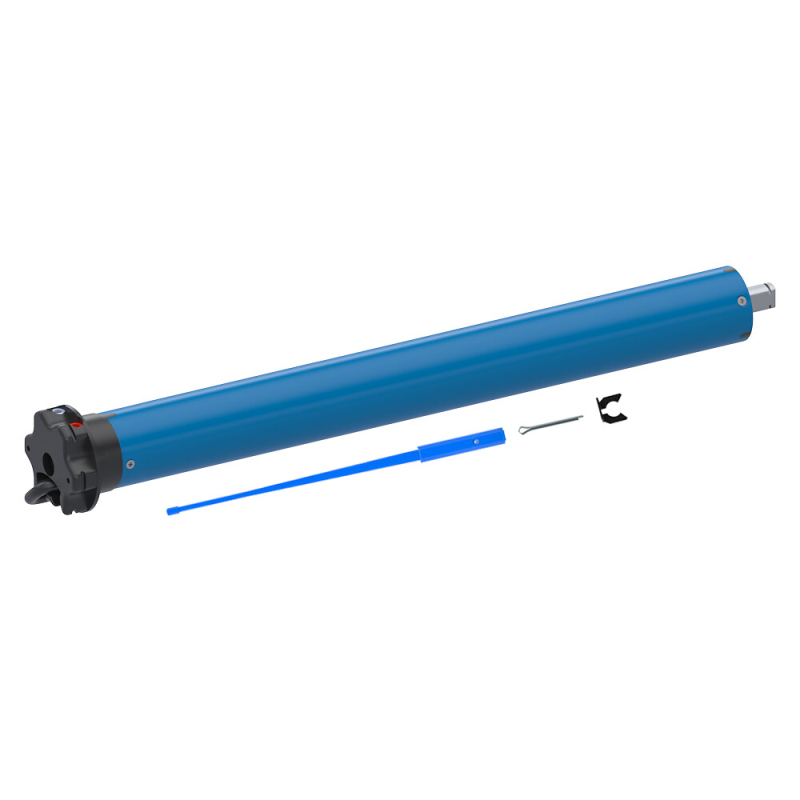

Kit contents :
- 1 wired motor star head Ø 45 mm 30 Nm (for roller shutters up to 60 kg)
- 1 square head 10 mm end piece for replacing motor star head
- 1 stick for manual adjustment of the end stops
