Wired motor Ø 45 mm for roller shutter 20 kg - 10 Nm

This wired Ø 45 mm motor is designed to drive a roller shutter of up to 20 kg.

Wired motors are intended for operation via a switch (unlike radio motors which are operated via a wireless control point such as a remote control or radio switch).

A wired motor can be paired with any switch, regardless of brand (it simply needs to be a model designed for automation, that is to say one that has the functions of lifting, lowering, and stopping). No constraints, you retain control over the aesthetic aspect of the control point and/or can keep the existing ones when replacing the motor.

The limit switch adjustment, very easy, is done manually.

Safety, silence, and comfort are ensured.

For your roller shutters, we recommend using the WKH138 stops.

Choice of wall bracket:
- C0013245: wall bracket for motor with star head
- SU9270: wall bracket for motor with square head

Choice of adapter:
- WZFV310B for a wired Ø 45 mm motor in a OCTO 60 tube
- WZFV310D for a wired Ø 45 mm motor in a ZF 54 tube
- WZFV310E for a wired Ø 45 mm motor in a ZF 64 tube

Calculation of the curtain weight:
- Curtain weight = width x (height + 20 cm) x weight of slats per m²
- Weight of 8 mm slats: PVC = 4 kg/m², foamed ALU = 4.5 kg/m², extruded ALU = 7 kg/m², WOOD = 11 kg/m²

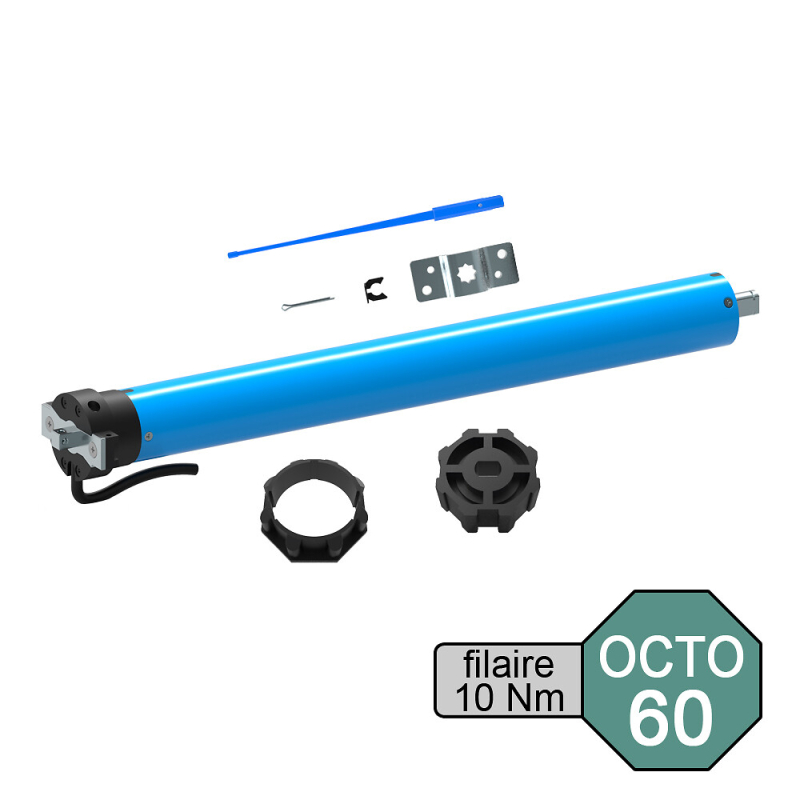

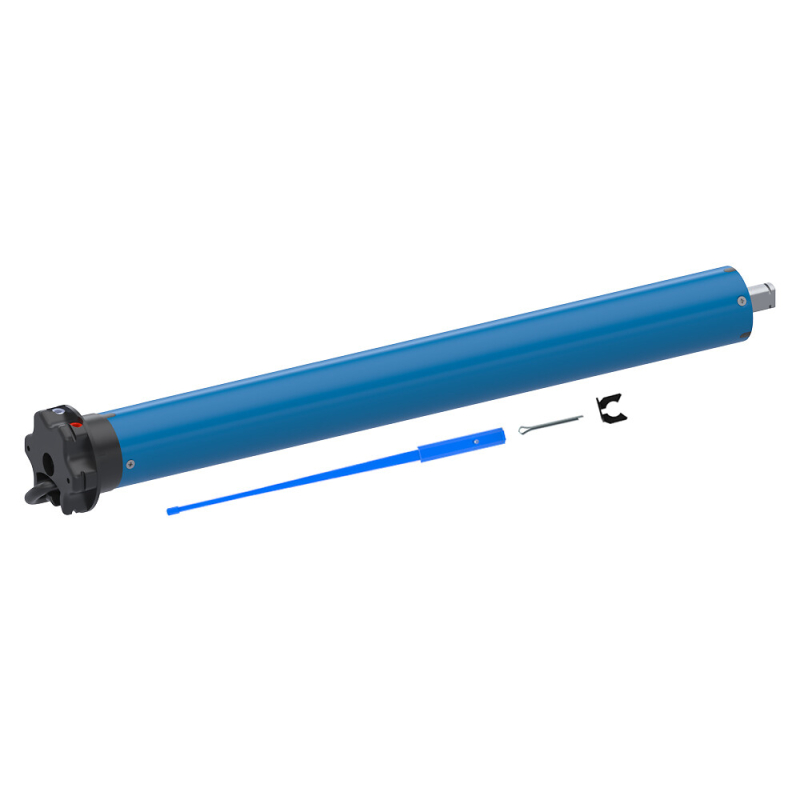

Kit contents:
- 1 wired star head motor Ø 45 mm 10 Nm (for roller shutters up to 20 kg)
- 1 square head 10 mm adapter for star head motor replacement
- 1 stick for manual limit switch adjustment

Options:
Slat fasteners and locks
End caps for octagonal and ZF tubes
Switches and remote controls for roller shutters
Brackets and bearings
All accessories for roller shutters
