Ø 45 mm wired motor for 80 kg roller shutter - 50 Nm

This wired Ø 45 mm motor is designed to drive a roller shutter of up to 80 kg.

An emergency operation is integrated into the motor. In case of a failure, it is possible to connect a 6-sided crank to manually operate the system.

The wired motors are intended for operation via a switch (unlike radio motors which are operated via a wireless control point such as a remote control or radio switch).

A wired motor can be paired with any switch, regardless of the brand (it just needs to be a model designed for automation, that is to say, one that has the lift, lower, and stop functions). No constraints, you retain control over the aesthetic aspect of the control point and/or can keep existing ones in place when replacing a motor.

The limit switch adjustment, very easy, is done manually.

Safety, silence, and comfort are ensured.

For your roller shutters, we recommend the use of WKH138 stops.

Choice of wall bracket :
- WZFC518A: galvanized steel immobilisation plate

Choice of adapter :
- WZFV310B for a wired Ø 45 mm motor in an OCTO 60 tube
- WZFV310D for a wired Ø 45 mm motor in a ZF 54 tube
- WZFV310E for a wired Ø 45 mm motor in a ZF 64 tube

Calculation of the curtain weight :
- Curtain weight = width x (height + 20 cm) x weight of slats per m²
- Weight of 8 mm slats: PVC = 4 kg/m², foam aluminium = 4.5 kg/m², extruded aluminium = 7 kg/m², WOOD = 11 kg/m²

Kit contents :

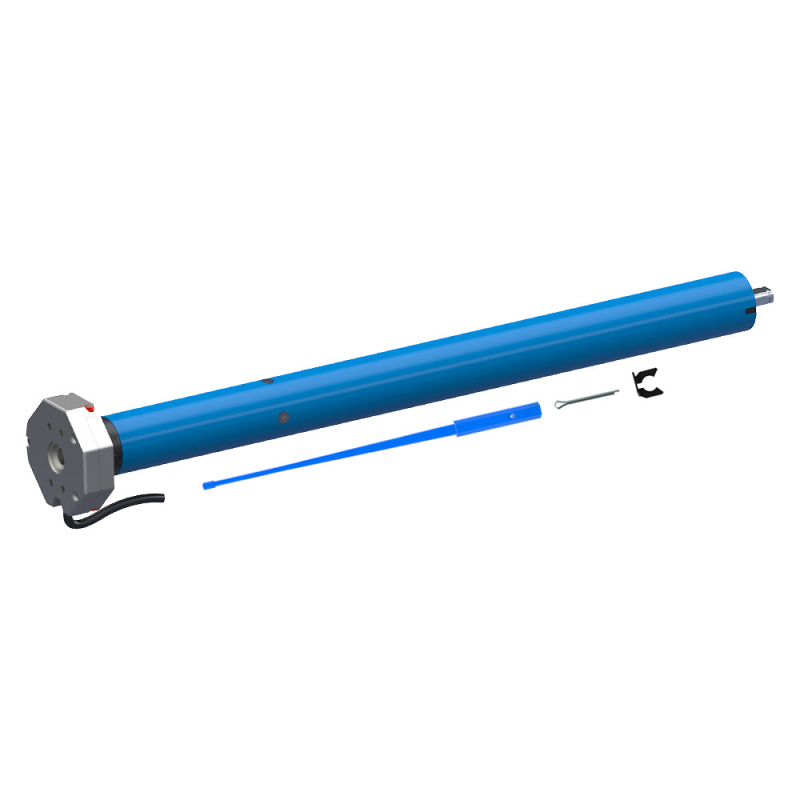

- 1 wired Ø 45 mm 50 Nm motor (for roller shutters up to 80 kg)
- 1 rod for manual limit switch adjustment

Options :
Slat fasteners and locks
End caps for octagonal tubes and ZF tubes
Switches and remote controls for roller shutters
Brackets and bearings
All accessories for roller shutters
