SLID'UP 2300 sliding system for partition wall, for pocket sliding door 930 x 2040 mm - with MDF cladding - 50 kg

Attention: Door not included in the kit.

SLID'UP 2300 sliding system for partition walls with frame and MDF cladding kit included for wooden sliding door 930 x 2040 mm - 50 kg. Pocket door installation, possibility to dismantle the rail, no groove under the door for the bottom guide.

Structure height = 2300 min to 2500 mm max
Structure width = 2006 mm
Passage height = 2030 mm (with cladding kit SU2306)
Passage width = 900 mm (with cladding kit SU2306)
Door height = 2040 mm
Door width = 930 mm
Interior partition thickness = 100 mm
Finished partition thickness = 125 mm
Total thickness with cladding SU2306 = 145 mm

This system ensures maximum space saving. No more wasted space due to the swing radius of a traditional hinged door.
The result of many hours of study and testing, our new mounts guarantee unmatched rolling comfort (100,000 cycle warranty) ensuring silent movement.

It is possible to use a door with a minimum thickness of 25 mm by using guide SU2307.

For more information, please consult the installation manual.

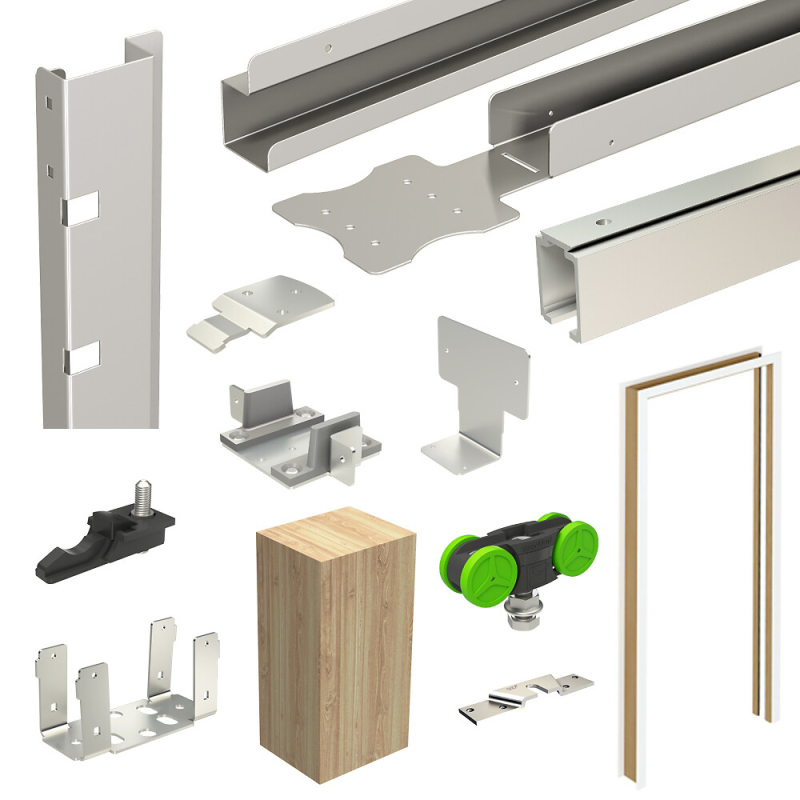

Kit contents:
- 1 MDF bay cladding kit, cuttable (SU2306)
- 1 aluminium top rail length = 1925 mm
- 1 steel galvanized support profile for the top rail for a structure width of 2006 mm
- 4 vertical galvanized steel jambs L= 2242 mm
- 1 galvanized steel lintel profile L=940 mm
- 2 mounts with plastic rollers on ball bearings and M8 screws
- 2 rail stops
- 2 zinc-plated steel plates to fix on top of the door
- 1 zinc-plated steel support for a dismantlable top rail
- 2 zinc-plated steel supports for jambs
- 1 plastic bottom guide assembled on zinc-plated steel support for doors 35 to 40 mm thick
- 2 wooden reinforcements for lintel profile
- 1 partition upright support
- 1 set of screws and keys

Options:
SU2212 : door closer damper
SU2307 : bottom guide with groove
SU5023 : U-shaped PVC guide profile
