Système coulissant SLID'UP 2300 entre-cloison pour porte coulissante à galandage 730 x 2040 mm - avec habillage MDF - 50 kg
Reference : SU9075
- SLID'UP 2300 sliding system for partition walls for wooden sliding doors
- Recessed installation with frame included
- Included MDF bay dressing kit, can be trimmed
- For finished partition thickness = 125 mm
- Possibility to dismantle the rail
- No groove under the door for the bottom guide
- Door width = 730 or 735 mm
- Door height = 1985, 2040 or 2110 mm
- Warranty: 2 years
In stock
Delivery in 3 to 5 days
€403.23
Tax included
Ou 3x 134.41 € sans frais
Description
Warning: Door not included in the kit.
SLID'UP 2300 sliding system for partition walls with frame and MDF cladding kit included for wooden sliding door 730 x 2040 mm - 50 kg. Pocket door installation, possibility to dismantle the rail, no groove under the door for the bottom guide.
Structure height = 2300 min to 2500 mm max
Structure width = 1506 mm
Clear passage height = 1980, 2030 or 2105 mm (with SU2306 cladding kit)
Clear passage width = 700 or 705 mm (with SU2306 cladding kit)
Door height = 1985, 2040 or 2110 mm
Door width = 730 or 735 mm
Internal partition thickness = 100 mm
Finished partition thickness = 125 mm
Total thickness with SU2306 cladding = 145 mm
This system guarantees you maximum space saving. No more space lost due to the swing radius of a traditional hinged door.
The result of many hours of studies and tests, our new mounts ensure unparalleled rolling comfort (guaranteed 100,000 cycles) providing you with silent movement.
Possible to use a door with a minimum thickness of 25 mm using guide SU2307.
For more information, consult the installation manual.

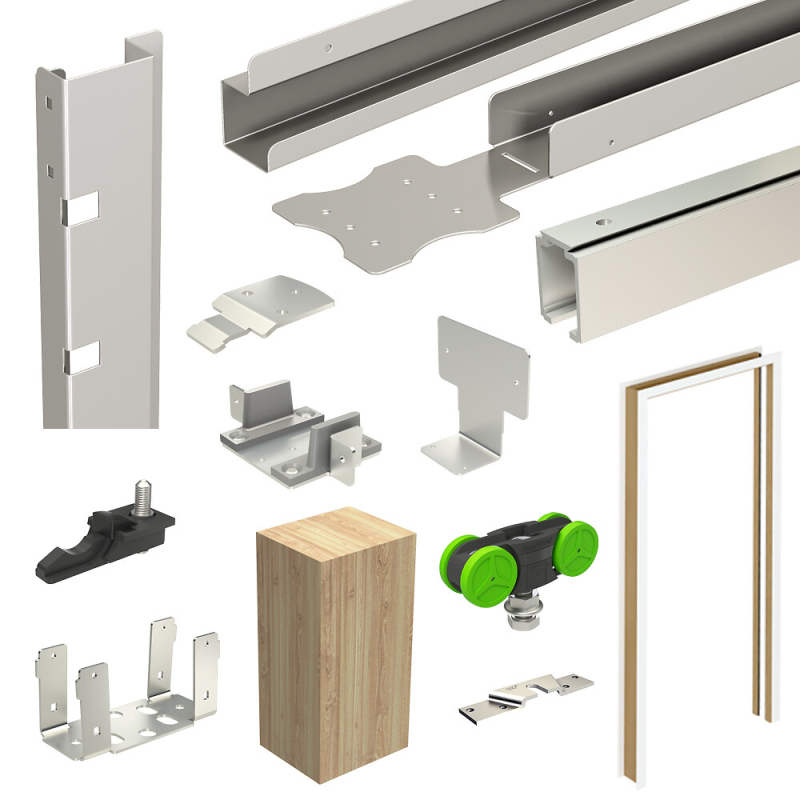

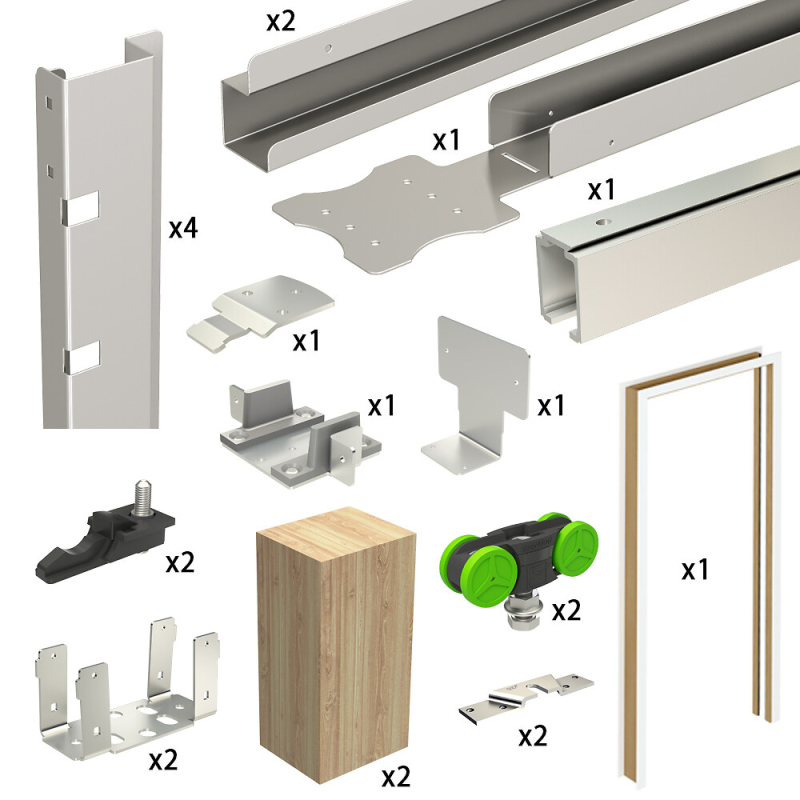

Kit contents:
- 1 MDF bay cladding kit, cuttable (SU2306)
- 1 aluminium top rail length = 1425 mm
- 1 galvanized steel support profile for the top rail for a structure width of 1506 mm
- 4 vertical galvanized steel jambs L= 2242 mm
- 1 galvanized steel lintel profile L=740 mm
- 2 mounts with plastic rollers on ball bearings and M8 screws
- 2 rail stops
- 2 plates to fix on top of the door in zinc-plated steel
- 1 support for a detachable top rail in zinc-plated steel
- 2 supports for jambs in zinc-plated steel
- 1 plastic bottom guide assembled on zinc-plated steel support for door thickness 35 to 40 mm
- 2 wooden reinforcements for lintel profile
- 1 partition upright support
- 1 set of screws and keys
Options:
SU2212 : door closer damper
SU2307 : bottom guide with groove
SU5023 : U-shaped guiding profile
All spare parts for SLID'UP 2300
SLID'UP 2300 sliding system for partition walls with frame and MDF cladding kit included for wooden sliding door 730 x 2040 mm - 50 kg. Pocket door installation, possibility to dismantle the rail, no groove under the door for the bottom guide.
Structure height = 2300 min to 2500 mm max
Structure width = 1506 mm
Clear passage height = 1980, 2030 or 2105 mm (with SU2306 cladding kit)
Clear passage width = 700 or 705 mm (with SU2306 cladding kit)
Door height = 1985, 2040 or 2110 mm
Door width = 730 or 735 mm
Internal partition thickness = 100 mm
Finished partition thickness = 125 mm
Total thickness with SU2306 cladding = 145 mm
This system guarantees you maximum space saving. No more space lost due to the swing radius of a traditional hinged door.
The result of many hours of studies and tests, our new mounts ensure unparalleled rolling comfort (guaranteed 100,000 cycles) providing you with silent movement.
Possible to use a door with a minimum thickness of 25 mm using guide SU2307.
For more information, consult the installation manual.
Kit contents:
- 1 MDF bay cladding kit, cuttable (SU2306)
- 1 aluminium top rail length = 1425 mm
- 1 galvanized steel support profile for the top rail for a structure width of 1506 mm
- 4 vertical galvanized steel jambs L= 2242 mm
- 1 galvanized steel lintel profile L=740 mm
- 2 mounts with plastic rollers on ball bearings and M8 screws
- 2 rail stops
- 2 plates to fix on top of the door in zinc-plated steel
- 1 support for a detachable top rail in zinc-plated steel
- 2 supports for jambs in zinc-plated steel
- 1 plastic bottom guide assembled on zinc-plated steel support for door thickness 35 to 40 mm
- 2 wooden reinforcements for lintel profile
- 1 partition upright support
- 1 set of screws and keys
Options:
SU2212 : door closer damper
SU2307 : bottom guide with groove
SU5023 : U-shaped guiding profile
All spare parts for SLID'UP 2300
Technical documentation
Installation instructions
Made for you
From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.
Brand
Data Sheet
| Use / Application | Partition door |
|---|---|
| B2C warranty | 5 years |
| Activity | Doors |
| Door frame material | Wood |
| Installation type | In between walls |
| Maximum door weight | 50 kg |
| Maximum door width | 730 mm |
| MDF trim | Oui |
| Number of doors | 1 |
| Made in | France |
| Product family | Sliding kit |
| Range | SLID'UP 2300 |
| Track material | Aluminum |
| Type of system | Suspended sliding |
| Brand | SLID'UP by Mantion |
Guaranteed quality
SLID'UP by Mantion guarantees all its sliding systems for 5 years and its motors for 2 years.
Fast delivery
Delivery of in-stock products is guaranteed within 3 to 5 days to your home. Shipping is carried out from our company located in France.
Secure payment
Online payment for your orders is fully secured by credit card, 4x installment with no fees, PayPal or bank transfer.
