SLID'UP 2300 sliding system partition-mounted for sliding pocket door 830 x 2040 mm - 50 kg

Warning: Door not included in the kit.

SLID'UP 2300 sliding system for partition walls with frame included for wooden sliding door 830 x 2040 mm - 50 kg. Pocket door installation, possibility to dismantle the track, no groove under the door for the bottom guide.

Structure height = 2300 min to 2500 mm max
Structure width = 1756 mm
Clear passage height = 2030 mm (with SU2306 finishing kit)
Clear passage width = 800 mm (with SU2306 finishing kit)
Door height = 2040 mm
Door width = 830 mm
Interior partition thickness = 100 mm
Finished partition thickness = 125 mm
Total thickness with SU2306 finishing = 145 mm

This system guarantees you maximum space saving. No more wasted space due to the swing radius of a traditional hinged door.
The result of many hours of study and testing, our new fittings guarantee unmatched rolling comfort (100,000 cycle guarantee) ensuring silent movement.

Possible to use a door with a minimum thickness of 25 mm by using guide SU2307.

For more information, consult the installation manual.

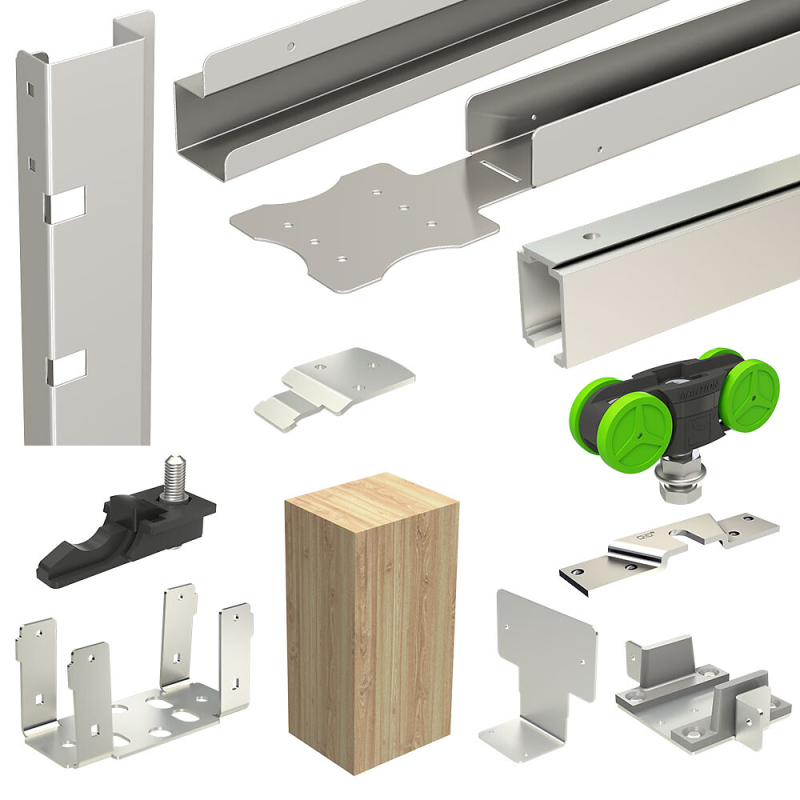

Kit contents:
- 1 aluminium top track length = 1675 mm
- 1 support profile for the top track in galvanized steel for a structure width of 1756 mm
- 4 vertical galvanized steel jambs L= 2242mm
- 1 galvanized steel lintel profile L=840 mm
- 2 fittings with plastic rollers on ball bearings and M8 screws
- 2 track end stops
- 2 plates to fix on top of the door in zinc-plated steel
- 1 support for a removable top track in zinc-plated steel
- 2 supports for jambs in zinc-plated steel
- 1 plastic bottom guide assembled on zinc-plated steel support for door thickness 35 to 40 mm
- 2 wooden reinforcements for lintel profile
- 1 partition upright support
- 1 set of screws and keys

Options:
SU2212 : door closer damper
SU2306 : MDF finishing kit for opening
SU2307 : bottom guide with groove
SU5023 : U-shaped guiding profile
All spare parts for SLID'UP 2300
