SLID'UP 2300 sliding system for partition wall with sliding pocket door 830 x 2040 mm - with MDF cladding - 50 kg

Warning: Door not included in the kit.

SLID'UP 2300 sliding system for partition walls with frame and MDF cladding kit included for wooden sliding door 830 x 2040 mm - 50 kg. Pocket door installation, possibility to dismantle the rail, no groove under the door for the bottom guide.

Structure height = 2300 mm min to 2500 mm max
Structure width = 1756 mm
Clear passage height = 2030 mm (with cladding kit SU2306)
Clear passage width = 800 mm (with cladding kit SU2306)
Door height = 2040 mm
Door width = 830 mm
Interior partition thickness = 100 mm
Finished partition thickness = 125 mm
Total thickness with cladding SU2306 = 145 mm

This system ensures you maximum space saving. No more space lost due to the swing radius of a traditional hinged door.
Result of many hours of study and testing, our new mounts guarantee unmatched rolling comfort (100,000 cycle warranty) ensuring silent movement.

It is possible to use a door with a minimum thickness of 25 mm using guide SU2307.

For more information, please consult the installation instructions.

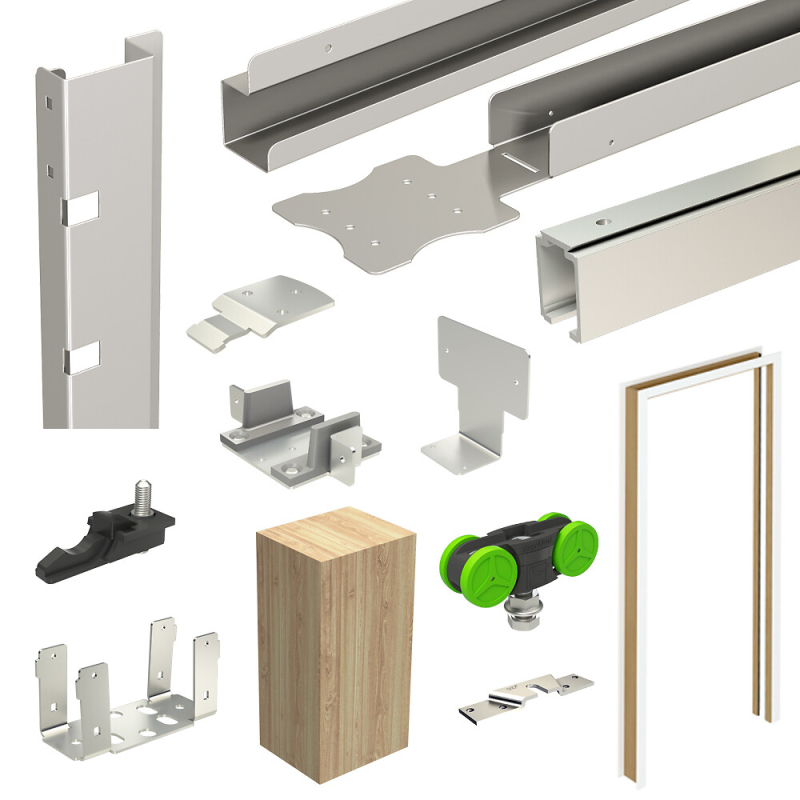

Kit contents:
- 1 MDF bay cladding kit, can be trimmed (SU2306)
- 1 aluminium top rail length = 1675 mm
- 1 galvanized steel top rail support profile for a structure width of 1756 mm
- 4 vertical galvanized steel uprights L= 2242 mm
- 1 galvanized steel lintel profile L=840 mm
- 2 mounts with plastic rollers on ball bearings and M8 screws
- 2 rail stops
- 2 zinc-plated steel plates to fix on top of the door
- 1 zinc-plated steel support for a removable top rail
- 2 zinc-plated steel supports for uprights
- 1 plastic bottom guide assembled on a zinc-plated steel support for doors 35 to 40 mm thick
- 2 wooden reinforcements for lintel profile
- 1 partition upright support
- 1 set of screws and keys

Options:
SU2212 : door closer damper
SU2307 : bottom guide with groove
SU5023 : U-shaped PVC guide profile
