SLID'UP 230 kit natural anodised aluminium for 3 sliding wardrobe doors 19 mm - 2.7 m rail - 70 kg
Reference : SU5164
- Sliding system for 3 wardrobe or dressing room doors
- Complete kit with accessories for easy installation
- Fixing of rails to ceiling and floor
- Maximum door weight: 70 kg each
- Door thickness: 19 mm
- Colour: silver
- Rails: 2.7 m
- Warranty: 5 years
In stock
Delivery in 3 to 5 days
€182.26
Tax included
€154.92
Tax included
Description
SLID'UP 230 sliding system natural anodised aluminium for 3 wardrobe doors 19 mm - 2.7 m rails - 70 kg - Floor sliding.
Maximum wardrobe width: W = 2700 mm
Maximum wardrobe height: H = 2714 mm
Panel thickness: T = 19 mm
Maximum weight per door: 70 kg
Attention: Doors not included in the kit.
The SLID'UP 230 range dresses your wardrobes and closets with an elegant design and high-end finish.
This kit includes not only a double aluminium rail with integrated fascia but also a bottom rail and a set of matching profiles for a perfect finish: handle profile, bottom profile.
Easy to install, the SLID'UP 230 sliding system for wardrobe or closet doors ensures smooth and silent door movement thanks to the ball bearing mounts.
As the mounts are spring-loaded, the doors can be easily removed and reinstalled without having to remove the rails.
The aluminium rails and profiles can be cut to the desired length to perfectly fit the dimensions of your wardrobe.
If needed, several systems can be aligned together to create longer rails.
For customised and made-to-measure wardrobes, it is possible to combine several wooden panels or mirrors on the same door using an optional H profile.

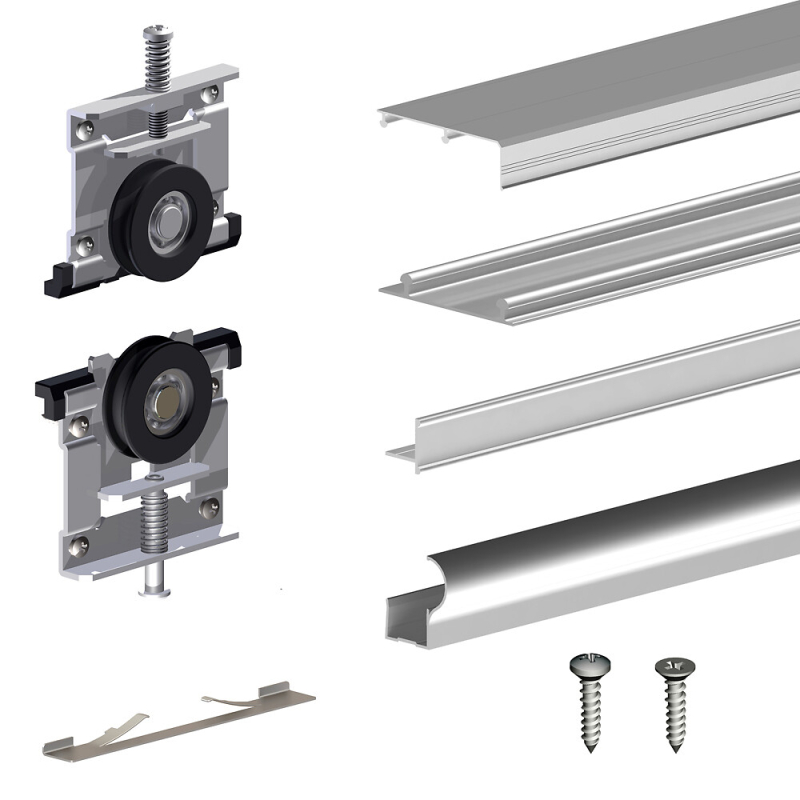

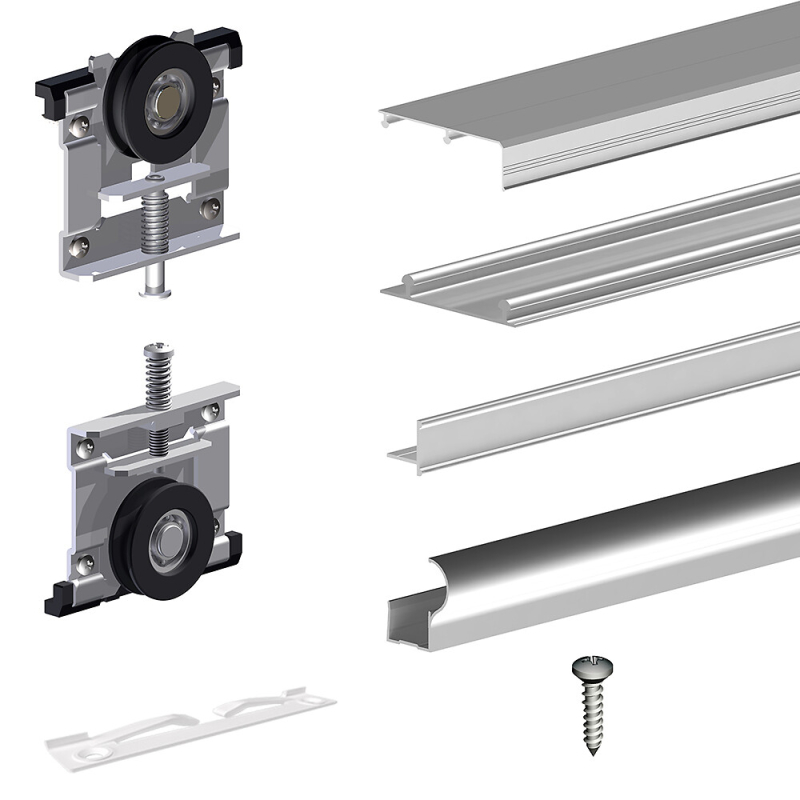

Kit contents:
- 1 upper rail in natural anodised aluminium with integrated fascia, L = 2.7 m
- 1 lower rail in natural anodised aluminium, L = 2.7 m
- 3 bottom T profiles in natural anodised aluminium, L = 1.8 m
- 6 handle profiles in natural anodised aluminium, H = 2.7 m
- 6 upper mounts
- 6 lower mounts
- 3 stops
- 1 set of screws
Options:
SU5287: kit for one additional door - 19 mm - silver
SU5314: H profile for panel or mirror - 19 mm - 1.8 m - silver
SU5289: aluminium handle profile - 19 mm - 2.7 m - silver
SU5402: upper and lower aluminium rails 1.8 m
SU5405: upper and lower aluminium rails 2.7 m
All spare parts for SLID'UP 230
Maximum wardrobe width: W = 2700 mm
Maximum wardrobe height: H = 2714 mm
Panel thickness: T = 19 mm
Maximum weight per door: 70 kg
Attention: Doors not included in the kit.
The SLID'UP 230 range dresses your wardrobes and closets with an elegant design and high-end finish.
This kit includes not only a double aluminium rail with integrated fascia but also a bottom rail and a set of matching profiles for a perfect finish: handle profile, bottom profile.
Easy to install, the SLID'UP 230 sliding system for wardrobe or closet doors ensures smooth and silent door movement thanks to the ball bearing mounts.
As the mounts are spring-loaded, the doors can be easily removed and reinstalled without having to remove the rails.
The aluminium rails and profiles can be cut to the desired length to perfectly fit the dimensions of your wardrobe.
If needed, several systems can be aligned together to create longer rails.
For customised and made-to-measure wardrobes, it is possible to combine several wooden panels or mirrors on the same door using an optional H profile.
Kit contents:
- 1 upper rail in natural anodised aluminium with integrated fascia, L = 2.7 m
- 1 lower rail in natural anodised aluminium, L = 2.7 m
- 3 bottom T profiles in natural anodised aluminium, L = 1.8 m
- 6 handle profiles in natural anodised aluminium, H = 2.7 m
- 6 upper mounts
- 6 lower mounts
- 3 stops
- 1 set of screws
Options:
SU5287: kit for one additional door - 19 mm - silver
SU5314: H profile for panel or mirror - 19 mm - 1.8 m - silver
SU5289: aluminium handle profile - 19 mm - 2.7 m - silver
SU5402: upper and lower aluminium rails 1.8 m
SU5405: upper and lower aluminium rails 2.7 m
All spare parts for SLID'UP 230
Technical documentation
Installation instructions
Video presentation
Made for you
From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.
Brand
Data Sheet
| Use / Application | Closet door |
|---|---|
| B2C warranty | 5 years |
| Activity | Doors |
| Colour | Silver |
| Door frame material | Wood |
| Door thickness | 19 mm |
| Installation type | Floor track |
| Maximum door weight | 70 kg |
| Number of doors - Track length (m) | 3 - 2,7 m |
| Number of doors | 3 |
| Made in | Europe |
| Product family | Sliding kit |
| Range | SLID'UP 230 |
| Track length (m) | 2.7 m |
| Track material | Aluminum |
| Type of system | Sliding on the floor |
| Brand | SLID'UP by Mantion |
