SLID'UP 220 anodised bronze aluminium kit for 2 sliding wardrobe doors 18 mm - 1.8 m track - 70 kg guarantee
Reference : SU5159
- Sliding system for 2 wardrobe or dressing doors
- Complete kit with accessories for easy installation
- Fixing of tracks to ceiling and floor
- Maximum door weight: 70 kg each
- Door thickness: 18 mm
- Colour: bronze
- Tracks: 1.8 m
- Guarantee: 5 years
In stock
Delivery in 3 to 5 days
€135.01
Tax included
Description
SLID'UP 220 sliding system anodised bronze aluminium for 2 wardrobe doors 18 mm - tracks 1.8 m - 70 kg - Floor sliding.
Maximum wardrobe width: W = 1800 mm
Maximum wardrobe height: H = 2714 mm
Panel thickness: T = 18 mm
Maximum weight of each door: 70 kg
Warning: Doors not included in the kit.
The SLID'UP 220 range dresses your cupboards and wardrobes with an elegant design and high-end finish.
This kit includes not only a double aluminium track with integrated fascia but also a lower track and a set of coordinated profiles for a perfect finish: handle profile, bottom profile.
Easy to install, the SLID'UP 220 sliding system for cupboard or wardrobe doors ensures smooth and silent movement of your doors thanks to the ball bearing mounts.
Since the mounts are spring-loaded, the doors can be easily removed and reinstalled without having to remove the tracks.
The aluminium tracks and profiles can be cut to the desired length to perfectly fit the dimensions of your cupboard.
If needed, several systems can be aligned together to create longer tracks.
For custom-made and personalised cupboards, it is possible to combine several wooden panels or mirrors on the same door using an H profile available as an option.

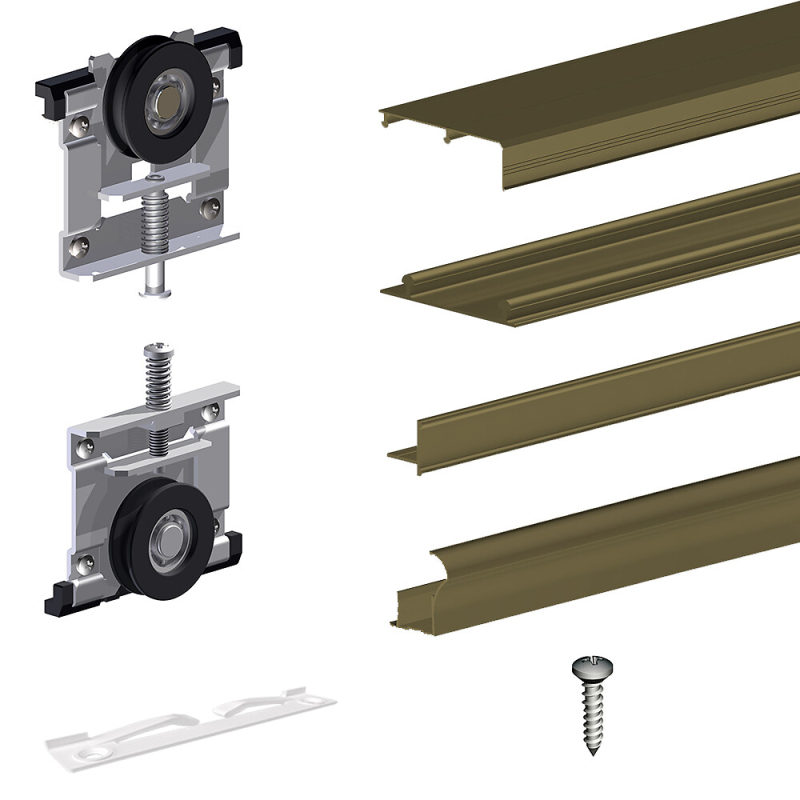

Kit contents:
- 1 anodised bronze aluminium upper track with integrated fascia, L = 1.8 m
- 1 anodised bronze aluminium lower track, L = 1.8 m
- 2 anodised bronze aluminium T bottom profiles, L = 1.8 m
- 4 anodised bronze aluminium handle profiles, H = 2.7 m
- 4 upper mounts
- 4 lower mounts
- 2 end stops
- 1 set of screws
Options:
SU5258: kit for an additional door - 18 mm - bronze
SU5262: H profile for panel or mirror - 18 mm - 1.8 m - bronze
SU5266: aluminium handle profile - 18 mm - 2.7 m - bronze
SU5280: T bottom profile - 18 mm - 1.8 m - bronze
SU5283: L bottom profile - 18 mm - 3 m - bronze
SU5402: upper and lower aluminium tracks 1.8 m
SU5405: upper and lower aluminium tracks 2.7 m
All spare parts for SLID'UP 220
Maximum wardrobe width: W = 1800 mm
Maximum wardrobe height: H = 2714 mm
Panel thickness: T = 18 mm
Maximum weight of each door: 70 kg
Warning: Doors not included in the kit.
The SLID'UP 220 range dresses your cupboards and wardrobes with an elegant design and high-end finish.
This kit includes not only a double aluminium track with integrated fascia but also a lower track and a set of coordinated profiles for a perfect finish: handle profile, bottom profile.
Easy to install, the SLID'UP 220 sliding system for cupboard or wardrobe doors ensures smooth and silent movement of your doors thanks to the ball bearing mounts.
Since the mounts are spring-loaded, the doors can be easily removed and reinstalled without having to remove the tracks.
The aluminium tracks and profiles can be cut to the desired length to perfectly fit the dimensions of your cupboard.
If needed, several systems can be aligned together to create longer tracks.
For custom-made and personalised cupboards, it is possible to combine several wooden panels or mirrors on the same door using an H profile available as an option.
Kit contents:
- 1 anodised bronze aluminium upper track with integrated fascia, L = 1.8 m
- 1 anodised bronze aluminium lower track, L = 1.8 m
- 2 anodised bronze aluminium T bottom profiles, L = 1.8 m
- 4 anodised bronze aluminium handle profiles, H = 2.7 m
- 4 upper mounts
- 4 lower mounts
- 2 end stops
- 1 set of screws
Options:
SU5258: kit for an additional door - 18 mm - bronze
SU5262: H profile for panel or mirror - 18 mm - 1.8 m - bronze
SU5266: aluminium handle profile - 18 mm - 2.7 m - bronze
SU5280: T bottom profile - 18 mm - 1.8 m - bronze
SU5283: L bottom profile - 18 mm - 3 m - bronze
SU5402: upper and lower aluminium tracks 1.8 m
SU5405: upper and lower aluminium tracks 2.7 m
All spare parts for SLID'UP 220
Technical documentation
Video presentation
Made for you
From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.
Brand
Data Sheet
| Use / Application | Closet door |
|---|---|
| B2C warranty | 5 years |
| Activity | Doors |
| Colour | Bronze |
| Door frame material | Wood |
| Door thickness | 18 mm |
| Installation type | Floor track |
| Maximum door weight | 70 kg |
| Number of doors - Track length (m) | 2 - 1,8 m |
| Number of doors | 2 |
| Made in | Europe |
| Product family | Sliding kit |
| Range | SLID'UP 220 |
| Track length (m) | 1.8 m |
| Track material | Aluminum |
| Type of system | Sliding on the floor |
| Brand | SLID'UP by Mantion |
