SLID'UP 220 kit anodised bronze aluminium for 3 sliding wardrobe doors 18 mm - 2.7 m rail - 70 kg
Reference : SU5162
- Sliding system for 3 wardrobe or closet doors
- Complete kit with accessories for easy installation
- Fixing of rails to ceiling and floor
- Maximum door weight: 70 kg each
- Door thickness: 18 mm
- Colour: bronze
- Rails: 2.7 m
- Warranty: 5 years
In stock
Delivery in 3 to 5 days
€179.84
Tax included
€152.87
Tax included
Description
SLID'UP 220 sliding system bronze anodised aluminium for 3 wardrobe doors 18 mm - 2.7 m rails - 70 kg - Floor sliding.
Maximum wardrobe width: W = 2700 mm
Maximum wardrobe height: H = 2714 mm
Panel thickness: T = 18 mm
Maximum weight per door: 70 kg
Warning: Doors not included in the kit.
The SLID'UP 220 range dresses your wardrobes and closets with an elegant design and high-end finish.
This kit includes not only a double aluminium rail with integrated fascia but also a bottom rail and a set of matching profiles for a perfect finish: handle profile, bottom profile.
Easy to install, the SLID'UP 220 sliding system for wardrobe or closet doors ensures smooth and silent movement of your doors thanks to the ball bearing hangers.
Since the hangers are spring-loaded, the doors can be easily removed and reinstalled without having to remove the rails.
The aluminium rails and profiles can be cut to the desired length to perfectly fit the dimensions of your wardrobe.
If necessary, several systems can be aligned together to create longer rails.
For customised and made-to-measure wardrobes, it is possible to combine several wooden panels or mirrors on the same door using an H profile available as an option.

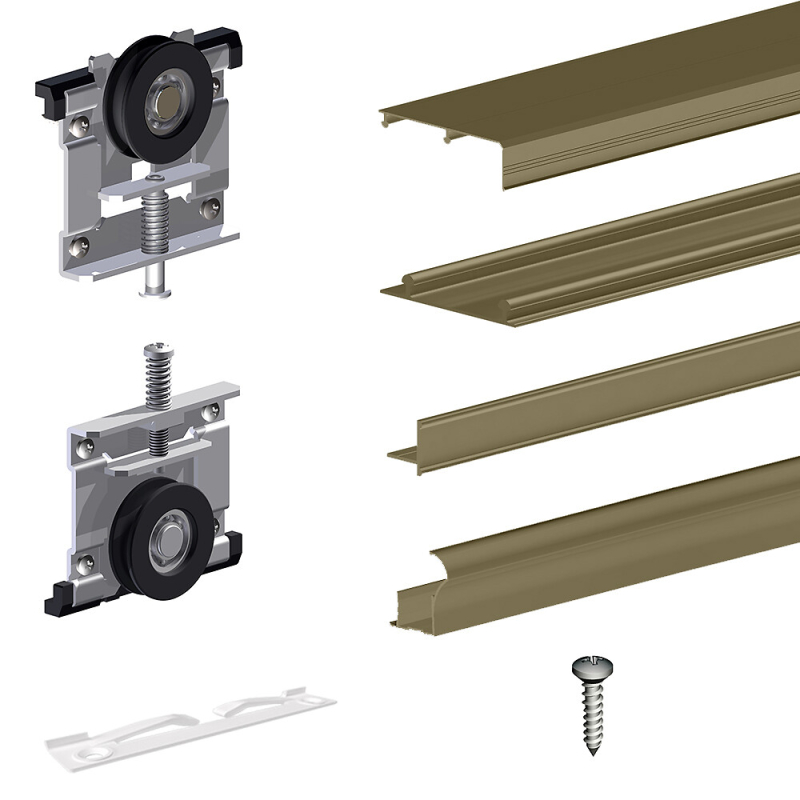

Kit contents:
- 1 top rail in bronze anodised aluminium with integrated fascia, L = 2.7 m
- 1 bottom rail in bronze anodised aluminium, L = 2.7 m
- 3 T-shaped bottom profiles in bronze anodised aluminium, L = 1.8 m
- 6 handle profiles in bronze anodised aluminium, H = 2.7 m
- 6 upper hangers
- 6 lower hangers
- 3 stops
- 1 set of screws
Options:
SU5258 : kit for an additional door - 18 mm - bronze
SU5262 : H profile for panel or mirror - 18 mm - 1.8 m - bronze
SU5266 : aluminium handle profile - 18 mm - 2.7 m - bronze
SU5280 : T-shaped bottom profile - 18 mm - 1.8 m - bronze
SU5283 : L-shaped bottom profile - 18 mm - 3 m - bronze
SU5402 : aluminium top and bottom rails 1.8 m
SU5405 : aluminium top and bottom rails 2.7 m
All spare parts for SLID'UP 220
Maximum wardrobe width: W = 2700 mm
Maximum wardrobe height: H = 2714 mm
Panel thickness: T = 18 mm
Maximum weight per door: 70 kg
Warning: Doors not included in the kit.
The SLID'UP 220 range dresses your wardrobes and closets with an elegant design and high-end finish.
This kit includes not only a double aluminium rail with integrated fascia but also a bottom rail and a set of matching profiles for a perfect finish: handle profile, bottom profile.
Easy to install, the SLID'UP 220 sliding system for wardrobe or closet doors ensures smooth and silent movement of your doors thanks to the ball bearing hangers.
Since the hangers are spring-loaded, the doors can be easily removed and reinstalled without having to remove the rails.
The aluminium rails and profiles can be cut to the desired length to perfectly fit the dimensions of your wardrobe.
If necessary, several systems can be aligned together to create longer rails.
For customised and made-to-measure wardrobes, it is possible to combine several wooden panels or mirrors on the same door using an H profile available as an option.
Kit contents:
- 1 top rail in bronze anodised aluminium with integrated fascia, L = 2.7 m
- 1 bottom rail in bronze anodised aluminium, L = 2.7 m
- 3 T-shaped bottom profiles in bronze anodised aluminium, L = 1.8 m
- 6 handle profiles in bronze anodised aluminium, H = 2.7 m
- 6 upper hangers
- 6 lower hangers
- 3 stops
- 1 set of screws
Options:
SU5258 : kit for an additional door - 18 mm - bronze
SU5262 : H profile for panel or mirror - 18 mm - 1.8 m - bronze
SU5266 : aluminium handle profile - 18 mm - 2.7 m - bronze
SU5280 : T-shaped bottom profile - 18 mm - 1.8 m - bronze
SU5283 : L-shaped bottom profile - 18 mm - 3 m - bronze
SU5402 : aluminium top and bottom rails 1.8 m
SU5405 : aluminium top and bottom rails 2.7 m
All spare parts for SLID'UP 220
Technical documentation
Installation instructions
Video presentation
Made for you
From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.
Brand
Data Sheet
| Use / Application | Closet door |
|---|---|
| B2C warranty | 5 years |
| Activity | Doors |
| Colour | Bronze |
| Door frame material | Wood |
| Door thickness | 18 mm |
| Installation type | Floor track |
| Maximum door weight | 70 kg |
| Number of doors - Track length (m) | 3 - 2,7 m |
| Number of doors | 3 |
| Made in | Europe |
| Product family | Sliding kit |
| Range | SLID'UP 220 |
| Track length (m) | 2.7 m |
| Track material | Aluminum |
| Type of system | Sliding on the floor |
| Brand | SLID'UP by Mantion |
