SLID'UP 230 anodised bronze aluminium kit for 3 sliding wardrobe doors 19 mm - 2.7 m rail - 70 kg
Reference : SU5480
- Sliding system for 3 cupboard or wardrobe doors
- Complete kit with accessories for easy installation
- Fixing of rails to ceiling and floor
- Maximum door weight: 70 kg each
- Door thickness: 19 mm
- Colour: bronze
- Rails: 2.7 m
- Warranty: 5 years
In stock
Delivery in 3 to 5 days
€182.26
Tax included
€154.92
Tax included
Description
SLID'UP 230 sliding system anodised bronze aluminium for 3 wardrobe doors 19 mm - 2.7 m rails - 70 kg - Floor sliding.
Maximum wardrobe width: W = 2700 mm
Maximum wardrobe height: H = 2714 mm
Panel thickness: T = 19 mm
Maximum weight per door: 70 kg
Warning: Doors not included in the kit.
The SLID'UP 230 range dresses your cupboards and wardrobes with an elegant design and high-end finish.
This kit includes not only a double aluminium rail with integrated fascia but also a bottom rail and a set of coordinated profiles for a perfect finish: handle profile, bottom profile.
Easy to install, the SLID'UP 230 sliding system for cupboard or wardrobe doors ensures your doors move smoothly and quietly thanks to the ball bearing mounts.
As the mounts are spring-loaded, the doors can be easily removed and reinstalled without having to remove the rails.
The aluminium rails and profiles can be cut to the desired length to perfectly fit your cupboard dimensions.
If needed, several systems can be aligned together to create longer rails.
For bespoke and customised cupboards, it is possible to combine several wooden panels or mirrors on the same door using an optional H profile.

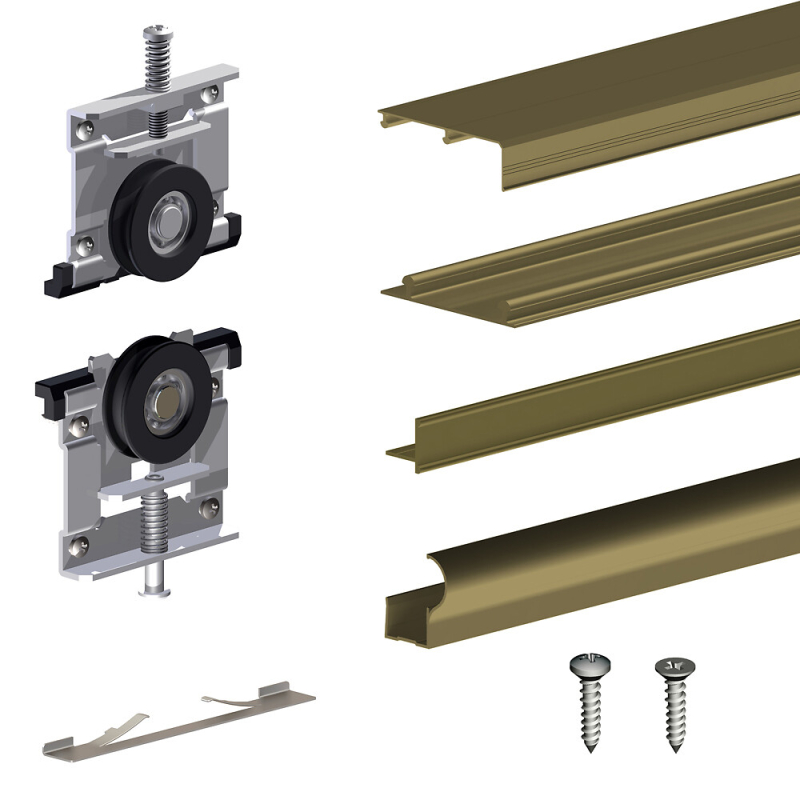

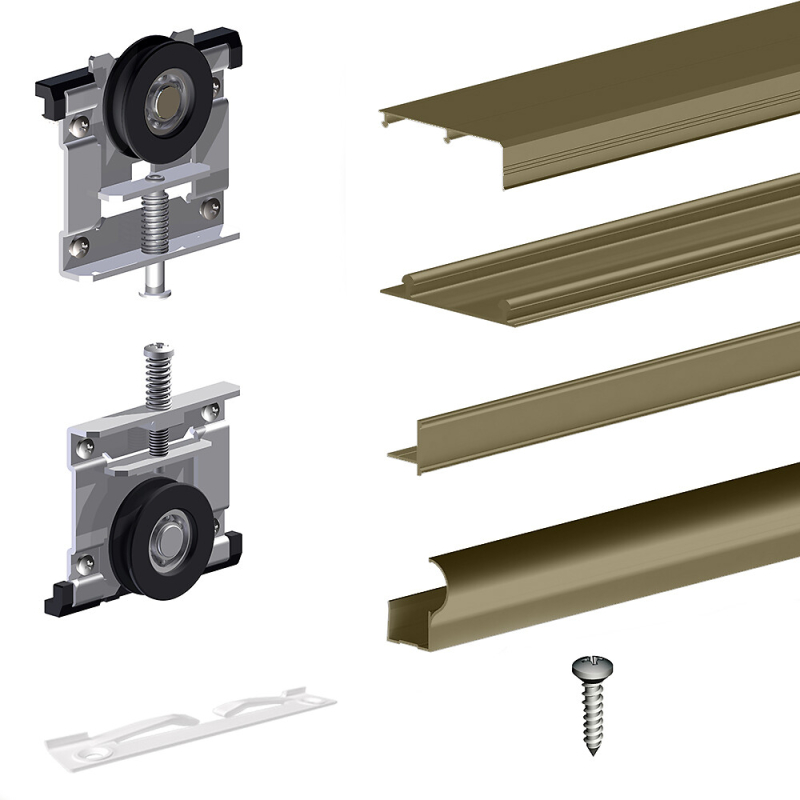

Kit contents:
- 1 anodised bronze aluminium top rail with integrated fascia, L = 2.7 m
- 1 anodised bronze aluminium bottom rail, L = 2.7 m
- 3 anodised bronze aluminium T-shaped bottom profiles, L = 1.8 m
- 6 anodised bronze aluminium handle profiles, H = 2.7 m
- 6 top mounts
- 6 bottom mounts
- 3 stops
- 1 set of screws
Options:
SU5481: kit for an additional door - 19 mm - bronze
SU5484: H profile for panel or mirror - 19 mm - 1.8 m - bronze
SU5483: aluminium handle profile - 19 mm - 2.7 m - bronze
SU5402: aluminium top and bottom rails 1.8 m
SU5405: aluminium top and bottom rails 2.7 m
All spare parts for SLID'UP 230
Maximum wardrobe width: W = 2700 mm
Maximum wardrobe height: H = 2714 mm
Panel thickness: T = 19 mm
Maximum weight per door: 70 kg
Warning: Doors not included in the kit.
The SLID'UP 230 range dresses your cupboards and wardrobes with an elegant design and high-end finish.
This kit includes not only a double aluminium rail with integrated fascia but also a bottom rail and a set of coordinated profiles for a perfect finish: handle profile, bottom profile.
Easy to install, the SLID'UP 230 sliding system for cupboard or wardrobe doors ensures your doors move smoothly and quietly thanks to the ball bearing mounts.
As the mounts are spring-loaded, the doors can be easily removed and reinstalled without having to remove the rails.
The aluminium rails and profiles can be cut to the desired length to perfectly fit your cupboard dimensions.
If needed, several systems can be aligned together to create longer rails.
For bespoke and customised cupboards, it is possible to combine several wooden panels or mirrors on the same door using an optional H profile.
Kit contents:
- 1 anodised bronze aluminium top rail with integrated fascia, L = 2.7 m
- 1 anodised bronze aluminium bottom rail, L = 2.7 m
- 3 anodised bronze aluminium T-shaped bottom profiles, L = 1.8 m
- 6 anodised bronze aluminium handle profiles, H = 2.7 m
- 6 top mounts
- 6 bottom mounts
- 3 stops
- 1 set of screws
Options:
SU5481: kit for an additional door - 19 mm - bronze
SU5484: H profile for panel or mirror - 19 mm - 1.8 m - bronze
SU5483: aluminium handle profile - 19 mm - 2.7 m - bronze
SU5402: aluminium top and bottom rails 1.8 m
SU5405: aluminium top and bottom rails 2.7 m
All spare parts for SLID'UP 230
Technical documentation
Installation instructions
Video presentation
Made for you
From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.
Brand
Data Sheet
| Use / Application | Closet door |
|---|---|
| B2C warranty | 5 years |
| Activity | Doors |
| Colour | Bronze |
| Door frame material | Wood |
| Door thickness | 19 mm |
| Installation type | Floor track |
| Maximum door weight | 70 kg |
| Number of doors - Track length (m) | 3 - 2,7 m |
| Number of doors | 3 |
| Made in | Europe |
| Product family | Sliding kit |
| Range | SLID'UP 230 |
| Track length (m) | 2.7 m |
| Track material | Aluminum |
| Type of system | Sliding on the floor |
| Brand | SLID'UP by Mantion |
Guaranteed quality
SLID'UP by Mantion guarantees all its sliding systems for 5 years and its motors for 2 years.
Fast delivery
Delivery of in-stock products is guaranteed within 3 to 5 days to your home. Shipping is carried out from our company located in France.
Secure payment
Online payment for your orders is fully secured by credit card, 4x installment with no fees, PayPal, check, or bank transfer.
