SLID'UP 220 kit natural anodised aluminium for 3 sliding wardrobe doors 18 mm - 2.7 m rail - 70 kg
Reference : SU5160
- Sliding system for 3 wardrobe or dressing room doors
- Complete kit with accessories for easy installation
- Fixing of rails to ceiling and floor
- Maximum door weight: 70 kg each
- Door thickness: 18 mm
- Colour: silver
- Rails: 2.7 m
- Warranty: 5 years
In stock
Delivery in 3 to 5 days
€179.84
Tax included
€152.87
Tax included
Description
SLID'UP 220 sliding system natural anodised aluminium for 3 wardrobe doors 18 mm - 2.7 m rails - 70 kg - Floor sliding.
Maximum wardrobe width: W = 2700 mm
Maximum wardrobe height: H = 2714 mm
Panel thickness: T = 18 mm
Maximum weight per door: 70 kg
Warning: Doors not included in the kit.
The SLID'UP 220 range dresses your cupboards and wardrobes with an elegant design and premium finish.
This kit includes not only a double aluminium rail with integrated fascia but also a bottom rail and a set of matching profiles for a perfect finish: handle profile, bottom profile.
Easy to install, the SLID'UP 220 sliding system for wardrobe or cupboard doors ensures smooth and silent movement of your doors thanks to the ball bearing mounts.
As the mounts are spring-loaded, the doors can be easily removed and reinstalled without having to remove the rails.
The aluminium rails and profiles can be cut to the desired length to perfectly fit the dimensions of your cupboard.
If necessary, several systems can be aligned together to create longer rails.
For customised, made-to-measure cupboards, it is possible to combine several wooden panels or mirrors on the same door using an optional H profile.

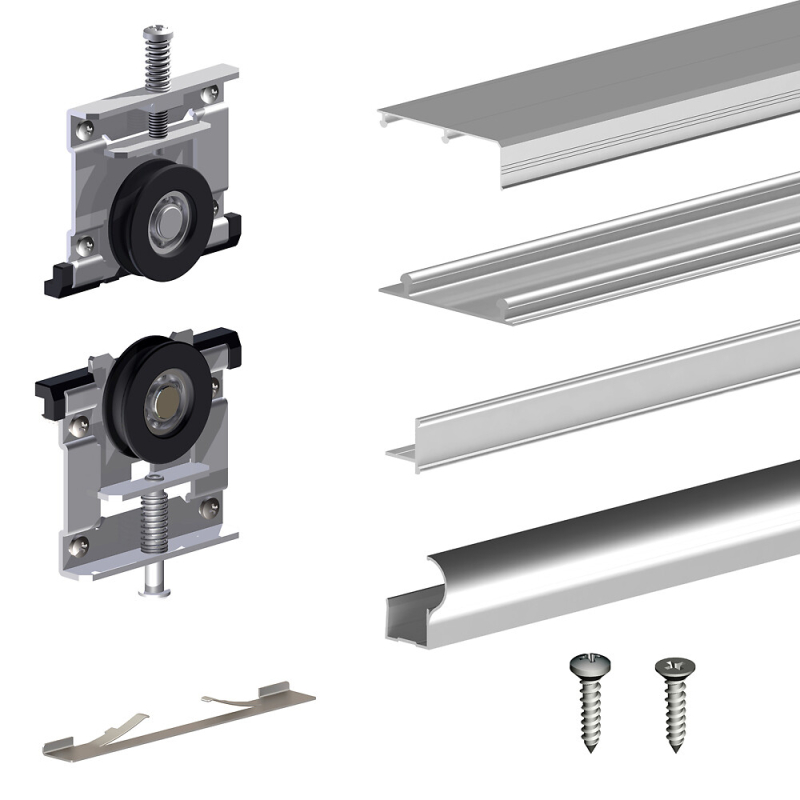

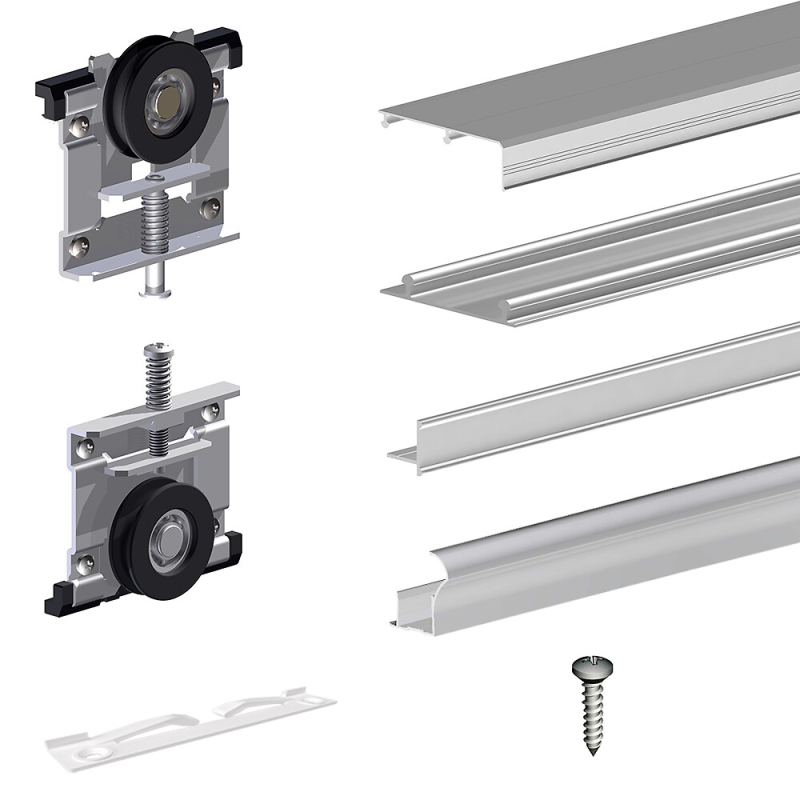

Kit contents:
- 1 upper rail in natural anodised aluminium with integrated fascia, L = 2.7 m
- 1 lower rail in natural anodised aluminium, L = 2.7 m
- 3 T-shaped bottom profiles in natural anodised aluminium, L = 1.8 m
- 6 handle profiles in natural anodised aluminium, H = 2.7 m
- 6 upper mounts
- 6 lower mounts
- 3 stops
- 1 set of screws
Options:
SU5256: kit for an additional door - 18 mm - silver
SU5260: H profile for panel or mirror - 18 mm - 1.8 m - silver
SU5266: aluminium handle profile - 18 mm - 2.7 m - silver
SU5278: T-shaped bottom profile - 18 mm - 1.8 m - silver
SU5281: L-shaped bottom profile - 18 mm - 3 m - silver
SU5402: aluminium upper and lower rails 1.8 m
SU5405: aluminium upper and lower rails 2.7 m
All spare parts for SLID'UP 220
Maximum wardrobe width: W = 2700 mm
Maximum wardrobe height: H = 2714 mm
Panel thickness: T = 18 mm
Maximum weight per door: 70 kg
Warning: Doors not included in the kit.
The SLID'UP 220 range dresses your cupboards and wardrobes with an elegant design and premium finish.
This kit includes not only a double aluminium rail with integrated fascia but also a bottom rail and a set of matching profiles for a perfect finish: handle profile, bottom profile.
Easy to install, the SLID'UP 220 sliding system for wardrobe or cupboard doors ensures smooth and silent movement of your doors thanks to the ball bearing mounts.
As the mounts are spring-loaded, the doors can be easily removed and reinstalled without having to remove the rails.
The aluminium rails and profiles can be cut to the desired length to perfectly fit the dimensions of your cupboard.
If necessary, several systems can be aligned together to create longer rails.
For customised, made-to-measure cupboards, it is possible to combine several wooden panels or mirrors on the same door using an optional H profile.
Kit contents:
- 1 upper rail in natural anodised aluminium with integrated fascia, L = 2.7 m
- 1 lower rail in natural anodised aluminium, L = 2.7 m
- 3 T-shaped bottom profiles in natural anodised aluminium, L = 1.8 m
- 6 handle profiles in natural anodised aluminium, H = 2.7 m
- 6 upper mounts
- 6 lower mounts
- 3 stops
- 1 set of screws
Options:
SU5256: kit for an additional door - 18 mm - silver
SU5260: H profile for panel or mirror - 18 mm - 1.8 m - silver
SU5266: aluminium handle profile - 18 mm - 2.7 m - silver
SU5278: T-shaped bottom profile - 18 mm - 1.8 m - silver
SU5281: L-shaped bottom profile - 18 mm - 3 m - silver
SU5402: aluminium upper and lower rails 1.8 m
SU5405: aluminium upper and lower rails 2.7 m
All spare parts for SLID'UP 220
Technical documentation
Installation instructions
Video presentation
Made for you
From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.
Brand
Data Sheet
| Use / Application | Closet door |
|---|---|
| B2C warranty | 5 years |
| Activity | Doors |
| Colour | Silver |
| Door frame material | Wood |
| Door thickness | 18 mm |
| Installation type | Floor track |
| Maximum door weight | 70 kg |
| Number of doors - Track length (m) | 3 - 2,7 m |
| Number of doors | 3 |
| Made in | Europe |
| Product family | Sliding kit |
| Range | SLID'UP 220 |
| Track length (m) | 2.7 m |
| Track material | Aluminum |
| Type of system | Sliding on the floor |
| Brand | SLID'UP by Mantion |
