Radio motorised kit for sliding shutter with 2 panels - maximum bay width : 1.25 m

Reference : SU9048

Complete pack for front mounting (without shutter)
M500 radio motorisation for 2-leaf sliding shutters
Reversible system
2 leaves up to 80 kg max
3 m aluminium rail
Bay up to 1.25 m
Warranty: 2 years

In stock

Delivery in 3 to 5 days

€1,209.67 Tax included

€907.25 Tax included Ou 3x 302.42 € sans frais

Control type

Number of leaves - Bay width (m)

Selected configuration: SU9048

Quantity

Description

Warning: Shutter not included in the kit.

Complete pack allowing motorised movement of your sliding shutters, 2 panels.
This system is designed to move 2 sliding panels up to 80 kg (wood, aluminium, PVC, ...) for façade mounting.
Fixing of the strip by clip: simple and effective!
Quick and easy installation thanks to the monobloc angle rail.

SPECIFICATIONS TO RESPECT:
- Maximum bay width: 1.25 m
- Capacity per panel: 80 kg
- Panel thickness: 27-40 mm

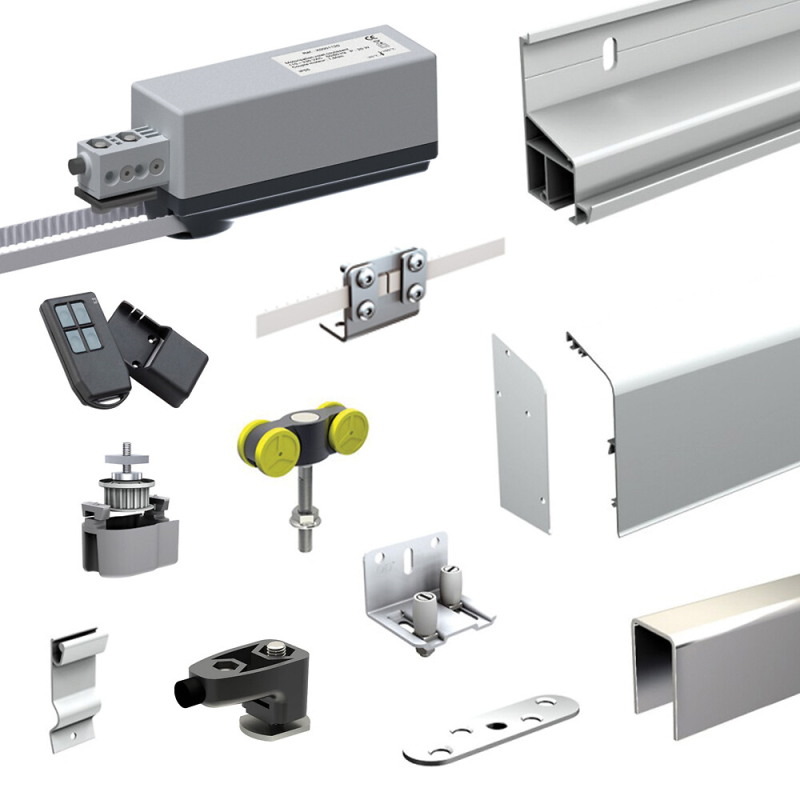

KIT CONTENT:
- 1 motor for sliding shutter M500
- 1 wired harness length = 3 m
- 1 remote control
- 1 return pulley for belt
- 1 junction bracket for belt
- 1 reinforced toothed belt length = 7.5 m
- 4 stainless steel plates to screw on edge for M8 screws (minimum panel 20 mm)
- 1 single-track aluminium rail raw length = 3 m with integrated bracket
- 1 aluminium strip raw length = 3 m
- 1 set of end caps for monobloc rail (2 raw aluminium end caps, 8 stainless steel screws, 8 raw aluminium clamps)
- 2 stops with stainless steel screws
- 4 mounts capacity 80 kg/panel M8X93 stainless steel screws
- 5 adjustable bottom guides (2 nylon olives each)
- 1 U-profile in aluminium length = 2 m

Technical documentation

Installation instructions

User manual

Made for you

From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.

Brand

Data Sheet

Use / Application	Sliding shutter
B2C warranty	2 years
Activity	Doors
Control type	Radio
Material	Stainless steel
Maximum bay width	1250 mm
Number of leaves - Bay width (m)	2 - 1,25 m
Made in	France
Product family	Sliding kit with valance
Range	SLID'UP M500
Track length (m)	3 m
Brand	SLID'UP by Mantion

Guaranteed quality

SLID'UP by Mantion guarantees all its sliding systems for 5 years and its motors for 2 years.

Fast delivery

Delivery of in-stock products is guaranteed within 3 to 5 days to your home. Shipping is carried out from our company located in France.

Secure payment

Online payment for your orders is fully secured by credit card, 4x installment with no fees, PayPal, check, or bank transfer.

FAQ

Do you offer installers ?

SLID’UP by Mantion distributes its products throughout Belgium, Luxembourg, and the Netherlands to private customers, but does not have partner installers. For this, you can reach out to a craftsman near your home.

Lire la réponse détaillée

Can I make an intermediate stop on my motorized shutters ?

Yes, whether your SLID'UP by Mantion motorized shutters are swinging, sliding, or rolling, it is entirely possible to interrupt their opening or closing at any time to position them as you prefer. To do this, simply press the switch or the remote ...

Lire la réponse détaillée

Can I control my SLID'UP by Mantion motorized shutters from my smartphone ?

To control SLID’UP by Mantion shutter motors from your smartphone, you will need a compatible home automation hub. Only wired motors can be connected to a home automation system. For more information, contact our technical support team, who can ...

Lire la réponse détaillée

Where can I find the installation manual for a product ?

All installation guides and user manuals for SLID’UP products can be downloaded in PDF format from our online store. To do this, go to the page of the product you are looking for and click on the PDF icon of the corresponding document. ...

Lire la réponse détaillée

Is the programming of the motorisations maintained when changing the batteries in the remote control ?

No need to worry, if you need to change the batteries in your remote control or wireless switch, the programming of your SLID'UP by Mantion shutter motorisations is fully retained. There is no need to reprogram your SLID'UP by Mantion motorisatio ...

Lire la réponse détaillée
