-25%
New

Wired motorised pack for sliding shutter with 2 leaves - bay width : max 1.25 m

Reference : SU9045

Complete pack for front mounting (without shutter)
M500 wired motorisation for 2-leaf sliding shutters
Reversible system
2 leaves with a maximum of 80 kg each
3 m aluminium rail
Bay up to 1.25 m
Warranty: 2 years

In stock

Delivery in 3 to 5 days

€1,162.21 Tax included

€871.65 Tax included Ou 3x 290.55 € sans frais

Control type

Number of leaves - Bay width (m)

Selected configuration: SU9045

Quantity

Description

Warning: Shutter not included in the kit.

Complete pack allowing motorised movement of your sliding shutters, 2 panels.
This system is designed to move 2 sliding panels up to 80 kg (wood, aluminium, PVC, ...) for façade mounting.
Fixing of the cover strip by clip: simple and effective!
Quick and easy installation thanks to the one-piece angle rail.

SPECIFICATIONS TO RESPECT:
- Maximum bay width: 1.25 m
- Capacity per panel: 80 kg
- Panel thickness: 27-40 mm

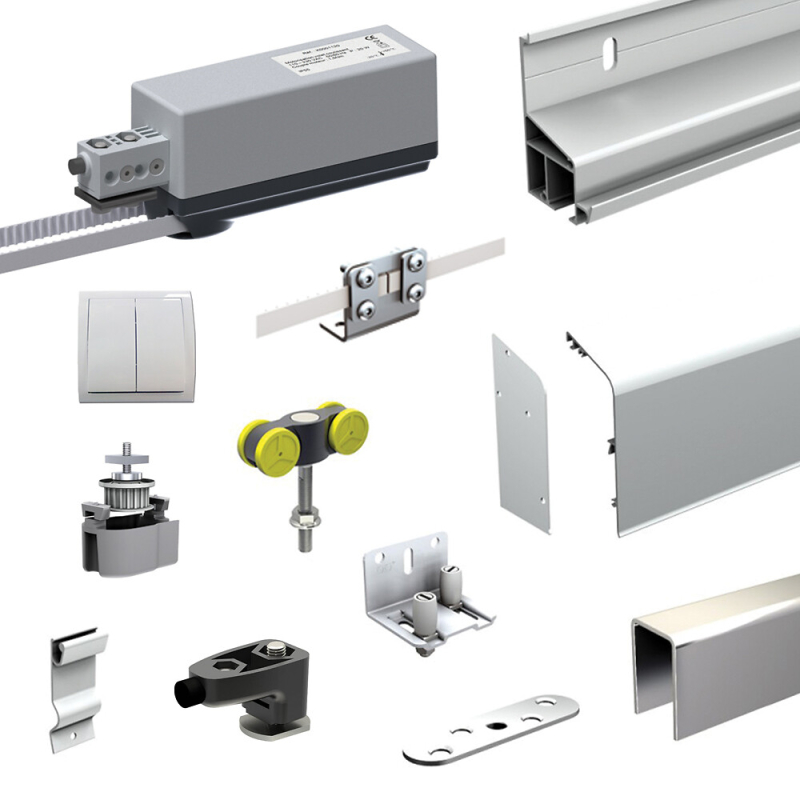

CONTENTS OF THE KIT:
- 1 motor for sliding shutter M500
- 1 wired harness length = 3 m
- 1 wired double push-button switch
- 1 return pulley for belt
- 1 belt junction bracket
- 1 reinforced toothed belt length = 7.5 m
- 4 stainless steel plates to screw on edge for M8 screws (minimum panel 20 mm)
- 1 single track rail in raw aluminium with integrated bracket length = 3 m
- 1 cover strip in raw aluminium length = 3 m
- 1 set of end caps for one-piece rail (2 end caps in raw aluminium, 8 stainless steel screws, 8 clamps in raw aluminium)
- 2 stops with stainless steel screws
- 4 mounts capacity 80 kg/panel M8X93 stainless steel screws
- 5 adjustable bottom guides (2 nylon olives each)
- 1 U-profile in aluminium length = 2 m

Technical documentation

Installation instructions

User manual

Made for you

From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.

Brand

Data Sheet

Use / Application	Sliding shutter
B2C warranty	2 years
Activity	Doors
Control type	Wired
Material	Stainless steel
Maximum bay width	1250 mm
Number of leaves - Bay width (m)	2 - 1,25 m
Made in	France
Product family	Sliding kit with valance
Range	SLID'UP M500
Track length (m)	3 m
Brand	SLID'UP by Mantion

Guaranteed quality

SLID'UP by Mantion guarantees all its sliding systems for 5 years and its motors for 2 years.

Fast delivery

Delivery of in-stock products is guaranteed within 3 to 5 days to your home. Shipping is carried out from our company located in France.

Secure payment

Online payment for your orders is fully secured by credit card, 4x installment with no fees, PayPal, check, or bank transfer.
