Radio motorised kit for sliding shutter 1 leaf - bay width : max 1.20 m

Reference : SU9047

Complete pack for front mounting (without shutter)
M500 radio motorisation for a single sliding shutter
Reversible system
1 leaf with a maximum of 80 kg
3 m aluminium rail
Opening up to 1.20 m
Warranty: 2 years

In stock

Delivery in 3 to 5 days

€1,097.39 Tax included

€823.04 Tax included Ou 3x 274.35 € sans frais

Control type

Number of leaves - Bay width (m)

Selected configuration: SU9047

Quantity

Description

Warning: Shutter not included in the kit.

Complete pack allowing motorised movement of a sliding shutter, 1 leaf.
This system is designed to move a sliding panel up to 80 kg (wood, aluminium, PVC, ...) for front mounting.
Fixing of the strip by clip: simple and effective!
Quick and easy installation thanks to the monobloc angle rail.

SPECIFICATIONS TO RESPECT:
- Maximum bay width: 1.20 m
- Capacity per panel: 80 kg
- Panel thickness: 27-40 mm

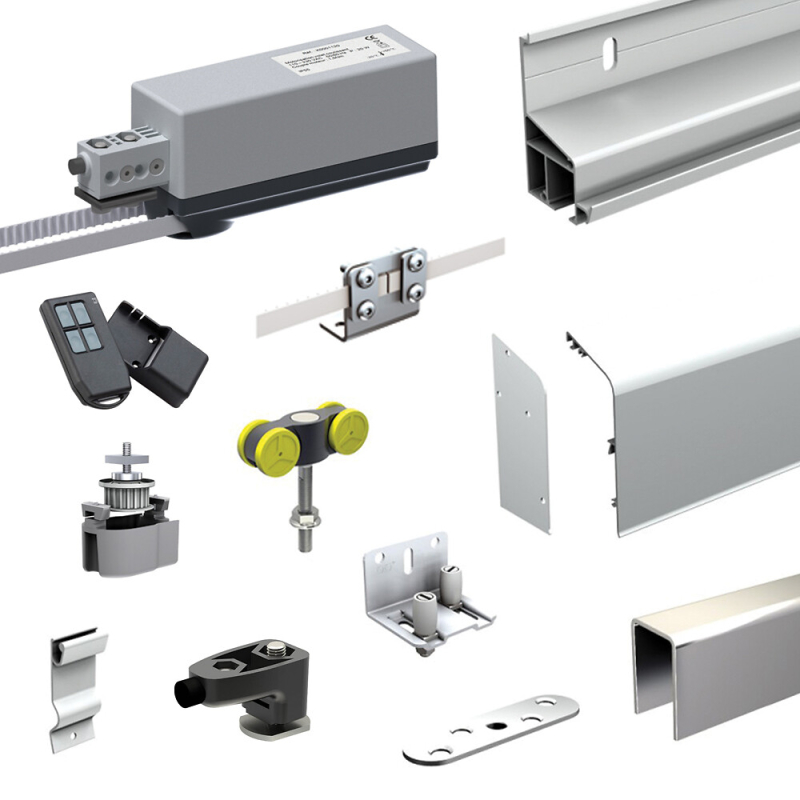

KIT CONTENT:
- 1 motor for sliding shutter M500
- 1 wired harness length = 3 m
- 1 4-button radio remote control
- 1 return pulley for belt
- 1 belt junction bracket
- 1 reinforced toothed belt length = 7.5 m
- 2 stainless steel plates to screw on edge for M8 screws (minimum panel 20 mm)
- 1 single-track aluminium rail with integrated bracket length = 3 m
- 1 aluminium strip length = 3 m
- 1 set of end caps for monobloc rail (2 aluminium end caps, 8 stainless steel screws, 8 aluminium clamps)
- 2 stops with stainless steel screws
- 2 mounts capacity 80 kg/panel M8X93 stainless steel screws
- 3 adjustable bottom guides (2 nylon olives each)
- 1 U-profile in aluminium length = 2 m

Technical documentation

Installation instructions

User manual

Made for you

From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.

Brand

Data Sheet

Use / Application	Sliding shutter
B2C warranty	2 years
Activity	Doors
Control type	Radio
Material	Stainless steel
Maximum bay width	1200 mm
Number of leaves - Bay width (m)	1 - 1,20 m
Made in	France
Product family	Sliding kit with valance
Range	SLID'UP M500
Track length (m)	3 m
Brand	SLID'UP by Mantion

Guaranteed quality

SLID'UP by Mantion guarantees all its sliding systems for 5 years and its motors for 2 years.

Fast delivery

Delivery of in-stock products is guaranteed within 3 to 5 days to your home. Shipping is carried out from our company located in France.

Secure payment

Online payment for your orders is fully secured by credit card, 4x installment with no fees, PayPal, check, or bank transfer.
