Wired motorised kit for sliding shutter with 1 panel - bay width : max. 1.20 m

Reference : SU9044

Complete pack for front mounting (without shutter)
Wired M500 motorisation for a single sliding shutter
Reversible system
1 leaf up to 80 kg max
3 m aluminium rail
Bay up to 1.20 m
Warranty: 2 years

In stock

Delivery in 3 to 5 days

€1,074.12 Tax included

€805.59 Tax included Ou 3x 268.53 € sans frais

Control type

Number of leaves - Bay width (m)

Selected configuration: SU9044

Quantity

Description

Warning: Shutter not included in the kit.

Complete pack allowing the motorised movement of a sliding shutter, 1 leaf.
This system is designed to move a sliding panel up to 80 kg (wood, aluminium, PVC, ...) for front mounting.
Fixing of the fascia by clip: simple and effective!
Quick and easy installation thanks to the monobloc angle rail.

SPECIFICATIONS TO RESPECT:
- Maximum bay width: 1.20 m
- Capacity per panel: 80 kg
- Panel thickness: 27-40 mm

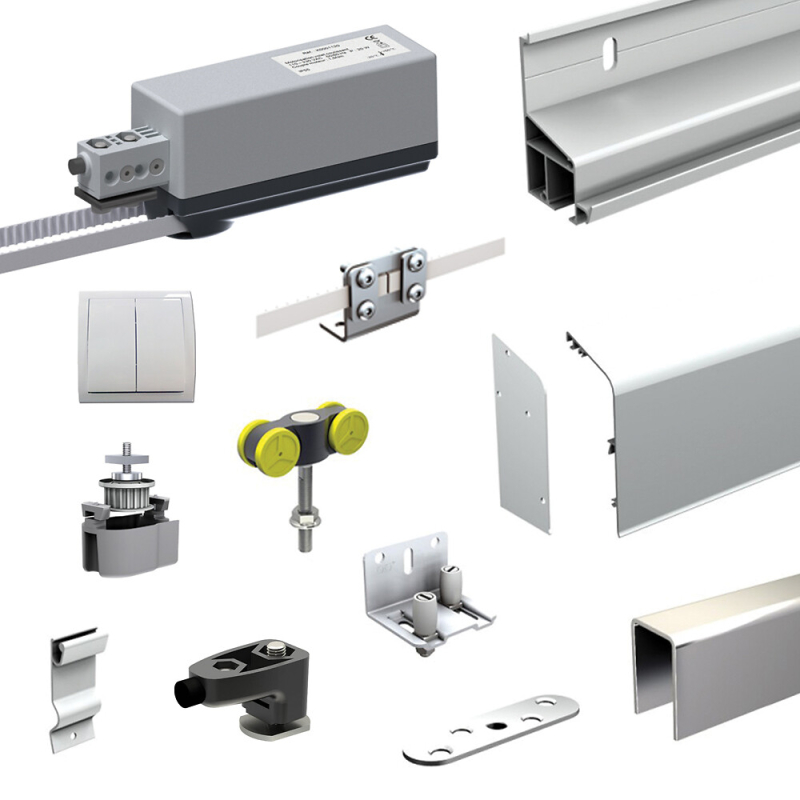

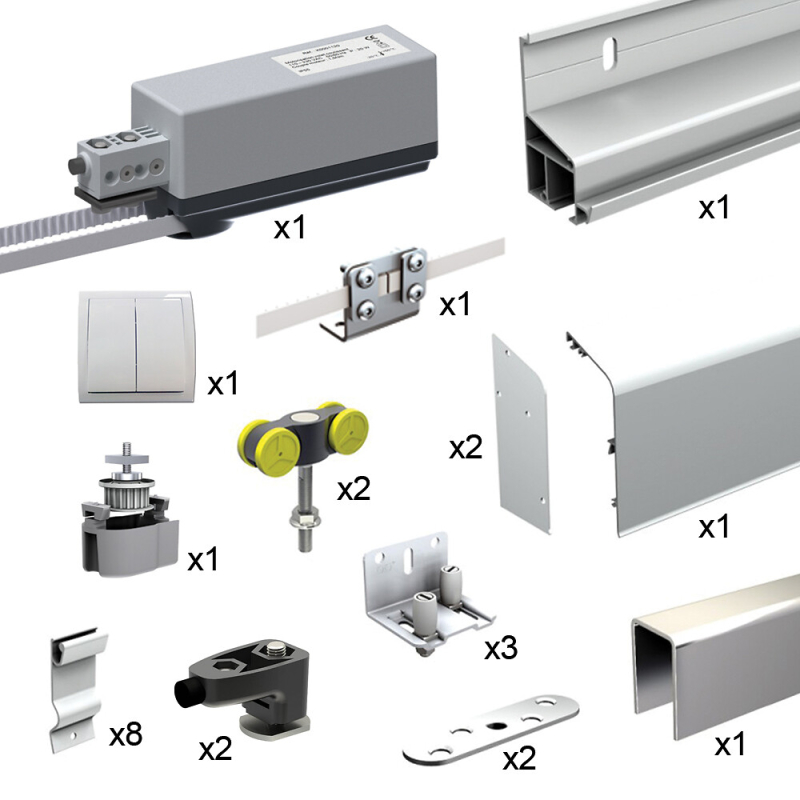

KIT CONTENT:
- 1 motor for sliding shutter M500
- 1 wired harness length = 3 m
- 1 wired double push-button switch
- 1 return pulley for belt
- 1 junction bracket for belt
- 1 reinforced toothed belt length = 7.5 m
- 2 stainless steel plates to be screwed on edge for M8 screws (minimum panel 20 mm)
- 1 single track aluminium rail with integrated bracket length = 3 m
- 1 aluminium fascia length = 3 m
- 1 set of end caps for monobloc rail (2 end caps in raw aluminium, 8 stainless steel screws, 8 clamps in raw aluminium)
- 2 stops with stainless steel screws
- 2 mounts capacity 80 kg/panel M8X93 stainless steel screws
- 3 adjustable bottom guides (2 nylon olives each)
- 1 U-profile in aluminium length = 2 m

Technical documentation

Installation instructions

User manual

Made for you

From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.

Brand

Data Sheet

Use / Application	Sliding shutter
B2C warranty	2 years
Activity	Doors
Control type	Wired
Material	Stainless steel
Maximum bay width	1200 mm
Number of leaves - Bay width (m)	1 - 1,20 m
Made in	France
Product family	Sliding kit with valance
Range	SLID'UP M500
Track length (m)	3 m
Brand	SLID'UP by Mantion
