Wired motorised pack for sliding shutter 1 leaf - bay width : 0.70 m max
Reference : SU9043
- Complete pack for front mounting (without shutter)
- M500 wired motorisation for a 1-leaf sliding shutter
- Reversible system
- 1 leaf up to 80 kg max
- 2 m aluminium track
- Opening up to 0.70 m
- Guarantee: 2 years
In stock
Delivery in 3 to 5 days
€965.19
Tax included
Ou 3x 321.73 € sans frais
Description
Warning: Shutter not included in the kit.
Complete pack allowing the motorised movement of a sliding shutter, 1 leaf.
This system is designed to move a sliding panel up to 80 kg (wood, aluminium, PVC, ...) for front mounting.
Fixing of the fascia by clip: simple and effective!
Quick and easy installation thanks to the one-piece angle track.
SPECIFICATIONS TO BE RESPECTED:
- Maximum bay width: 0.70 m
- Capacity per panel: 80 kg
- Panel thickness: 27-40 mm

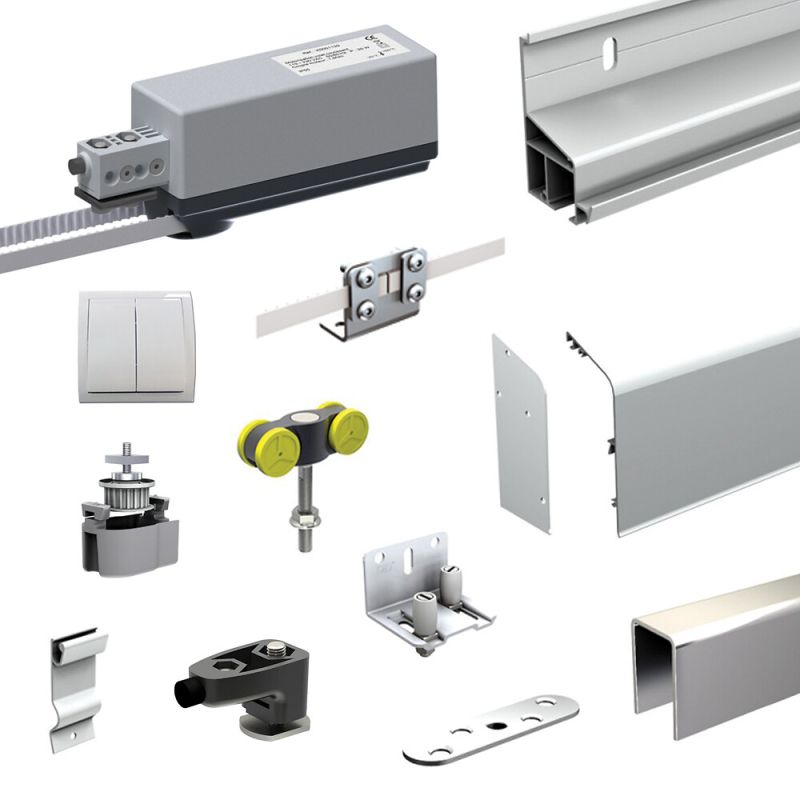

CONTENTS OF THE KIT:
- 1 motor for sliding shutter M500
- 1 wired harness length = 3 m
- 1 wired double push-button switch
- 1 return pulley for belt
- 1 angle bracket for belt junction
- 1 reinforced toothed belt length = 5 m
- 2 stainless steel plates to be screwed on edge for M8 screws (panel minimum 20 mm)
- 1 single track aluminium raw track with integrated angle length = 2 m
- 1 aluminium raw fascia length = 2 m
- 1 set of end caps for one-piece track (2 aluminium raw end caps, 8 stainless steel screws, 8 aluminium raw clamps)
- 2 end stops with stainless steel screws
- 2 mounts capacity 80 kg/panel M8X93 stainless steel screws
- 3 adjustable bottom guides (2 nylon olives each)
- 1 U-profile aluminium length = 2 m
Technical documentation
Installation instructions
Made for you
From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.
Brand
Data Sheet
| Use / Application | Sliding shutter |
|---|---|
| B2C warranty | 2 years |
| Activity | Doors |
| Control type | Wired |
| Material | Stainless steel |
| Maximum bay width | 700 mm |
| Number of leaves - Bay width (m) | 1 - 0,70 m |
| Made in | France |
| Product family | Sliding kit with valance |
| Range | SLID'UP M500 |
| Track length (m) | 2 m |
| Brand | SLID'UP by Mantion |
