Double motorisation for 2-leaf SLID'UP URANUS radio shutter - Ø 14 mm hinge pin
Reference : W0002260
- Invisible double motorisation Ø 14 mm for hinged shutters
- Radio control with remote control
- For 2 panels, left and right
- Maximum panel weight: 60 kg
- Made in France
- Warranty: 2 years
- Quantity: 4
In stock
Delivery in 3 to 5 days
€1,208.79
Tax included
€785.71
Tax included
Ou 3x 261.90 € sans frais
Description
Warning: Shutter not included in the kit, nor the 24V power supply, nor the resin kit.
Double recessed motorisation for 2-leaf URANUS radio shutters - hinge Ø 14.
Our URANUS double motorisation products are to be used for large surface shutters (see technical specifications in the installation manual).
Motorise your hinged shutters discreetly, preserving the character of your façade, thanks to the innovative motorised hinge system recessed directly into the wall.
The URANUS motorisations adapt to all types of hinged shutters (wood, PVC, aluminium...), whether new or for renovation.
Associated with this product, we recommend the use of hinges with a minimum thickness of 5 mm, in steel or stainless steel.
For more details, please consult the installation manual.
Specifications to be respected:
- Leaf width: 30 cm min / 90 cm max
- Max leaf surface: 2 m²
- Max leaf weight: 60 kg
- Min distance from hinge axis to shutter edge: 30 mm
- Min hinge thickness (steel or stainless steel): 5 mm
Description:
- Discreet: a completely invisible motorised hinge system.
- Secure: obstacle detection according to NF 26-341 standard.
- Ease of use: control the opening of all or part of your shutters.
- New or renovation: adapts to all types of hinged shutters including linked leaves with our multi-leaf stay.
- Product designed and manufactured in our workshops in France, individually tested and guaranteed for 2 years.

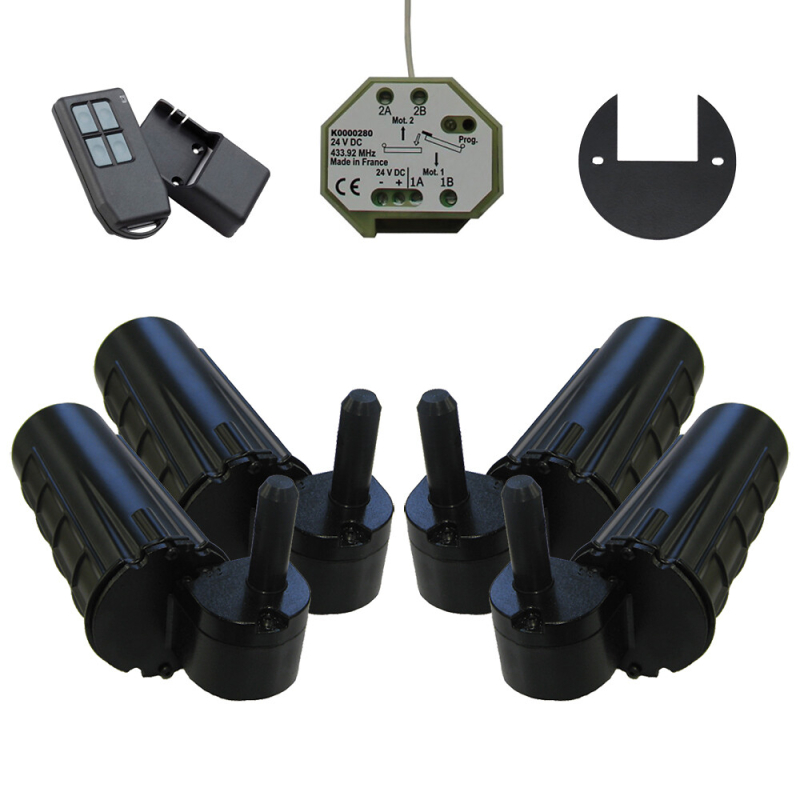

Kit contents:
- 2 right motors + 2 left motors (viewed from outside)
- 1 control box
- 1 remote control
- 1 set of screws (screws, seal...)
Other colours available as an option: contact us by email.
Options:
SU9300: stainless steel stay for linked leaves
SU9302: chemical sealing kit for 2 motors
SU9304: drilling template for hinge Ø 14 to 18
SU9309: programmable radio timer
SU9310: programmable radio repeater (to double the range)
SU9311: programmable radio remote control
SU9313: programmable radio switch
Power supply, switch-mode or recessed
Electromagnetic or electromechanical locking
All spare parts for SLID'UP URANUS
Double recessed motorisation for 2-leaf URANUS radio shutters - hinge Ø 14.
Our URANUS double motorisation products are to be used for large surface shutters (see technical specifications in the installation manual).
Motorise your hinged shutters discreetly, preserving the character of your façade, thanks to the innovative motorised hinge system recessed directly into the wall.
The URANUS motorisations adapt to all types of hinged shutters (wood, PVC, aluminium...), whether new or for renovation.
Associated with this product, we recommend the use of hinges with a minimum thickness of 5 mm, in steel or stainless steel.
For more details, please consult the installation manual.
Specifications to be respected:
- Leaf width: 30 cm min / 90 cm max
- Max leaf surface: 2 m²
- Max leaf weight: 60 kg
- Min distance from hinge axis to shutter edge: 30 mm
- Min hinge thickness (steel or stainless steel): 5 mm
Description:
- Discreet: a completely invisible motorised hinge system.
- Secure: obstacle detection according to NF 26-341 standard.
- Ease of use: control the opening of all or part of your shutters.
- New or renovation: adapts to all types of hinged shutters including linked leaves with our multi-leaf stay.
- Product designed and manufactured in our workshops in France, individually tested and guaranteed for 2 years.
Kit contents:
- 2 right motors + 2 left motors (viewed from outside)
- 1 control box
- 1 remote control
- 1 set of screws (screws, seal...)
Other colours available as an option: contact us by email.
Options:
SU9300: stainless steel stay for linked leaves
SU9302: chemical sealing kit for 2 motors
SU9304: drilling template for hinge Ø 14 to 18
SU9309: programmable radio timer
SU9310: programmable radio repeater (to double the range)
SU9311: programmable radio remote control
SU9313: programmable radio switch
Power supply, switch-mode or recessed
Electromagnetic or electromechanical locking
All spare parts for SLID'UP URANUS
Technical documentation
Installation instructions
Video presentation
Made for you
From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.
Brand
Data Sheet
| Use / Application | Swinging shutter |
|---|---|
| B2C warranty | 2 years |
| Activity | Doors |
| Closing time | 18 s |
| Colour | Black |
| Control type | Radio |
| For shutter or leaf | 2 leaves |
| Hinge diameter | 14 mm |
| Limit switch type | Dynamic (stop on obstable) |
| Maximum power | 100 W |
| Max leaf surface | 2 m² |
| Min. distance hinge axis / leaf edge | 30 mm |
| Motor position |
On the left On the right |
| Motor torque | 25 Nm |
| Motor type | Motoréducteur à courant continu |
| Motor voltage | 24 V CC |
| Mounting type | Built-in motorized hinge |
| Number of leaves | 2 leaves |
| Number of motors | 4 |
| Number of motors / leaf | 2 |
| Opening time | 18 s |
| Operating temperature | -20°C to 60°C |
| Made in | France |
| Product family | Motorization kit |
| Protection class | IPX4 |
| Radio frequency | 433.92 MHz |
| Range | SLID'UP URANO |
| Rotation speed | 1.9 rpm |
| Supply voltage | 230 V CA |
| Use | Exterior |
| Brand | SLID'UP by Mantion |
