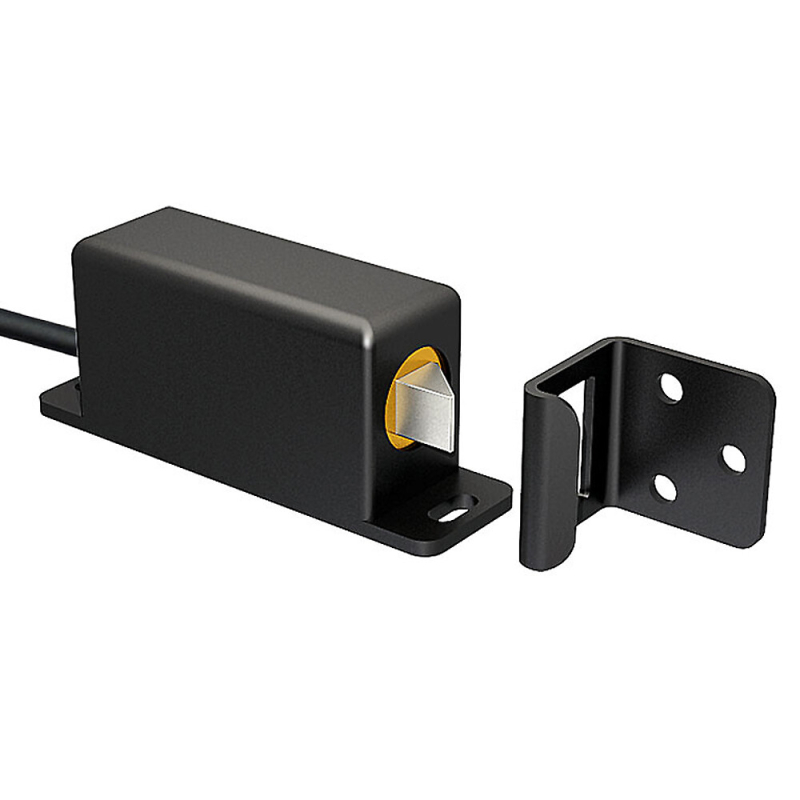

Electromechanical closure for hinged shutter - side cable - right bolt

Reference : SU9328

Ensures the shutter panels remain in the closed position
Improved comfort and safety
Side cable outlet and latch on the right
Guarantee: 2 years
Quantity: 1

In stock

Delivery in 3 to 5 days

€195.60 Tax included

Selected configuration: SU9328

Quantity

Description

Closing system ensuring the retention of hinged shutters in the closed position. This kit contains an electromechanical lock for a pair of hinged shutters to be installed at the top or bottom.

Side cable outlet and latch on the right. To choose your product correctly, consult the installation guide.

The electromechanical lock provides comfort and security:
- retention of the shutter in strong winds
- deterrent effect against break-ins

Technical characteristics:
- Holding force: 80 daN / point
- Supply voltage: 24 VDC
- Rated power at 20°C: 7.5 W
- Holding type: Current emission (unlocking is achieved by energising the coil)
- Connection: Wired (3 m cable length)
- Standard: CE
- Dimensions: 36 x 84 x 25 mm

Kit contents:
- 1 electromechanical lock (3 m cable length)
- 1 strike plate
- 2 stainless steel A2 5 x 40 pozi screws
- 3 wood pozi 4 x 25 zinc-plated white screws
- 2 plugs

Technical documentation

Installation instructions

Made for you

From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.

Brand

Data Sheet

Use / Application	Swinging shutter
B2C warranty	2 years
Activity	Doors
Cable output position	Lateral
Holding type	Current emitting
Latch position	Right
Maximum power	7.5 W
Made in	France
Product family	Closing
Délai d'expédition du produit	2
Brand	SLID'UP by Mantion
