Wired motorisation for right single-leaf shutter SLID'UP URANUS - 14 mm hinge pin diameter
Reference : W0002250
- Invisible motorisation Ø 14 mm for hinged shutters
- Wired control with switch
- For 1 right leaf (viewed from outside)
- Maximum leaf weight: 50 kg
- Made in France
- Warranty: 2 years
- Quantity: 1
In stock
Delivery in 3 to 5 days
€369.87
Tax included
€240.42
Tax included
Ou 3x 80.14 € sans frais
Description
Warning: Shutter not included in the kit, nor the 24V power supply, nor the resin kit.
Recessed motorisation for right single-leaf URANUS shutter - hinge Ø 14.
Motorise your hinged shutters discreetly, preserving the character of your façade, thanks to the innovative motorised hinge system recessed directly into the wall.
The URANUS motorisations adapt to all types of hinged shutters (wood, PVC, aluminium...), whether new or renovated.
With this product, we recommend the use of hinges with a minimum thickness of 5 mm, in steel or stainless steel.
For more details, please consult the installation manual.
Specifications to be respected:
- Leaf width: min 30 cm / max 80 cm
- Max leaf surface: 1.6 m²
- Max leaf weight: 50 kg
- Min distance from hinge axis to shutter edge: 30 mm
- Min hinge thickness (steel or stainless steel): 5 mm
Description:
- Discreet: a totally invisible motorised hinge system.
- Secure: obstacle detection according to NF 26-341 standard.
- Ease of use: control the opening of all or part of your shutters.
- New or renovation: adapts to all types of hinged shutters including linked leaves with our multi-leaf compass.
- Product designed and manufactured in our workshops in France, individually tested and guaranteed for 2 years.

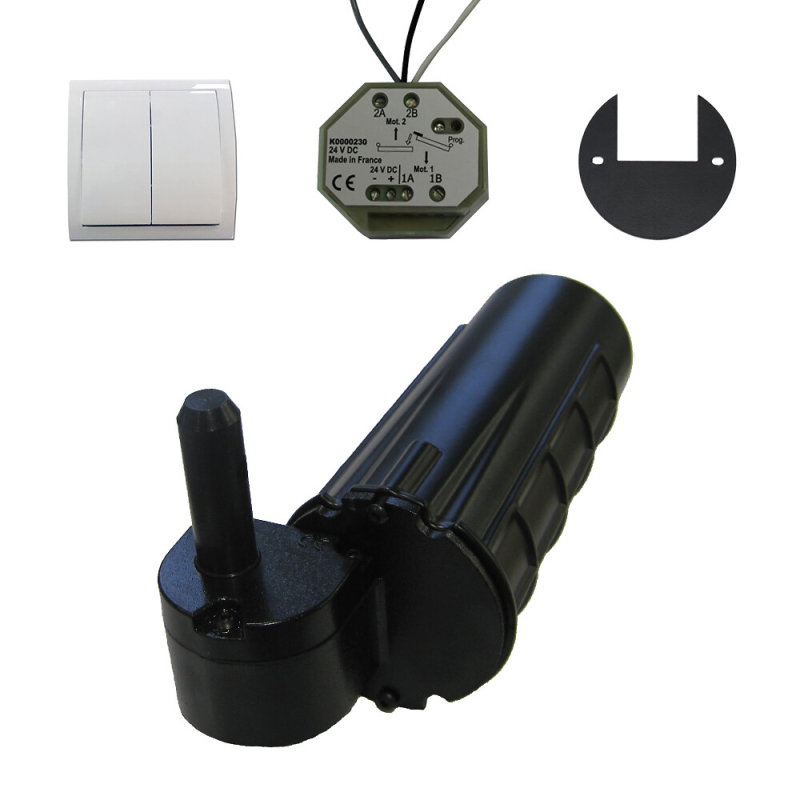

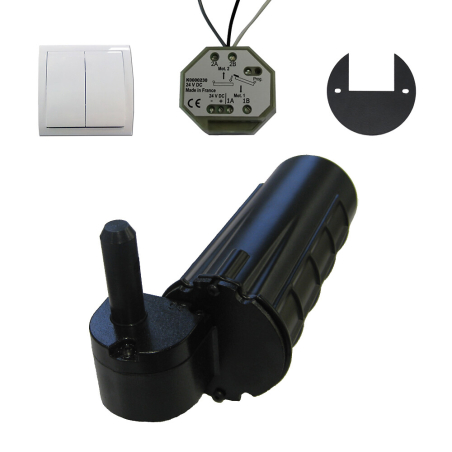

Kit contents:
- 1 motor (right viewed from outside)
- 1 control box
- 1 switch
- 1 set of screws (screws, seal...)
Other colours available as an option: please contact us by email.
Options:
SU9300: stainless steel compass for linked leaves
SU9301: chemical sealing kit for 1 motor
SU9304: drilling template for hinge Ø 14 to 18
SU9315: wired switch
Switching or recessed power supply
Electromagnetic or electromechanical lock
All spare parts for SLID'UP URANUS
Recessed motorisation for right single-leaf URANUS shutter - hinge Ø 14.
Motorise your hinged shutters discreetly, preserving the character of your façade, thanks to the innovative motorised hinge system recessed directly into the wall.
The URANUS motorisations adapt to all types of hinged shutters (wood, PVC, aluminium...), whether new or renovated.
With this product, we recommend the use of hinges with a minimum thickness of 5 mm, in steel or stainless steel.
For more details, please consult the installation manual.
Specifications to be respected:
- Leaf width: min 30 cm / max 80 cm
- Max leaf surface: 1.6 m²
- Max leaf weight: 50 kg
- Min distance from hinge axis to shutter edge: 30 mm
- Min hinge thickness (steel or stainless steel): 5 mm
Description:
- Discreet: a totally invisible motorised hinge system.
- Secure: obstacle detection according to NF 26-341 standard.
- Ease of use: control the opening of all or part of your shutters.
- New or renovation: adapts to all types of hinged shutters including linked leaves with our multi-leaf compass.
- Product designed and manufactured in our workshops in France, individually tested and guaranteed for 2 years.
Kit contents:
- 1 motor (right viewed from outside)
- 1 control box
- 1 switch
- 1 set of screws (screws, seal...)
Other colours available as an option: please contact us by email.
Options:
SU9300: stainless steel compass for linked leaves
SU9301: chemical sealing kit for 1 motor
SU9304: drilling template for hinge Ø 14 to 18
SU9315: wired switch
Switching or recessed power supply
Electromagnetic or electromechanical lock
All spare parts for SLID'UP URANUS
Technical documentation
Installation instructions
Video presentation
Made for you
From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.
Brand
Data Sheet
| Use / Application | Swinging shutter |
|---|---|
| B2C warranty | 2 years |
| Activity | Doors |
| Closing time | 18 s |
| Colour | Black |
| Control type | Wired |
| For shutter or leaf | 1 right |
| Hinge diameter | 14 mm |
| Limit switch type | Dynamic (stop on obstable) |
| Maximum power | 100 W |
| Max leaf surface | 1.6 m² |
| Min. distance hinge axis / leaf edge | 30 mm |
| Motor position | On the right |
| Motor torque | 25 Nm |
| Motor type | Motoréducteur à courant continu |
| Motor voltage | 24 V CC |
| Mounting type | Built-in motorized hinge |
| Number of leaves | 1 right |
| Number of motors | 1 |
| Number of motors / leaf | 1 |
| Opening time | 18 s |
| Operating temperature | -20°C to 60°C |
| Made in | France |
| Product family | Motorization kit |
| Protection class | IPX4 |
| Range | SLID'UP URANO |
| Rotation speed | 1.9 rpm |
| Supply voltage | 230 V CA |
| Use | Exterior |
| Brand | SLID'UP by Mantion |
Guaranteed quality
SLID'UP by Mantion guarantees all its sliding systems for 5 years and its motors for 2 years.
Fast delivery
Delivery of in-stock products is guaranteed within 3 to 5 days to your home. Shipping is carried out from our company located in France.
Secure payment
Online payment for your orders is fully secured by credit card, 4x installment with no fees, PayPal, check, or bank transfer.
25 Spare parts and accessories
customer reviews
FAQ
Yes, whether your SLID'UP by Mantion motorized shutters are swinging, sliding, or rolling, it is entirely possible to interrupt their opening or closing at any time to position them as you prefer. To do this, simply press the switch or the remote ...
Lire la réponse détailléeTo control SLID’UP by Mantion shutter motors from your smartphone, you will need a compatible home automation hub. Only wired motors can be connected to a home automation system. For more information, contact our technical support team, who can ...
Lire la réponse détailléeAll installation guides and user manuals for SLID’UP products can be downloaded in PDF format from our online store. To do this, go to the page of the product you are looking for and click on the PDF icon of the corresponding document. ...
Lire la réponse détailléeIn the event of a power outage, swinging shutters equipped with SLID'UP URANUS, SLID'UP WINEO, or SLID'UP BRA-VO motorisations can be operated by removing the safety pin (also called a sleeve) with a hex key. The pin is located between the shaft ...
Lire la réponse détailléeNo need to worry, if you need to change the batteries in your remote control or wireless switch, the programming of your SLID'UP by Mantion shutter motorisations is fully retained. There is no need to reprogram your SLID'UP by Mantion motorisatio ...
Lire la réponse détailléeSee more questions
