Wired motorisation for left single-leaf shutter SLID'UP URANUS - hinge Ø 12 mm
Reference : W0002040
- Invisible motorisation Ø 12 mm for hinged shutter
- Wired control with switch
- For 1 left leaf (viewed from outside)
- Maximum leaf weight: 50 kg
- Made in France
- Warranty: 2 years
- Quantity: 1
In stock
Delivery in 3 to 5 days
€369.87
Tax included
€240.42
Tax included
Ou 3x 80.14 € sans frais
Description
Warning: Shutter not included in the kit, nor the 24V power supply, nor the resin kit.
Built-in motorisation for left single-leaf shutter URANUS wired - hinge Ø 12.
Motorise your swing shutters discreetly, preserving the character of your façade, thanks to the innovative motorised hinge system built directly into the wall.
The URANUS motorisations adapt to all types of swing shutters (wood, PVC, aluminium...), whether new or renovated.
We recommend using hinges with a minimum thickness of 5 mm, made of steel or stainless steel, with this product.
For more details, please consult the installation manual.
Specifications to be respected :
- Leaf width: min 30 cm / max 80 cm
- Maximum leaf surface: 1.6 m²
- Maximum leaf weight: 50 kg
- Minimum distance from hinge axis to shutter edge: 30 mm
- Minimum hinge thickness (steel or stainless steel): 5 mm
Description :
- Discreet: a completely invisible motorised hinge system.
- Safe: obstacle detection according to NF 26-341 standard.
- Ease of use: control the opening of all or part of your shutters.
- New or renovation: adapts to all types of swing shutters including linked leaves with our multi-leaf stay.
- Product designed and manufactured in our workshops in France, individually tested and guaranteed for 2 years.

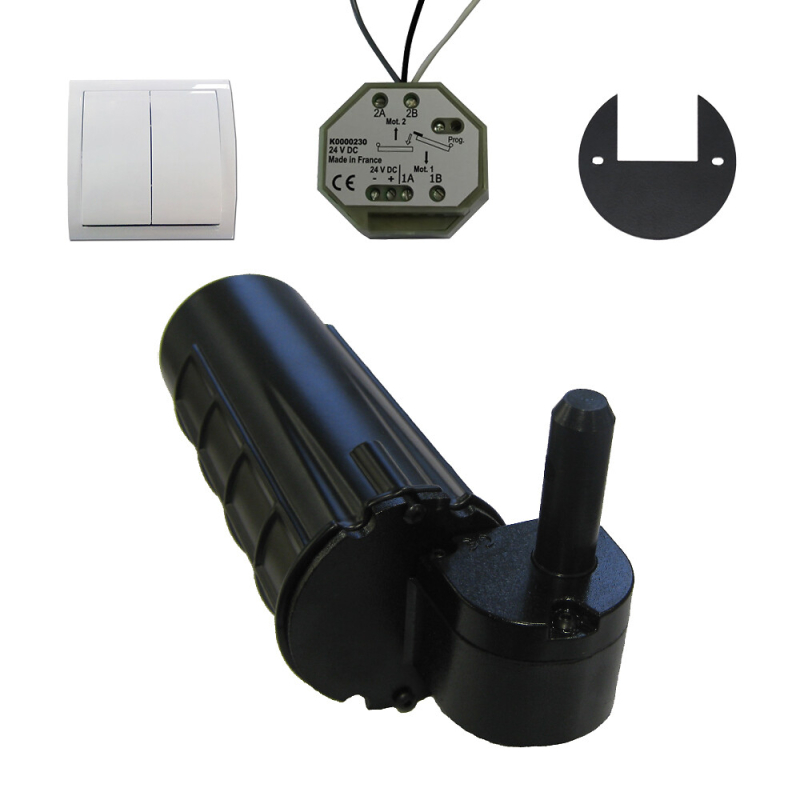

Kit contents :
- 1 motor (left viewed from outside)
- 1 control box
- 1 switch
- 1 set of screws (screws, gasket...)
Other colours available as options: contact us by email.
Options :
SU9300: stainless steel stay for linked leaves
SU9301: chemical sealing kit for 1 motor
SU9305: drilling template for hinge Ø 12
SU9315: wired switch
Switching or built-in power supply
Electromagnetic or electromechanical locking
All spare parts for SLID'UP URANUS
Built-in motorisation for left single-leaf shutter URANUS wired - hinge Ø 12.
Motorise your swing shutters discreetly, preserving the character of your façade, thanks to the innovative motorised hinge system built directly into the wall.
The URANUS motorisations adapt to all types of swing shutters (wood, PVC, aluminium...), whether new or renovated.
We recommend using hinges with a minimum thickness of 5 mm, made of steel or stainless steel, with this product.
For more details, please consult the installation manual.
Specifications to be respected :
- Leaf width: min 30 cm / max 80 cm
- Maximum leaf surface: 1.6 m²
- Maximum leaf weight: 50 kg
- Minimum distance from hinge axis to shutter edge: 30 mm
- Minimum hinge thickness (steel or stainless steel): 5 mm
Description :
- Discreet: a completely invisible motorised hinge system.
- Safe: obstacle detection according to NF 26-341 standard.
- Ease of use: control the opening of all or part of your shutters.
- New or renovation: adapts to all types of swing shutters including linked leaves with our multi-leaf stay.
- Product designed and manufactured in our workshops in France, individually tested and guaranteed for 2 years.
Kit contents :
- 1 motor (left viewed from outside)
- 1 control box
- 1 switch
- 1 set of screws (screws, gasket...)
Other colours available as options: contact us by email.
Options :
SU9300: stainless steel stay for linked leaves
SU9301: chemical sealing kit for 1 motor
SU9305: drilling template for hinge Ø 12
SU9315: wired switch
Switching or built-in power supply
Electromagnetic or electromechanical locking
All spare parts for SLID'UP URANUS
Technical documentation
Installation instructions
Video presentation
Made for you
From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.
Brand
Data Sheet
| Use / Application | Swinging shutter |
|---|---|
| B2C warranty | 2 years |
| Activity | Doors |
| Closing time | 18 s |
| Colour | Black |
| Control type | Wired |
| For shutter or leaf | 1 left |
| Hinge diameter | 12 mm |
| Limit switch type | Dynamic (stop on obstable) |
| Maximum power | 100 W |
| Max leaf surface | 1.6 m² |
| Min. distance hinge axis / leaf edge | 30 mm |
| Motor position | On the left |
| Motor torque | 25 Nm |
| Motor type | Motoréducteur à courant continu |
| Motor voltage | 24 V CC |
| Mounting type | Built-in motorized hinge |
| Number of leaves | 1 left |
| Number of motors | 1 |
| Number of motors / leaf | 1 |
| Opening time | 18 s |
| Operating temperature | -20°C to 60°C |
| Made in | France |
| Product family | Motorization kit |
| Protection class | IPX4 |
| Range | SLID'UP URANO |
| Rotation speed | 1.9 rpm |
| Supply voltage | 230 V CA |
| Use | Exterior |
| Brand | SLID'UP by Mantion |
