SLID'UP 160 sliding system for 2 doors - 2 rails 1.5 m - 60 kg

SLID'UP 160 sliding system for 2 partition doors - ceiling-mounted, surface-mounted or pocket door - 2 rails of 1.5 m - suspended sliding.

Maximum door weight: 60 kg each
Door thickness: 16 to 45 mm
Maximum door width: 750 mm each

Warning: Door not included in the kit.

Robust and reliable, the SLID'UP 160 sliding system for interior doors ensures smooth and silent movement of your doors thanks to the needle bearing mounts.

The aluminium rails and finishing strips can be cut to the desired length to perfectly fit the dimensions of your doors.

Simple and quick installation for two custom interior sliding doors with finishing strip and optional door closer damper.

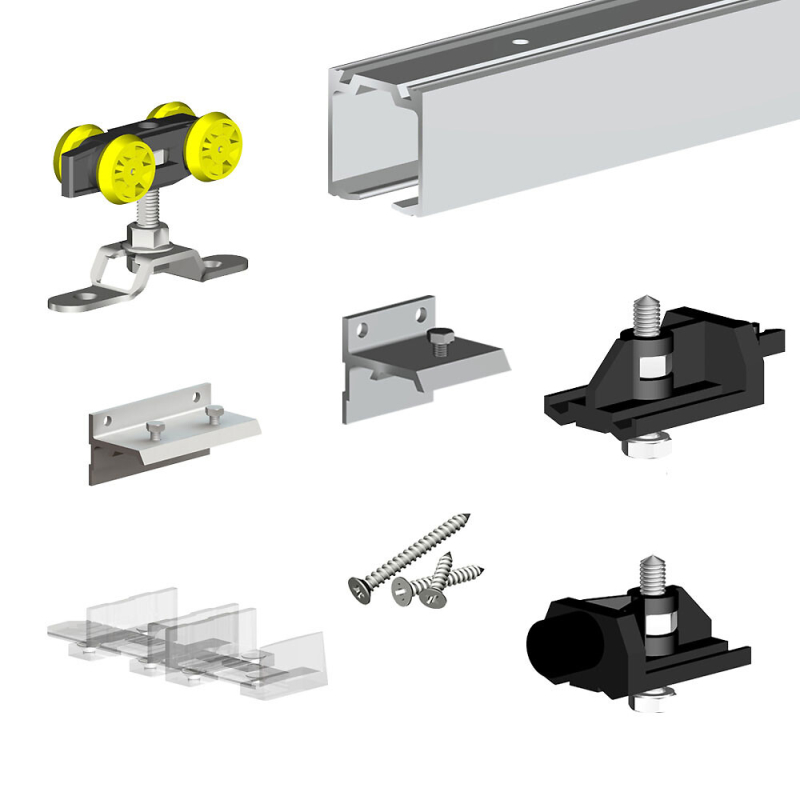

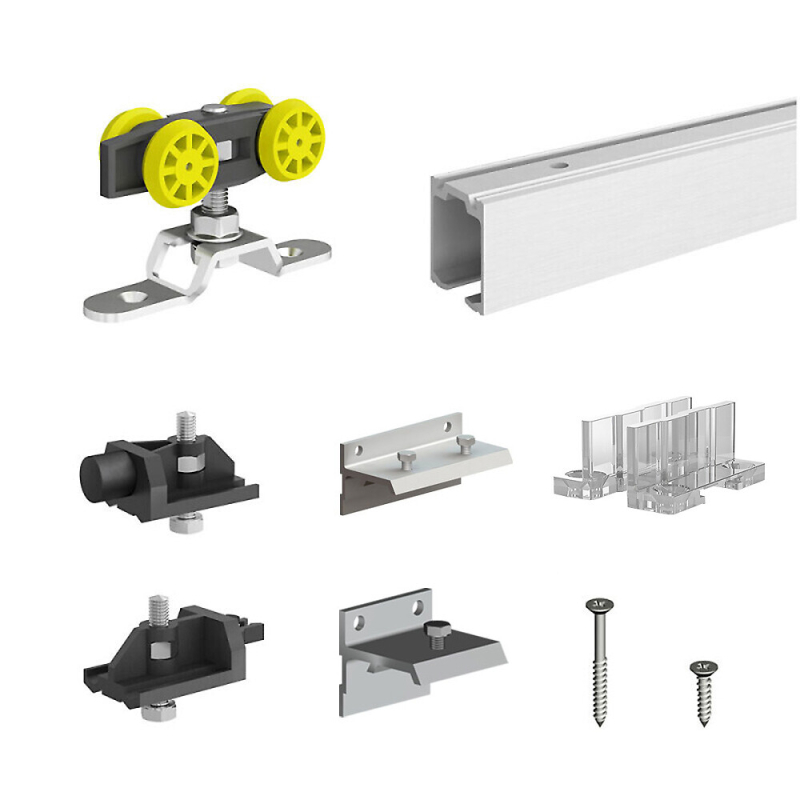

Kit contents:
- 2 cuttable rails of 1500 mm
- 1 rail joining bracket
- 6 wall mounting brackets
- 4 mounts
- 2 stop buffers
- 2 holding buffers
- 2 guides
- 2 sets of screws

Mounting options:



Mounting A:
Ceiling mounting without finishing strip.
This kit contains all elements required for this type of mounting.

Mounting B:
Surface mounting with aluminium finishing strip.
This kit contains all elements required for this type of mounting.

Mounting C:
Surface mounting with wooden finishing strip.
Add 3 wall mounting brackets for doors with thickness from 25 to 45 mm max (reference SU5243).

Mounting D:
Ceiling mounting with aluminium finishing strip.
Add 12 ceiling mounting spacers (reference SU5212).

Options:
SU5208: kit for one additional door
SU5478: door closer damper
SU5229: natural anodised aluminium finishing strip - L = 3 m
SU5230: gold anodised aluminium finishing strip - L = 3 m
SU5231: bronze anodised aluminium finishing strip - L = 3 m
SU5232: synchronisation kit for two doors
All spare parts for SLID'UP 160
