SLID'UP 160 sliding system for 1 door up to 1000 mm - 1.94 m rail - 60 kg

SLID'UP 160 sliding system for 1 partition door - ceiling or pocket door mounting - 1.94 m rail - suspended sliding.

For surface mounting, use the wall brackets available as an option.

Maximum door weight: 60 kg
Door thickness: 16 to 45 mm
Maximum door width: 1000 mm

Warning: Door not included in the kit.

Robust and reliable, the SLID'UP 160 interior door sliding system ensures a smooth and silent movement of your door thanks to the needle bearing mounts.

The aluminium rails and finishing trims can be cut to the desired length to perfectly fit your door dimensions.

Simple and quick installation for a custom interior sliding door with finishing trim and optional door closer damper.

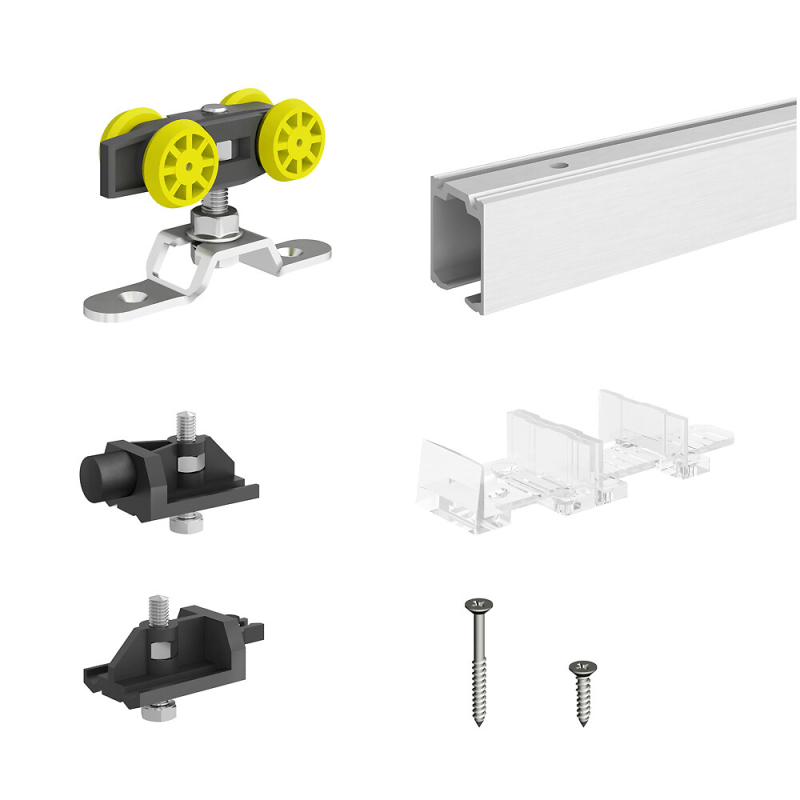

Kit contents:
- 1 cuttable 1940 mm rail
- 2 mounts
- 1 stop block
- 1 holding stop
- 1 guide
- 1 set of screws

Mounting options:



Mounting A:
Ceiling mounting without trim.
This kit contains all the elements for this type of mounting.

Mounting B:

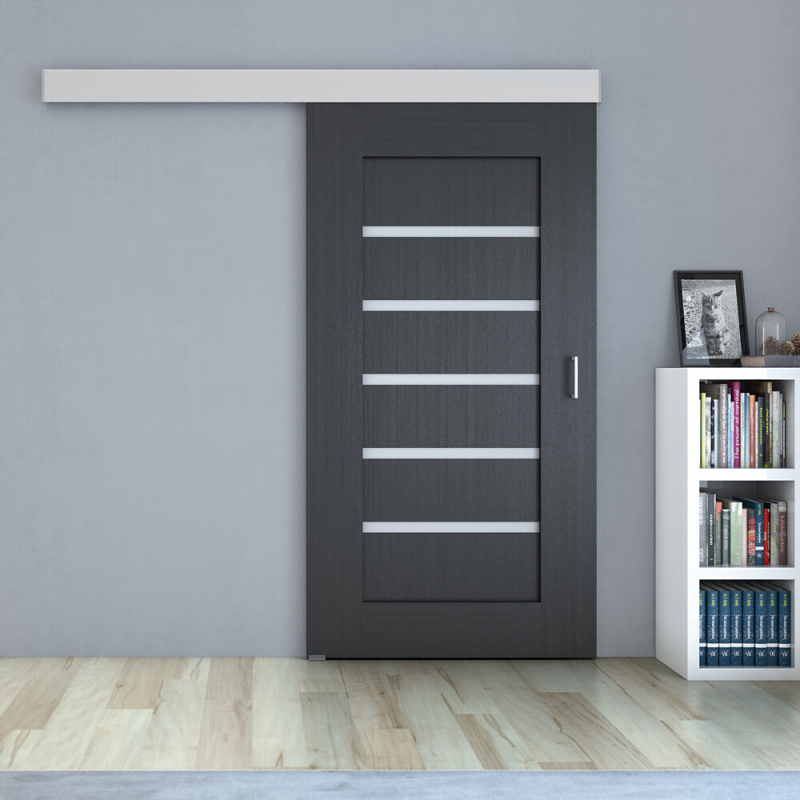

Surface mounting with aluminium trim.
Add 5 wall mounting brackets for doors up to 45 mm thick (reference SU5233).

Mounting C:
Surface mounting with wooden trim.
Add 5 wall mounting brackets for doors up to 45 mm thick (reference SU5233).
Add 3 wall mounting brackets for doors 25 to 45 mm thick (reference SU5243).

Mounting D:
Ceiling mounting with aluminium trim.
Add 7 ceiling mounting spacers (reference SU5212).

Options:
SU5208: kit for an additional door
SU5478: door closer damper
SU5223: natural anodised aluminium trim - L = 2 m
SU5224: gold anodised aluminium trim - L = 2 m
SU5225: bronze anodised aluminium trim - L = 2 m
SU5232: synchronisation kit for two doors
All spare parts for SLID'UP 160
