SLID'UP 160 sliding system for 1 door up to 750 mm - 1.5 m rail - 60 kg

SLID'UP 160 sliding system for 1 partition door - ceiling or pocket door mounting - 1.5 m rail - suspended sliding.

For surface mounting, use the optional wall brackets available.

Maximum door weight: 60 kg
Door thickness: 16 to 45 mm
Maximum door width: 750 mm

Note: Door not included in the kit.

Robust and reliable, the SLID'UP 160 interior door sliding system ensures your door moves smoothly and quietly thanks to the needle bearing hangers.

The aluminium rails and finishing strips can be cut to the desired length to perfectly fit your door dimensions.

Simple and quick installation for a custom interior sliding door with finishing strip and optional door closer damper.

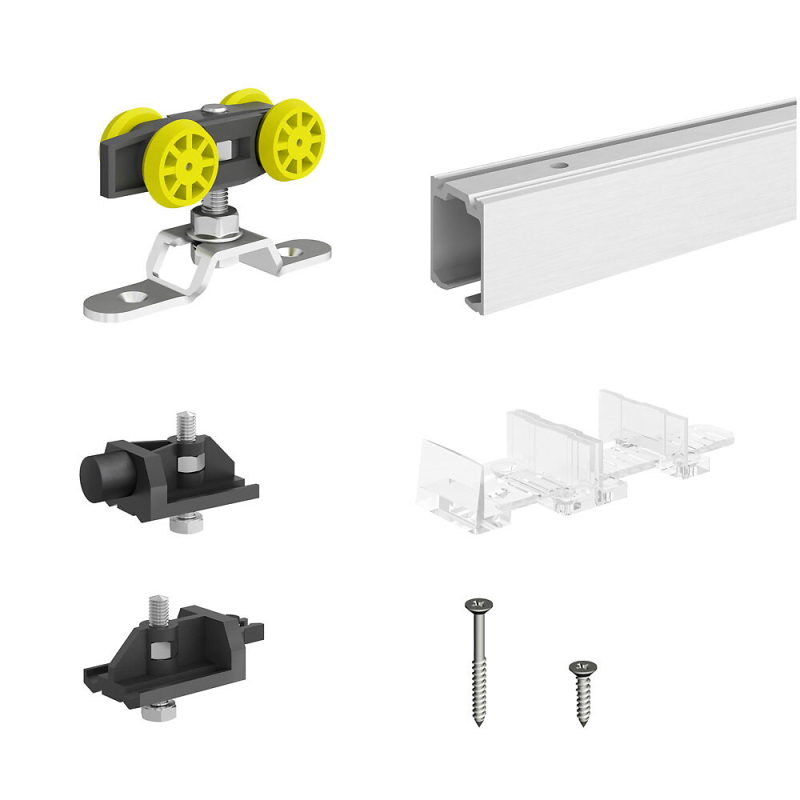

Kit contents:
- 1 cuttable 1500 mm rail
- 2 hangers
- 1 stop buffer
- 1 holding buffer
- 1 guide
- 1 set of screws

Mounting options:



Mounting A:
Ceiling mounting without finishing strip.
This kit contains all the elements for this type of installation.

Mounting B:
Surface mounting with aluminium finishing strip.
Add 4 wall mounting brackets for doors up to 45 mm thick (reference SU5233).

Mounting C:
Surface mounting with wooden finishing strip.
Add 4 wall mounting brackets for doors up to 45 mm thick (reference SU5233).
Add 3 wall mounting brackets for doors 25 to 45 mm thick (reference SU5243).

Mounting D:
Ceiling mounting with aluminium finishing strip.
Add 6 ceiling mounting spacers (reference SU5212).

Options:
SU5208: kit for an additional door
SU5478: door closer damper
SU5217: natural anodised aluminium finishing strip - L = 1.5 m
SU5218: gold anodised aluminium finishing strip - L = 1.5 m
SU5219: bronze anodised aluminium finishing strip - L = 1.5 m
SU5232: synchronisation kit for two doors
All spare parts for SLID'UP 160
