SLID'UP 160 sliding system for 2 doors - 2 rails 1.94 m - 60 kg
Reference : SU9004
- Sliding system for two interior doors
- Complete kit for ceiling or surface mounting
- For 2 doors up to 60 kg
- For 2 doors up to 1000 mm
- Rail: 2 x 1.94 m
- Warranty: 5 years
In stock
Delivery in 3 to 5 days
€139.13
Tax included
€111.30
Tax included
Description
SLID'UP 160 sliding system for 2 partition doors - ceiling-mounted, surface-mounted or pocket door installation - 2 rails of 1.94 m - suspended sliding.
Maximum door weight: 60 kg each
Door thickness: 16 to 45 mm
Maximum door width: 1000 mm each
Attention: Door not included in the kit.
Robust and reliable, the SLID'UP 160 sliding system for interior doors ensures smooth and silent door movement thanks to needle bearing hangers.
The aluminium rails and finishing strips can be cut to the desired length to perfectly fit your door dimensions.
Simple and quick installation for two custom interior sliding doors with finishing strip and optional door closer damper.

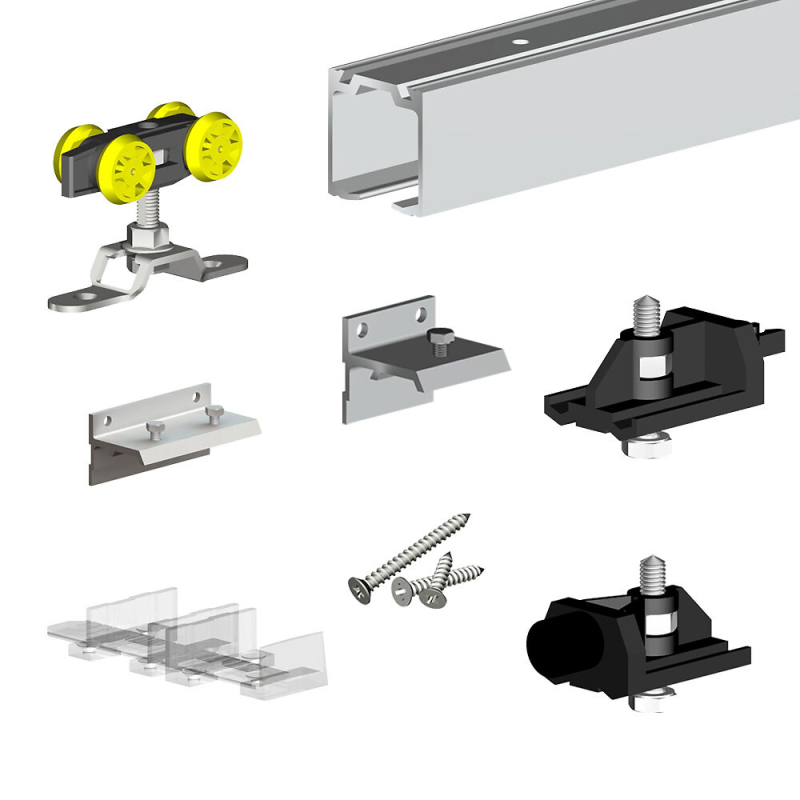

Kit contents:
- 2 cuttable rails of 1940 mm
- 1 rail joining bracket
- 8 wall mounting brackets
- 4 hangers
- 2 stop buffers
- 2 holding stops
- 2 guides
- 2 sets of screws
Installation options:
Installation A:
Ceiling-mounted without finishing strip.
This kit contains all the elements to carry out this type of installation.
Installation B:
Surface-mounted with aluminium finishing strip.
This kit contains all the elements to carry out this type of installation.
Installation C:
Surface-mounted with wooden finishing strip.
Add 3 wall mounting brackets for doors with thickness 25 to 45 mm max (reference SU5243).
Installation D:
Ceiling-mounted with aluminium finishing strip.
Add 14 ceiling mounting spacers (reference SU5212).
Options:
SU5208: kit for an additional door
SU5478: door closer damper
SU5223: natural anodised aluminium finishing strip - L = 2 m
SU5224: gold anodised aluminium finishing strip - L = 2 m
SU5225: bronze anodised aluminium finishing strip - L = 2 m
SU5232: synchronisation kit for two doors
All spare parts for SLID'UP 160
Maximum door weight: 60 kg each
Door thickness: 16 to 45 mm
Maximum door width: 1000 mm each
Attention: Door not included in the kit.
Robust and reliable, the SLID'UP 160 sliding system for interior doors ensures smooth and silent door movement thanks to needle bearing hangers.
The aluminium rails and finishing strips can be cut to the desired length to perfectly fit your door dimensions.
Simple and quick installation for two custom interior sliding doors with finishing strip and optional door closer damper.
Kit contents:
- 2 cuttable rails of 1940 mm
- 1 rail joining bracket
- 8 wall mounting brackets
- 4 hangers
- 2 stop buffers
- 2 holding stops
- 2 guides
- 2 sets of screws
Installation options:
Installation A:
Ceiling-mounted without finishing strip.
This kit contains all the elements to carry out this type of installation.
Installation B:
Surface-mounted with aluminium finishing strip.
This kit contains all the elements to carry out this type of installation.
Installation C:
Surface-mounted with wooden finishing strip.
Add 3 wall mounting brackets for doors with thickness 25 to 45 mm max (reference SU5243).
Installation D:
Ceiling-mounted with aluminium finishing strip.
Add 14 ceiling mounting spacers (reference SU5212).
Options:
SU5208: kit for an additional door
SU5478: door closer damper
SU5223: natural anodised aluminium finishing strip - L = 2 m
SU5224: gold anodised aluminium finishing strip - L = 2 m
SU5225: bronze anodised aluminium finishing strip - L = 2 m
SU5232: synchronisation kit for two doors
All spare parts for SLID'UP 160
Technical documentation
Installation instructions
Video presentation
Made for you
From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.
Brand
Data Sheet
| Use / Application |
Interior door Partition door |
|---|---|
| B2C warranty | 5 years |
| Activity | Doors |
| Door frame material | Wood |
| Door thickness | 16 to 45 mm |
| Installation type |
Ceiling mounting In between walls |
| Maximum door weight | 60 kg |
| Number of doors - Track length (m) | 2 - 2 x 1,94 m |
| Number of doors | 2 |
| Number of track | 2 tracks |
| Made in | Europe |
| Product family | Sliding kit |
| Range | SLID'UP 160 |
| Track length (m) | 2 m |
| Track material | Aluminum |
| Type of system | Suspended sliding |
| Brand | SLID'UP by Mantion |
