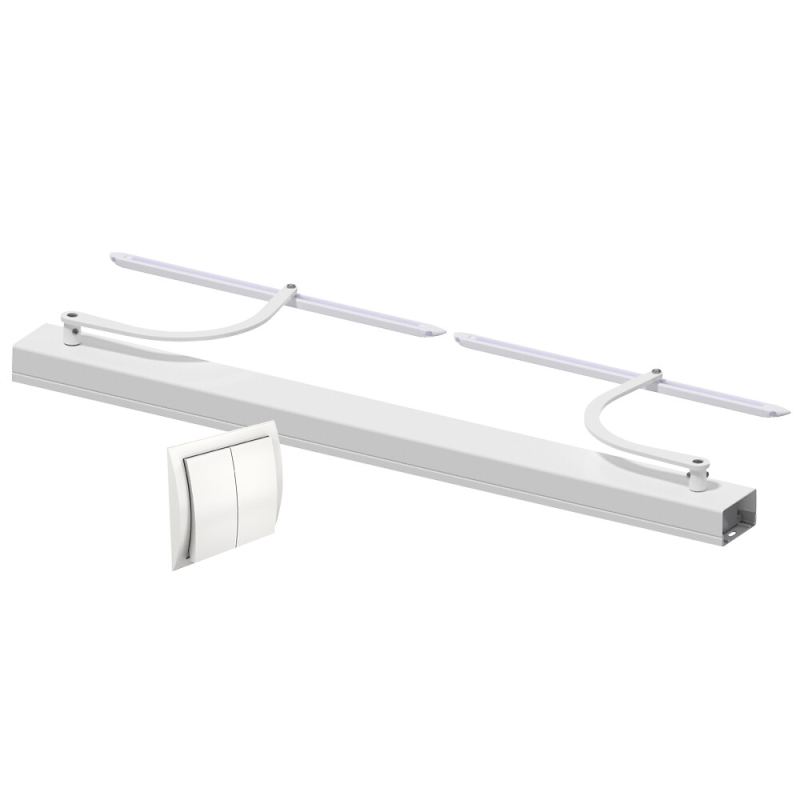

Motorisation SLID'UP WINEO filaire pour volet 2 battants - baie 1,5 à 2,5 m - blanc
Reference : W0001480
- Lintel motorisation for hinged shutter
- Wired control with switch
- Bay from 1.5 to 2.5 m (2 leaves)
- White casing and white arm
- Made in France
- Warranty: 2 years
In stock
Delivery in 3 to 5 days
€523.93
Tax included
Ou 3x 174.64 € sans frais
Description
Warning: Shutter not included in the kit.
WINEO wired motorisation for 2-leaf shutters - bay 1500-2500 mm - white casing - white arm.
For new builds or renovations, WINEO allows you to keep your existing shutters and fits all types of single or double-leaf shutters.
For more details, please refer to the installation manual.
Specifications to be respected:
- Leaf width: 40 cm min / 80 cm max
- Max leaf surface: 1.6 m²
- Max leaf weight: 50 kg
- Reveal width: 15 cm
- Max distance hinge axis / bay edge: dimension A (see arm chart)
- Max distance wall / outer shutter: dimension B (see arm chart)
- Min distance shutter top / top of strap: 90 mm
- For C ≥ 150 mm: use W1 arms (supplied in the kit)
- For C ≥ 100 mm: use W2 or W3 arms (available in spare parts)
Description:
- Complete kit, ready to install.
- Cuttable: quick and easy installation.
- Discreet: extra-flat aluminium casing 50 mm high.
- Efficient: 1 motor block per leaf.
- Durable: arms and output pinion made of high-strength steel.
- Safety: obstacle detection.
- Can be controlled by home automation (please contact us).
- Maintenance-free product.
- Plug and Play installation (learning programme).
- Complies with NF P26-341 standard.
- Product designed and manufactured in our workshops in France, individually tested and guaranteed for 2 years.
Kit contents:
- 2 motor blocks: arm and white rail (RAL 9010).
- 1 set of white cladding casing (RAL 9010).
- 1 wired switch with 2 push buttons.
- 1 installation template + fixing screws.
Other colours optional: contact us by email.
Options:
Stainless steel compasses for linked leaves
Wired switch
Guiding rail 1.2 m long (ideal for louvered shutters)
Other W1, W2 or W3 arms (see charts)
Electromagnetic or electromechanical locking
All spare parts for SLID'UP WINEO
WINEO wired motorisation for 2-leaf shutters - bay 1500-2500 mm - white casing - white arm.
For new builds or renovations, WINEO allows you to keep your existing shutters and fits all types of single or double-leaf shutters.
For more details, please refer to the installation manual.
Specifications to be respected:
- Leaf width: 40 cm min / 80 cm max
- Max leaf surface: 1.6 m²
- Max leaf weight: 50 kg
- Reveal width: 15 cm
- Max distance hinge axis / bay edge: dimension A (see arm chart)
- Max distance wall / outer shutter: dimension B (see arm chart)
- Min distance shutter top / top of strap: 90 mm
- For C ≥ 150 mm: use W1 arms (supplied in the kit)
- For C ≥ 100 mm: use W2 or W3 arms (available in spare parts)
Description:
- Complete kit, ready to install.
- Cuttable: quick and easy installation.
- Discreet: extra-flat aluminium casing 50 mm high.
- Efficient: 1 motor block per leaf.
- Durable: arms and output pinion made of high-strength steel.
- Safety: obstacle detection.
- Can be controlled by home automation (please contact us).
- Maintenance-free product.
- Plug and Play installation (learning programme).
- Complies with NF P26-341 standard.
- Product designed and manufactured in our workshops in France, individually tested and guaranteed for 2 years.
Kit contents:
- 2 motor blocks: arm and white rail (RAL 9010).
- 1 set of white cladding casing (RAL 9010).
- 1 wired switch with 2 push buttons.
- 1 installation template + fixing screws.
Other colours optional: contact us by email.
Options:
Stainless steel compasses for linked leaves
Wired switch
Guiding rail 1.2 m long (ideal for louvered shutters)
Other W1, W2 or W3 arms (see charts)
Electromagnetic or electromechanical locking
All spare parts for SLID'UP WINEO
Technical documentation
Diagnosis
Video presentation
Made for you
From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.
Brand
Data Sheet
| Use / Application | Swinging shutter |
|---|---|
| Arm and track colour | White |
| B2C warranty | 2 years |
| Activity | Doors |
| Can be recut | Oui |
| Closing time | 16 s |
| Color housing arm | White |
| Colour | White |
| Control type | Wired |
| Housing color | White |
| Limit switch type | Dynamic (stop on obstable) |
| Maximum bay width | 2500 mm |
| Maximum power | 100 W |
| Max leaf surface | 1.6 m² |
| Maximum weight / leaf | 50 kg |
| Maximum width / leaf | 80 cm |
| Minimum bay width | 1500 mm |
| Motor torque | 25 Nm |
| Motor type | Right gear train and high strenght steel |
| Motor voltage | 24 V CC |
| Mounting type | Lintel mounting |
| Number of leaves - Bay width (m) | 2 - 1,5 to 2,5 m |
| Number of leaves | 2 leaves |
| Number of motors | 2 |
| Opening time | 16 s |
| Operating temperature | -20°C to 60°C |
| Made in | France |
| Panel depth | 150 mm min |
| Product family | Motorization kit |
| Protection class | IP24 |
| Range | SLID'UP WINEO |
| Rotation speed | 2 rpm |
| Supply voltage | 230 V CA |
| Use | Exterior |
| Brand | SLID'UP by Mantion |
