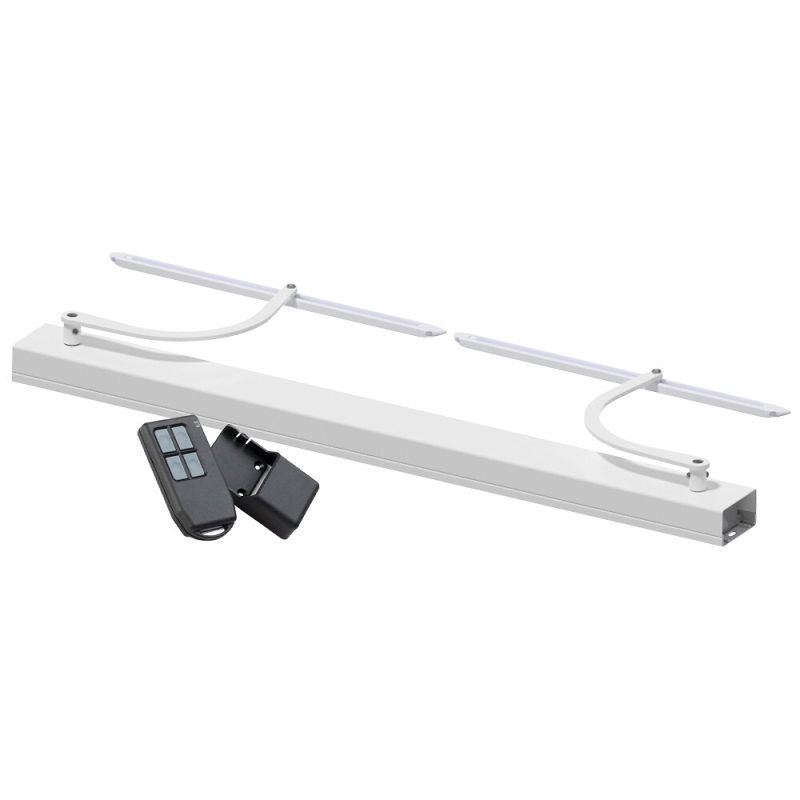

Motorisation for 2-leaf SLID'UP WINEO radio shutter - bay 1500 to 2500 mm - white
Reference : W0001430
- Lintel motorisation for hinged shutters
- Radio control with remote control
- Bay from 1500 to 2500 mm (2 leaves)
- White casing and white arm
- Made in France
- Warranty: 2 years
- Quantity: 1
In stock
Delivery in 3 to 5 days
€698.17
Tax included
€523.63
Tax included
Ou 3x 174.54 € sans frais
Description
Attention: Shutter not included in the kit.
WINEO radio motorisation for 2-leaf shutters - bay 1500-2500 mm - white casing - white arm.
For new installations or renovations, WINEO allows you to keep your existing shutters and fits all types of single or double-leaf shutters.
For more details, please consult the installation manual.
Specifications to be respected:
- Leaf width: 40 cm min / 80 cm max
- Max leaf surface area: 1.6 m²
- Max leaf weight: 50 kg
- Reveal width: 15 cm
- Max distance from hinge axis to bay edge: dimension A (see arm chart)
- Max distance from wall to outer shutter: dimension B (see arm chart)
- Min distance from top of shutter to top of strap: 90 mm
- For C ≥ 150 mm: use W1 arms (supplied in the kit)
- For C ≥ 100 mm: use W2 or W3 arms (available as spare parts)
Description:
- Complete kit, ready to install.
- Cuttable: quick and easy installation.
- Discreet: extra-flat 50 mm high aluminium casing.
- Efficient: one motor block per leaf.
- Durable: arms and output gear made of high-strength steel.
- Safety: obstacle detection.
- Maintenance-free product.
- Plug and Play installation (learning programme).
- Compliant with NF P26-341 standard.
- Product designed and manufactured in our workshops in France, individually tested and guaranteed for 2 years.
Kit contents:
- 2 motor blocks: white arm and rail (RAL 9010).
- 1 white cladding casing set (RAL 9010).
- 1 4-button remote control (2 groups).
- 1 installation template + fixing screws.
Other colours available as options: please contact us on 03 80 38 90 60
Options:
C0004750: programmable radio timer
C0004760: programmable radio repeater (to extend range)
C0004770: programmable radio remote control
C0004780: programmable radio switch
C0007105BR: 1.2 m aluminium guide rail (ideal for louvered shutters)
W0000400: stainless steel compass for linked leaves
Other W1, W2 or W3 arms (see charts)
Electromagnetic or electromechanical lock
All spare parts for SLID'UP WINEO
WINEO radio motorisation for 2-leaf shutters - bay 1500-2500 mm - white casing - white arm.
For new installations or renovations, WINEO allows you to keep your existing shutters and fits all types of single or double-leaf shutters.
For more details, please consult the installation manual.
Specifications to be respected:
- Leaf width: 40 cm min / 80 cm max
- Max leaf surface area: 1.6 m²
- Max leaf weight: 50 kg
- Reveal width: 15 cm
- Max distance from hinge axis to bay edge: dimension A (see arm chart)
- Max distance from wall to outer shutter: dimension B (see arm chart)
- Min distance from top of shutter to top of strap: 90 mm
- For C ≥ 150 mm: use W1 arms (supplied in the kit)
- For C ≥ 100 mm: use W2 or W3 arms (available as spare parts)
Description:
- Complete kit, ready to install.
- Cuttable: quick and easy installation.
- Discreet: extra-flat 50 mm high aluminium casing.
- Efficient: one motor block per leaf.
- Durable: arms and output gear made of high-strength steel.
- Safety: obstacle detection.
- Maintenance-free product.
- Plug and Play installation (learning programme).
- Compliant with NF P26-341 standard.
- Product designed and manufactured in our workshops in France, individually tested and guaranteed for 2 years.
Kit contents:
- 2 motor blocks: white arm and rail (RAL 9010).
- 1 white cladding casing set (RAL 9010).
- 1 4-button remote control (2 groups).
- 1 installation template + fixing screws.
Other colours available as options: please contact us on 03 80 38 90 60
Options:
C0004750: programmable radio timer
C0004760: programmable radio repeater (to extend range)
C0004770: programmable radio remote control
C0004780: programmable radio switch
C0007105BR: 1.2 m aluminium guide rail (ideal for louvered shutters)
W0000400: stainless steel compass for linked leaves
Other W1, W2 or W3 arms (see charts)
Electromagnetic or electromechanical lock
All spare parts for SLID'UP WINEO
Technical documentation
Diagnosis
Video presentation
Made for you
From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.
Brand
Data Sheet
| Use / Application | Swinging shutter |
|---|---|
| Arm and track colour | White |
| B2C warranty | 2 years |
| Activity | Doors |
| Can be recut | Oui |
| Closing time | 16 s |
| Color housing arm | White |
| Colour | White |
| Control type | Radio |
| Housing color | White |
| Limit switch type | Dynamic (stop on obstable) |
| Maximum bay width | 2500 mm |
| Maximum power | 100 W |
| Max leaf surface | 1.6 m² |
| Maximum weight / leaf | 50 kg |
| Maximum width / leaf | 80 cm |
| Minimum bay width | 1500 mm |
| Motor torque | 25 Nm |
| Motor type | Right gear train and high strenght steel |
| Motor voltage | 24 V CC |
| Mounting type | Lintel mounting |
| Number of leaves - Bay width (m) | 2 - 1,5 to 2,5 m |
| Number of leaves | 2 leaves |
| Number of motors | 2 |
| Opening time | 16 s |
| Operating temperature | -20°C to 60°C |
| Made in | France |
| Panel depth | 150 mm min |
| Product family | Motorization kit |
| Protection class | IP24 |
| Range | SLID'UP WINEO |
| Rotation speed | 2 rpm |
| Supply voltage | 230 V CA |
| Use | Exterior |
| Brand | SLID'UP by Mantion |
