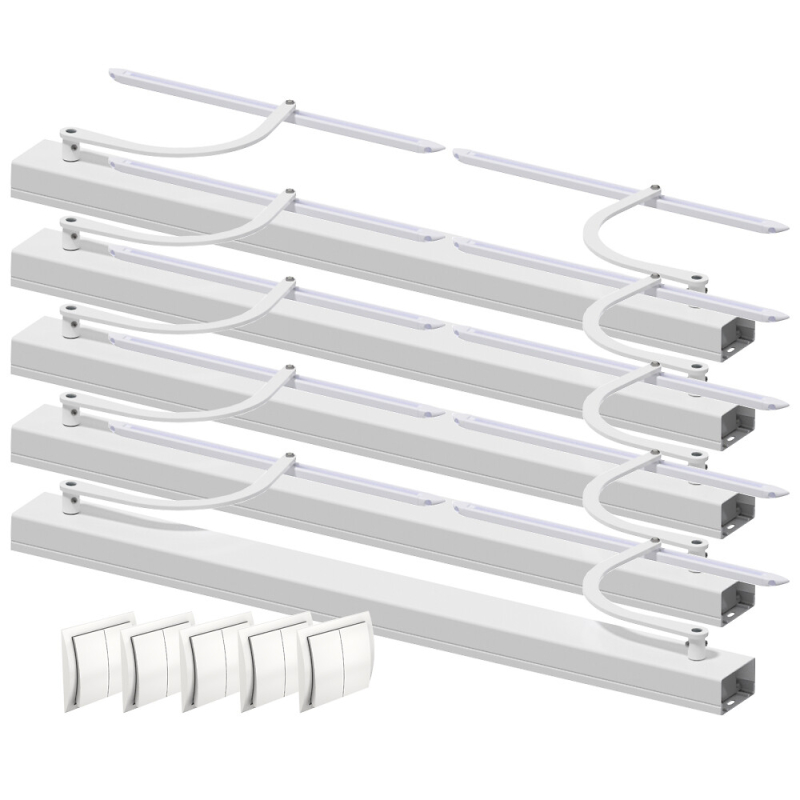

Set of 5 motorisations for 2-leaf SLID'UP WINEO wired shutters - 800 to 1500 mm bay - white
Reference : W0001450_X5_PACK
- Set of 5 lintel motors for hinged shutters
- Wired control with switch
- Bay from 800 to 1500 mm (2 leaves)
- White casing and white arm
- Made in France
- Warranty: 2 years
- Quantity: 5
In stock
Delivery in 3 to 5 days
€2,920.17
Tax included
€1,898.11
Tax included
Ou 3x 632.70 € sans frais
Description
Attention: Shutter not included in the kit.
Set of 5 wired motorisations for WINEO hinged shutters - bay of 800-1500 mm - white casing - white arm for 5 pairs of hinged shutters.
For new builds or renovations, WINEO allows you to keep your existing shutters and adapts to all types of single or double-leaf hinged shutters.
For more details, please refer to the installation manual.
Specifications to be respected:
- Leaf width: 40 cm min / 80 cm max
- Max leaf surface: 1.6 m²
- Max leaf weight: 50 kg
- Reveal width: 15 cm
- Max distance hinge axis / bay edge: dimension A (see arm chart)
- Max distance wall / outer shutter: dimension B (see arm chart)
- Min distance top of shutter / top of the brace: 90 mm
- For C ≥ 150 mm: use W1 arms (included in the kit)
- For C ≥ 100 mm: use W2 or W3 arms (available as spare parts)
Description:
- Complete ready-to-install kit to equip 5 pairs of hinged shutters.
- Cuttable: quick and easy installation.
- Discreet: ultra-flat 50 mm high aluminium casing.
- Efficient: 1 motor block per leaf.
- Durable: arms and output pinion made of high-strength steel.
- Safety: obstacle detection.
- Can be controlled by home automation (please contact us by email).
- Maintenance-free product.
- Plug and Play installation (learning programme).
- Complies with NF P26-341 standard.
- Product designed and manufactured in our workshops in France, individually tested and guaranteed for 2 years.
Kit contents:
- 10 motor blocks: white arm and rail (RAL 9010).
- 5 white cover casing sets (RAL 9010).
- 5 wired 2-button switches.
- 5 installation templates + fixing screws.
Other colours available as options: please contact us by email
Options:
SU9300: stainless steel stay for linked leaves
SU9315: wired switch
C0007105BR: 1.2 m aluminium guide rail (ideal for louvered shutters)
Other W1, W2 or W3 arms (see charts)
Electromagnetic or electromechanical lock
All spare parts for SLID'UP WINEO
Set of 5 wired motorisations for WINEO hinged shutters - bay of 800-1500 mm - white casing - white arm for 5 pairs of hinged shutters.
For new builds or renovations, WINEO allows you to keep your existing shutters and adapts to all types of single or double-leaf hinged shutters.
For more details, please refer to the installation manual.
Specifications to be respected:
- Leaf width: 40 cm min / 80 cm max
- Max leaf surface: 1.6 m²
- Max leaf weight: 50 kg
- Reveal width: 15 cm
- Max distance hinge axis / bay edge: dimension A (see arm chart)
- Max distance wall / outer shutter: dimension B (see arm chart)
- Min distance top of shutter / top of the brace: 90 mm
- For C ≥ 150 mm: use W1 arms (included in the kit)
- For C ≥ 100 mm: use W2 or W3 arms (available as spare parts)
Description:
- Complete ready-to-install kit to equip 5 pairs of hinged shutters.
- Cuttable: quick and easy installation.
- Discreet: ultra-flat 50 mm high aluminium casing.
- Efficient: 1 motor block per leaf.
- Durable: arms and output pinion made of high-strength steel.
- Safety: obstacle detection.
- Can be controlled by home automation (please contact us by email).
- Maintenance-free product.
- Plug and Play installation (learning programme).
- Complies with NF P26-341 standard.
- Product designed and manufactured in our workshops in France, individually tested and guaranteed for 2 years.
Kit contents:
- 10 motor blocks: white arm and rail (RAL 9010).
- 5 white cover casing sets (RAL 9010).
- 5 wired 2-button switches.
- 5 installation templates + fixing screws.
Other colours available as options: please contact us by email
Options:
SU9300: stainless steel stay for linked leaves
SU9315: wired switch
C0007105BR: 1.2 m aluminium guide rail (ideal for louvered shutters)
Other W1, W2 or W3 arms (see charts)
Electromagnetic or electromechanical lock
All spare parts for SLID'UP WINEO
Technical documentation
Diagnosis
Video presentation
Made for you
From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.
Brand
Data Sheet
| Use / Application | Swinging shutter |
|---|---|
| Arm and track colour | White |
| B2C warranty | 2 years |
| Can be recut | Oui |
| Color housing arm | White |
| Colour | White |
| Control type | Wired |
| For shutter or leaf | 2 leaves |
| Housing color | White |
| Limit switch type | Dynamic (stop on obstable) |
| Maximum bay width | 1500 mm |
| Max leaf surface | 1.6 m² |
| Maximum weight / leaf | 50 kg |
| Maximum width / leaf | 80 cm |
| Minimum bay width | 800 mm |
| Motor type | Right gear train |
| Motor voltage | 24 V CC |
| Mounting type | Lintel mounting |
| Number of leaves | 2 leaves |
| Number of motors | 2 |
| Operating temperature | -20°C to 60°C |
| Made in | France |
| Panel depth | 150 mm min |
| Product family | Motorization kit |
| Range | SLID'UP WINEO |
| Supply voltage | 230 V CA |
| Brand | SLID'UP by Mantion |
