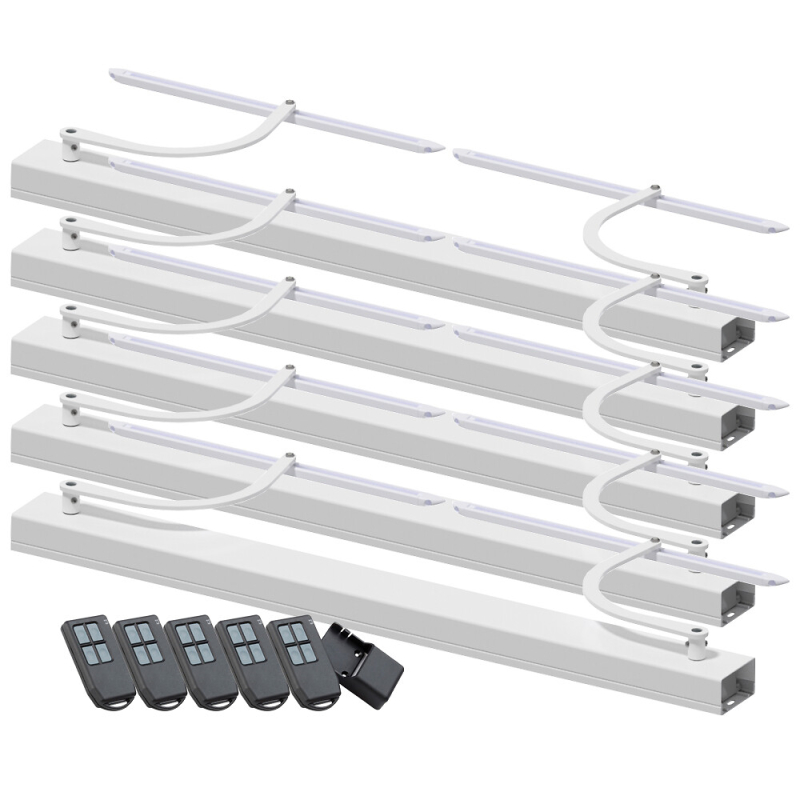

Set of 5 motorisations for 2-leaf SLID'UP WINEO radio shutters - bay 800 to 1500 mm - white
Reference : W0001400_X5_PACK
- Set of 5 lintel motors for hinged shutters
- Radio control with remote control
- Bay from 800 to 1500 mm (2 leaves)
- White casing and white arm
- Made in France
- Warranty: 2 years
- Quantity: 5
In stock
Delivery in 3 to 5 days
€3,026.02
Tax included
€1,966.91
Tax included
Ou 3x 655.64 € sans frais
Description
Attention: Shutter not included in the kit.
Set of WINEO radio motorisations for 5 pairs of hinged shutters - bay 800-1500 mm - white casing - white arm.
For new builds or renovations, WINEO allows you to keep your existing shutters and fits all types of single or double-leaf hinged shutters.
For more details, please consult the installation manual.
Specifications to be respected:
- Leaf width: 40 cm min / 80 cm max
- Max leaf surface: 1.6 m²
- Max leaf weight: 50 kg
- Reveal width: 15 cm
- Max distance hinge axis / bay edge: dimension A (see arm chart)
- Max distance wall / outer shutter: dimension B (see arm chart)
- Min distance top of shutter / top of brace: 90 mm
- For C ≥ 150 mm: use W1 arms (included in the kit)
- For C ≥ 100 mm: use W2 or W3 arms (available as spare parts)
Description:
- Complete kit ready to install for 5 pairs of hinged shutters.
- Cuttable: quick and easy installation.
- Discreet: extra-flat 50 mm high aluminium casing.
- Efficient: 1 motor block per leaf.
- Durable: arms and output pinion made of high-strength steel.
- Safety: obstacle detection.
- Maintenance-free product.
- Plug and Play installation (learning programme).
- Compliant with NF P26-341 standard.
- Product designed and manufactured in our workshops in France, individually tested and guaranteed for 2 years.
Kit contents:
- 10 motor blocks: white arm and rail (RAL 9010).
- 5 white cover casing sets (RAL 9010).
- 5 4-button remote controls (2 groups).
- 5 installation templates + fixing screws.
Other colours available as options: please contact us by email.
Options:
SU9300: stainless steel hinge for linked leaves
SU9309: programmable radio timer
SU9310: programmable radio repeater (to double the range)
SU9311: programmable radio remote control
SU9313: programmable radio switch
C0007105BR: 1.2 m length guide rail (ideal for louvered shutters)
Other W1, W2 or W3 arms (see charts)
Electromagnetic or electromechanical locking
All spare parts for SLID'UP WINEO
Set of WINEO radio motorisations for 5 pairs of hinged shutters - bay 800-1500 mm - white casing - white arm.
For new builds or renovations, WINEO allows you to keep your existing shutters and fits all types of single or double-leaf hinged shutters.
For more details, please consult the installation manual.
Specifications to be respected:
- Leaf width: 40 cm min / 80 cm max
- Max leaf surface: 1.6 m²
- Max leaf weight: 50 kg
- Reveal width: 15 cm
- Max distance hinge axis / bay edge: dimension A (see arm chart)
- Max distance wall / outer shutter: dimension B (see arm chart)
- Min distance top of shutter / top of brace: 90 mm
- For C ≥ 150 mm: use W1 arms (included in the kit)
- For C ≥ 100 mm: use W2 or W3 arms (available as spare parts)
Description:
- Complete kit ready to install for 5 pairs of hinged shutters.
- Cuttable: quick and easy installation.
- Discreet: extra-flat 50 mm high aluminium casing.
- Efficient: 1 motor block per leaf.
- Durable: arms and output pinion made of high-strength steel.
- Safety: obstacle detection.
- Maintenance-free product.
- Plug and Play installation (learning programme).
- Compliant with NF P26-341 standard.
- Product designed and manufactured in our workshops in France, individually tested and guaranteed for 2 years.
Kit contents:
- 10 motor blocks: white arm and rail (RAL 9010).
- 5 white cover casing sets (RAL 9010).
- 5 4-button remote controls (2 groups).
- 5 installation templates + fixing screws.
Other colours available as options: please contact us by email.
Options:
SU9300: stainless steel hinge for linked leaves
SU9309: programmable radio timer
SU9310: programmable radio repeater (to double the range)
SU9311: programmable radio remote control
SU9313: programmable radio switch
C0007105BR: 1.2 m length guide rail (ideal for louvered shutters)
Other W1, W2 or W3 arms (see charts)
Electromagnetic or electromechanical locking
All spare parts for SLID'UP WINEO
Technical documentation
Diagnosis
Video presentation
Made for you
From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.
Brand
Data Sheet
| Use / Application |
Exterior door Swinging shutter |
|---|---|
| Arm and track colour | White |
| B2C warranty | 2 years |
| Can be recut | Oui |
| Color housing arm | White |
| Colour | White |
| Control type | Radio |
| For shutter or leaf | 2 leaves |
| Housing color | White |
| Limit switch type | Dynamic (stop on obstable) |
| Maximum bay width | 1500 mm |
| Max leaf surface | 1.6 m² |
| Maximum weight / leaf | 50 kg |
| Maximum width / leaf | 80 cm |
| Minimum bay width | 800 mm |
| Motor type | Strenght steel |
| Mounting type | Lintel mounting |
| Operating temperature | -20°C to 60°C |
| Made in | France |
| Panel depth | 150 mm min |
| Product family | Motorization kit |
| Range | SLID'UP WINEO |
| Supply voltage | 230 V CA |
| Brand | SLID'UP by Mantion |
