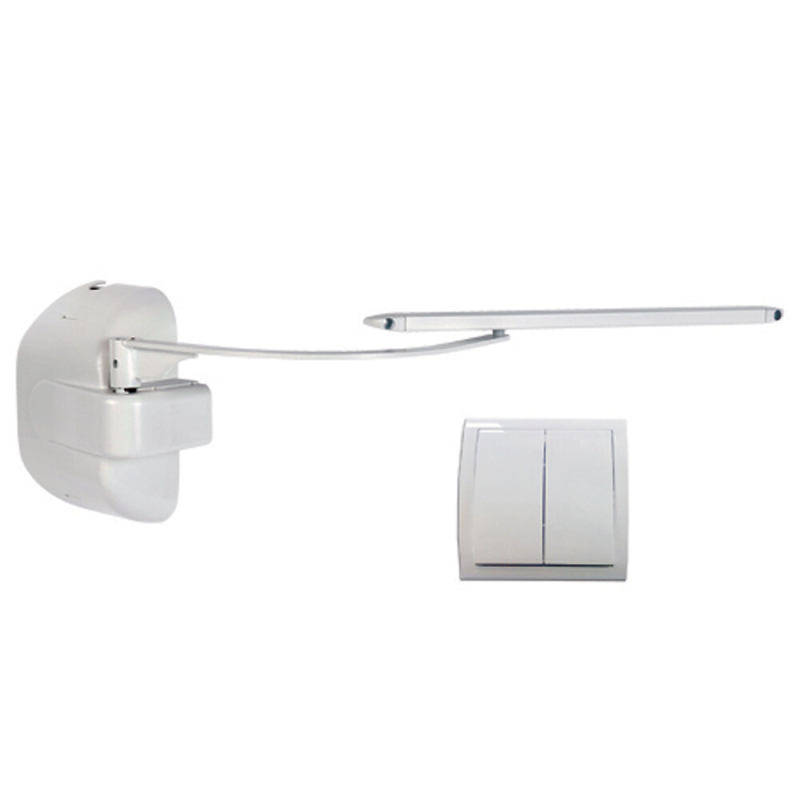

Motorisation for single right leaf shutter SLID'UP BRA-VO wired
Reference : W0002450
- Surface-mounted motorisation for hinged shutter
- Wired control with switch
- For 1 right leaf (viewed from outside)
- Maximum leaf weight: 50 kg
- Made in France
- Warranty: 2 years
- Quantity: 1
In stock
Delivery in 3 to 5 days
€564.92
Tax included
€367.20
Tax included
Ou 3x 122.40 € sans frais
Description
Warning: Shutter not included in the kit.
Right single-leaf shutter motorisation BRA-VO wired 230V.
Motorisation for surface mounting, ideal for curved or rounded lintels.
The BRA-VO motorisations fit all types of hinged shutters (wood, PVC, aluminium...), whether new or for renovation.
For more details, please consult the installation manual.
Specifications to respect:
- Leaf width: 40 cm min / 80 cm max
- Maximum leaf surface: 1.6 m²
- Maximum leaf weight: 50 kg
- Reveal width: 15 cm
- Maximum distance from hinge axis to shutter edge: 40 mm
Description:
- Complete kit, ready to install: the BRA-VO shutter motorisation is quick and easy to fit.
- One press and all your shutters close.
- Safe: obstacle detection according to NF 26-341 standard. In case of obstacle, the shutter returns to its initial position.
- Ease of use: control the opening of all or some of your shutters. Possibility to stop the shutters in a slightly open position.
- New or renovation: fits all types of hinged shutters including linked leaves with our accessory compas multivantaux W0000400.
- Product designed and manufactured in our workshops in France, individually tested and guaranteed for 2 years.
Kit contents:
- 1 right motor (viewed from outside) + electronics
- 1 arm
- 1 rail + end caps
- 1 cover + caps
- 1 set of screws (screws, plugs, sleeve, spacer)
- 1 2-button switch
- 3 metres of 220/230V power cable
Other colours available as an option: contact us by email.
Options:
SU9300: stainless steel compas for linked leaves
SU9315: wired switch
C0007105BR: 1.2 m length guide rail (ideal for louvered shutters)
Other white or black arms
Electromagnetic or electromechanical lock
All spare parts for SLID'UP BRA-VO
Right single-leaf shutter motorisation BRA-VO wired 230V.
Motorisation for surface mounting, ideal for curved or rounded lintels.
The BRA-VO motorisations fit all types of hinged shutters (wood, PVC, aluminium...), whether new or for renovation.
For more details, please consult the installation manual.
Specifications to respect:
- Leaf width: 40 cm min / 80 cm max
- Maximum leaf surface: 1.6 m²
- Maximum leaf weight: 50 kg
- Reveal width: 15 cm
- Maximum distance from hinge axis to shutter edge: 40 mm
Description:
- Complete kit, ready to install: the BRA-VO shutter motorisation is quick and easy to fit.
- One press and all your shutters close.
- Safe: obstacle detection according to NF 26-341 standard. In case of obstacle, the shutter returns to its initial position.
- Ease of use: control the opening of all or some of your shutters. Possibility to stop the shutters in a slightly open position.
- New or renovation: fits all types of hinged shutters including linked leaves with our accessory compas multivantaux W0000400.
- Product designed and manufactured in our workshops in France, individually tested and guaranteed for 2 years.
Kit contents:
- 1 right motor (viewed from outside) + electronics
- 1 arm
- 1 rail + end caps
- 1 cover + caps
- 1 set of screws (screws, plugs, sleeve, spacer)
- 1 2-button switch
- 3 metres of 220/230V power cable
Other colours available as an option: contact us by email.
Options:
SU9300: stainless steel compas for linked leaves
SU9315: wired switch
C0007105BR: 1.2 m length guide rail (ideal for louvered shutters)
Other white or black arms
Electromagnetic or electromechanical lock
All spare parts for SLID'UP BRA-VO
Technical documentation
Installation instructions
Video presentation
Made for you
From design to distribution, SLID'UP by Mantion is the French expert in sliding systems and home automation solutions.
Brand
Data Sheet
| Use / Application | Swinging shutter |
|---|---|
| B2C warranty | 2 years |
| Activity | Doors |
| Closing time | 16 s |
| Colour | White |
| Control type | Wired |
| For shutter or leaf | 1 right |
| Limit switch type | Dynamic (stop on obstable) |
| Maximum leaf thickness | 40 mm (1") |
| Maximum power | 100 W |
| Max leaf surface | 1.6 m² |
| Maximum weight / leaf | 50 kg |
| Maximum width / leaf | 80 cm |
| Motor position | On the right |
| Motor torque | 25 Nm |
| Motor type | Motoréducteur à courant continu |
| Motor voltage | 24 V CC |
| Mounting type | Wall mounting |
| Number of leaves | 1 right |
| Number of motors | 1 |
| Number of motors / leaf | 1 |
| Opening time | 16 s |
| Operating temperature | -20°C to 60°C |
| Made in | France |
| Product family | Motorization kit |
| Protection class | IP54 |
| Range | SLID'UP BRA-VO |
| Supply voltage | 230 V CA |
| Use | Exterior |
| Brand | SLID'UP by Mantion |
